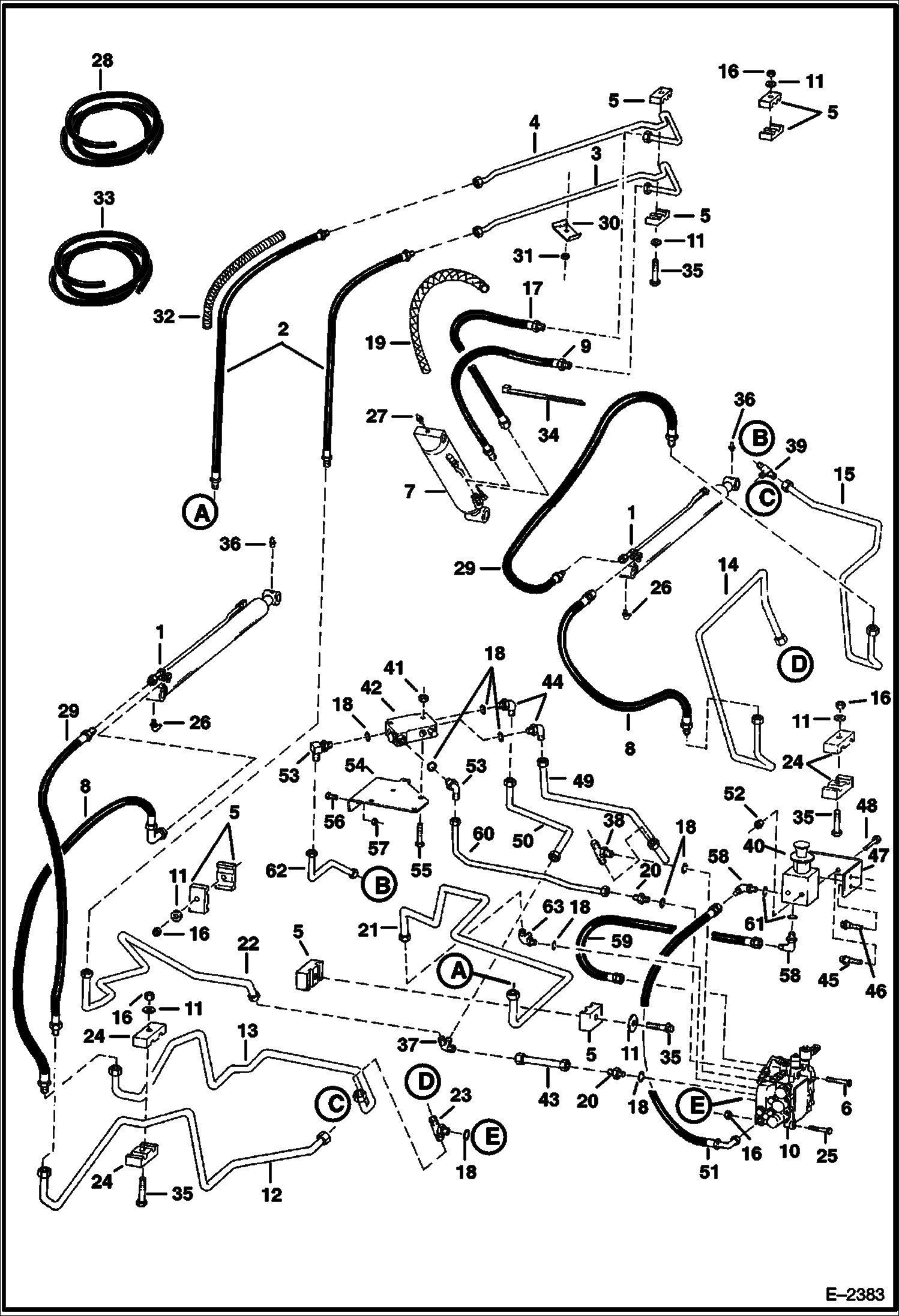

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (W/ Bucket Positioning Valve) (S/N 5122 62999 & Bel, 5124 51999 & Bel, 5126 20001 & Abv) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT

2

6539418

HOSE W/conduit - Was 6713338 - A

3

6712981

TUBE

4

6712980

TUBE

5

6701893

CLAMP

6

17C540

BOLT

7

CYLINDER TILT

8

6577671

HOSE, HYD ASSY

9

6704335

HOSE

10

VALVE

11

872229

WASHER

12

6716628

TUBE lift

13

6716627

TUBE lift

14

6712706

TUBE lift

15

6712705

TUBE lift

16

85D5

NUT 5

17

6704336

HOSE

18

99K10

O'RING tapered boss face

18

79K10

O RING 10 flat boss face

19

COVER NLA - 18''(457,2 mm) long - Order Ref. 28

20

ADAPTER NLA - W/Ref. 18 - tapered boss face - Was 15KV00007B - A

20

97K10

O-RING 10 flared end

20

15KB1010

FITTING, HYD CONNECTOR W/Ref. 18 - flat boss face

21

6712703

TUBE tilt

22

6712704

TUBE tilt

23

TEE NLA - W/Ref. 18 - flat boss face W/flared end O-rings - Was 6715656 - A

23

97K10

O-RING 10 flared end

23

19KB0810

FITTING, HYD TEE W/Ref. 18 - flat boss face

23

ELBOW NLA - W/ 1.0'' nut - W/Ref. 18 - flat boss face - Was 6727639 - A

23

97K10

O-RING 10 flared end

23

6814531

ELBOW W/ 1.0625' nut - W/Ref. 18 - flat boss face

24

6701892

CLAMP

25

17C532

BOLT 5

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

29

6718954

HOSE Was 6578808 - A

30

6502203

CLAMP

31

95D6

NUT

32

COVER NLA - 30''(762 mm) long - Order Ref. 33

33

6643249

CONDUIT 1'' I.D. conduit - bulk - Sold Per Foot

34

6610510

TIE

35

84G3728

BOLT

36

12H15

FITTING, GREASE 5

37

6705070

TEE W/Ref. 18

38

TEE NLA - W/Ref. 18 - tapered boss face - Was 19KN00007B - A

38

97K10

O-RING 10 flared end

38

19KB1010

FITTING, HYD TEE W/Ref. 18 - flat boss face

39

TEE NLA - W/flared end O-rings - Was 10KN00006B - A

39

97K8

O-RING flared end

39

10K6

FITTING

40

VALVE See Illustration MANUAL LIFT RELEASE VALVE/ PE1547 MANUAL LIFT RELEASE

41

57D5

NUT

42

VALVE NLA - Order 6673959 valve - If loader is not equipped with an on/off sweitch, also order 6647784 plug, 79K8 O-ring, 6647785 spring & 6647783 load check - Was 6666341 - A

43

6710573

TUBE tilt

44

ELBOW NLA - W/Ref. 18 - tapered boss face - Was 17KV00007B - A

44

97K10

O-RING 10 flared end

44

17KB1010

FITTING, HYD ELBOW W/Ref. 18 - flat boss face

45

84G3716

SCREW 5

46

84G3712

BOLT 5

47

6711280

MOUNT

48

17C428

BOLT

49

6710583

TUBE

50

6704839

TUBE

51

6578804

HOSE

52

83D4

NUT 10

53

17KB0810

FITTING, HYD ELBOW W/Ref. 18 - flat boss face - Was 6715716 - A

54

6704833

BRACKET

55

35C536

BOLT

56

35C412

BOLT

57

57D4

NUT

58

ELBOW NLA - W/Ref. 61 - tapered boss face - Was 17KV00005B - A

58

97K6

O RING flared end

58

17KB0606

FITTING W/Ref. 61 - flat boss face

59

6535451

HOSE

60

6710584

TUBE

61

99K6

O RING tapered boss face

61

79K6

O RING 10 flat boss face

62

6705068

TUBE

63

6715184

ADAPTER W/Ref. 18

63

97K8

O-RING flared end
