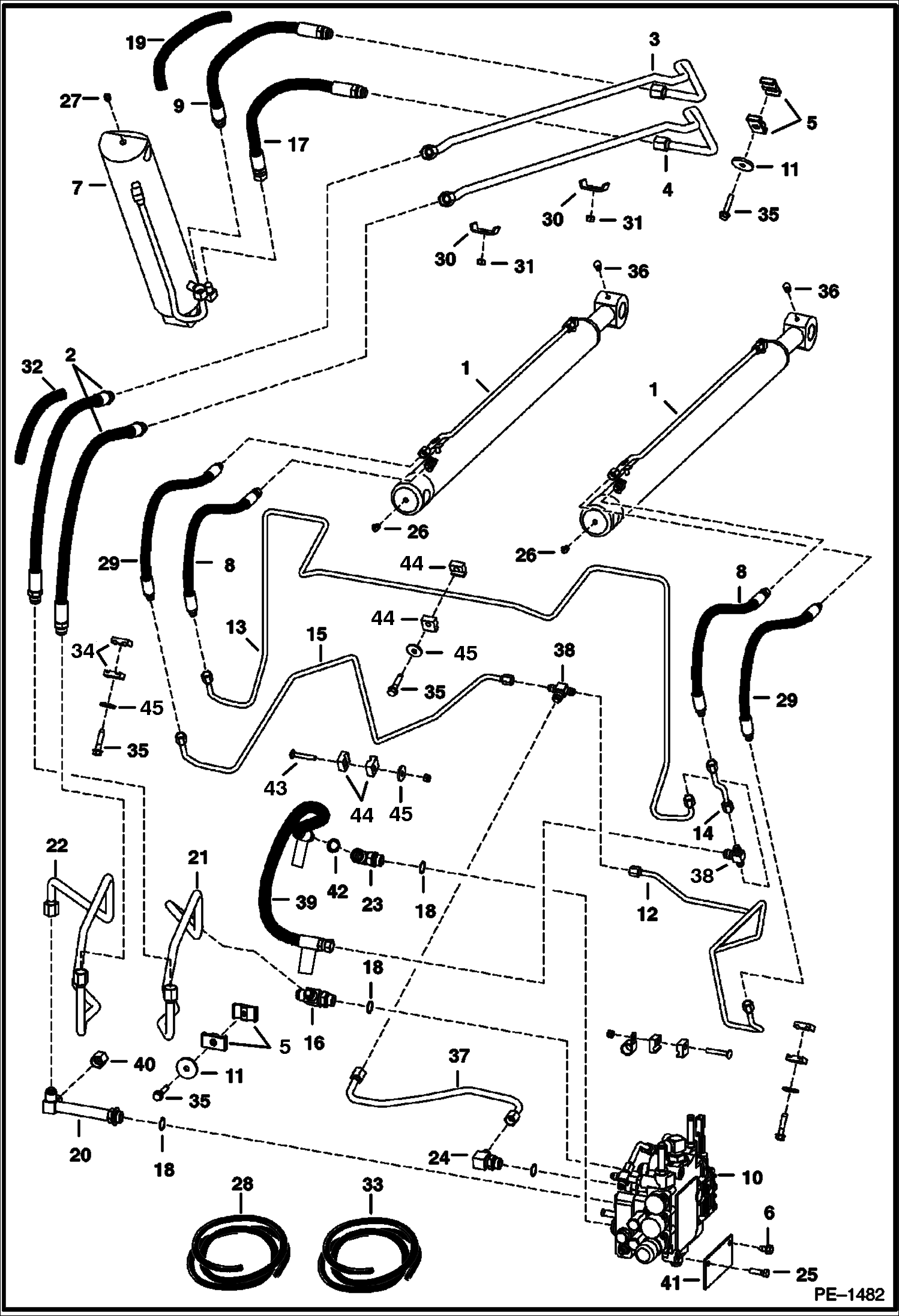

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (S/N 5122 63000 & Abv, 5124 52000 & Abv) HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT
2
6539418
HOSE W/conduit - Was 6713338 - A
3
6712981
TUBE
3
6733094
TUBE connects to base end of cylinder
4
6712980
TUBE
4
6733095
TUBE connects to rod end of cylinder
5
6701893
CLAMP
6
17C620
BOLT
7
CYLINDER TILT
8
6727686
HOSE
9
6704335
HOSE
10
VALVE
11
872229
WASHER
12
6729911
TUBE lift
13
6730916
TUBE lift
14
6730917
TUBE lift
15
6729913
TUBE lift
16
ELBOW NLA - W/Ref. 18 - tapered boss face - Was 21KN00007B - A
16
97K10
O-RING 10 flared end
16
21KB1010
FITTING, HYD TEE W/Ref. 18 - flat boss face
17
6704336
HOSE
18
99K10
O'RING tapered boss face
19
COVER NLA - 18''(457,2 mm) long - Order Ref. 28
20
6730142
TEE W/Ref. 18 - check boss face to determine correct replacement O-ring
20
97K10
O-RING 10 flared end
21
6712703
TUBE tilt
22
6729910
TUBE tilt
23
ELBOW NLA - W/ 1.0'' nut - W/Ref. 18 - tapered boss face - Was 6727639 - A
23
97K10
O-RING 10 flared end
23
6814531
ELBOW W/ 1.0625' nut - W/Ref. 18 - flat boss face
24
17KB0810
FITTING, HYD ELBOW W/Ref. 18 - flat boss face - Was 6715716 - A
25
84G3710
SCREW
28
6656155
HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID
29
6727687
HOSE Was 6578808 - A
30
6502203
CLAMP
31
95D6
NUT
32
COVER NLA - 30''(762 mm) long - Order Ref. 33
33
6643249
CONDUIT 1'' (25,4 mm) ID - bulk - sold per foot
34
6726277
CLAMP
35
84G3728
BOLT
37
6727630
TUBE lift
38
6727659
TEE
38
97K8
O-RING flared end
39
6730915
HOSE W/Ref. 42 - 39.25'' (996,95 mm) long
39
6727705
HOSE available only as an assembly W/two danger decals installed
39
6809511
DECAL, DANGER
40
36K7
FITTING
41
6727837
COVER
42
79K8
O RING 10
43
37C532
BOLT
44
6727707
CLAMP
45
619021
WASHER, 5
