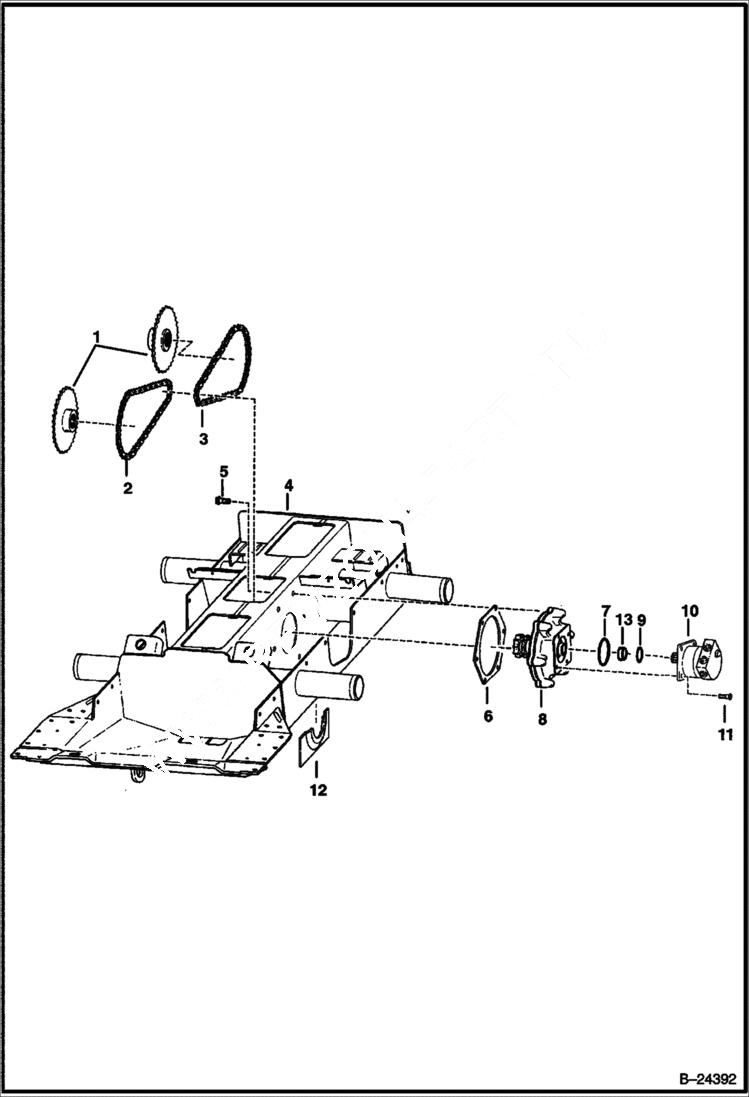

Запчасти Bobcat 700s DRIVE TRAIN DRIVE TRAIN

1

7134137

SPROCKET Was 6577204 - A

2

CHAIN NLA - 68 pitch - hour glass shape link - Diamond - Was 6703915 - A

2

CHAIN NLA - 68 pitch - oval shape link - Diamond - Was 6731217 - A

2

6689652

CHAIN, DRIVE 68 pitch - hour glass shape link - Tsubaki

2

6510171

LINK conn. - hour glass shape - Diamond

2

6675332

LINK conn. - oval shape - Diamond

2

6690709

LINK conn. - hour glass shape - Tsubaki

3

CHAIN NLA - 62 pitch - hour glass shape link - Diamond - Was 6579127 - A

3

CHAIN NLA - 62 pitch - oval shape link - Diamond - Was 6731218 - A

3

6689651

CHAIN, DRIVEX 62 pitch - hour glass shape link - Tsubaki

3

6510171

LINK conn. - hour glass shape - Diamond

3

6675332

LINK conn. - oval shape - Diamond

3

6690709

LINK conn. - hour glass shape - Tsubaki

4

6712826

CHAINCASE - A

5

35C1032

BOLT

6

6704878

GASKET install W/rib toward chaincase

7

25K30508

O-RING, 10

8

MOUNT ASSY. See Illustration MOTOR CARRIER/ MC1937 DRIVE MOTOR

9

6664815

SEAL, OIL supplied W/motor

10

MOTOR KIT See Illustration HYDROSTATIC MOTOR/ C3431 W/Ref. 9

11

93G824

BOLT Was 73G000824B - B

12

6707647

BRACE weld-on

13

6735505

SPACER hardened - .25'' thick x 1.25'' O.D.

13

6735505

SPACER
