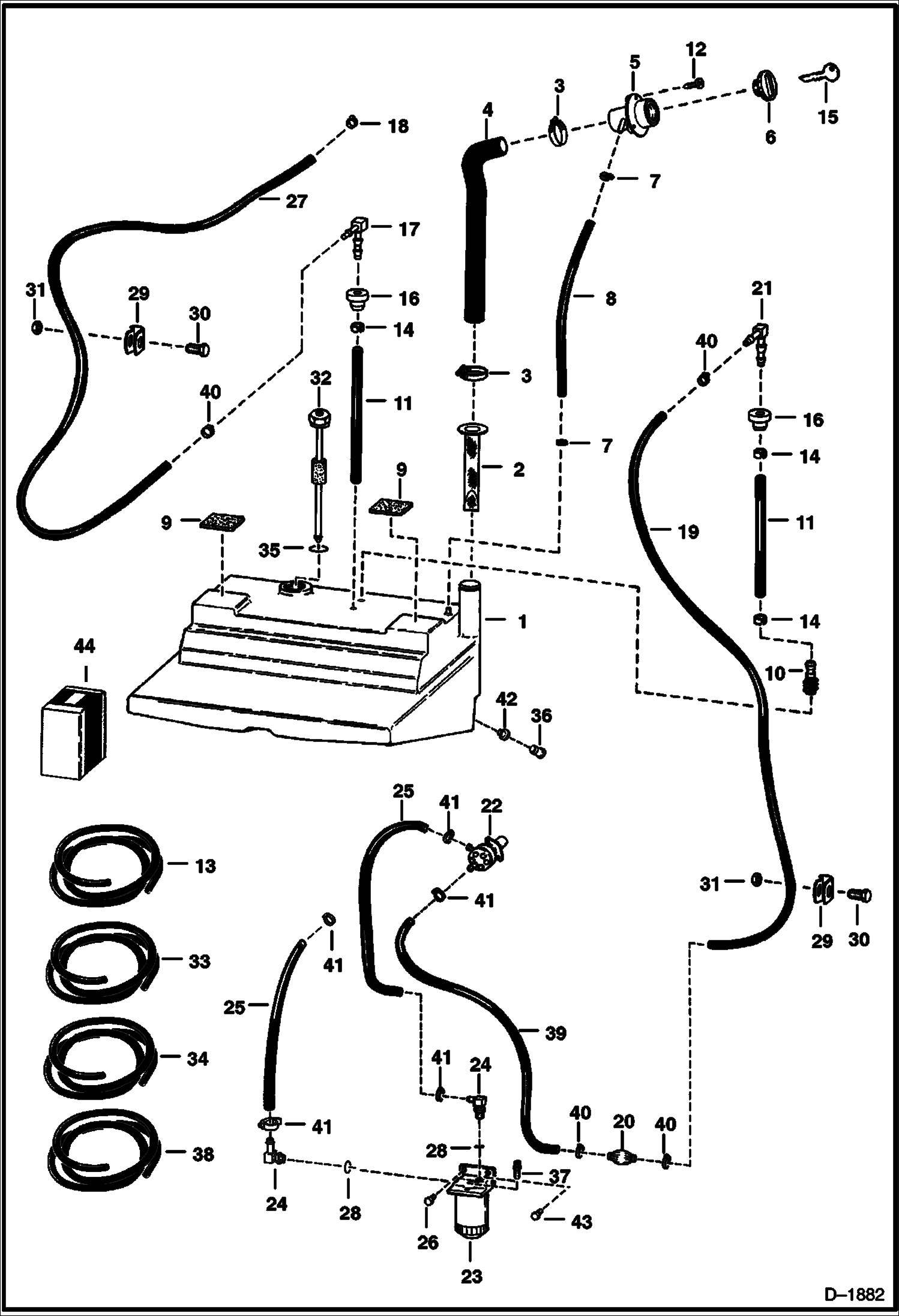

Запчасти Bobcat 700s FUEL SYSTEM MAIN FRAME

1

6736659

TANK, FUEL Was 6717572 - A

2

7120881

SCREEN, FILLER Was 6569219 - A

3

5HM58

CLAMP constant tension

4

6710653

HOSE

4

6710653

HOSE

4

6710653

HOSE

4

6732908

HOSE

4

6732908

HOSE

5

6701449

FILLER TUBE

6

6661114

CAP. DIESEL green

6

CAP NLA - locking- W/Ref. 15 - Code GC020

6

6661696

CAP, FUEL LOCKING locking - W/Ref. 15 - Code PK510

7

5HM24

CLAMP constant tension

8

HOSE NLA - 21.5''(546,1 mm) long - Order Ref. 13

9

6578278

PAD self adhesive one side

10

6650239

SCREEN, FUEL PICKUP

11

HOSE NLA - 8.5''-9.5''(215,9 mm - 241,3 mm) long - Order 6729853 Hose - Was 6576386 - A

11

HOSE NLA - 9.75''(247,7 mm) long - Was 6729853 - A

11

6729853

HOSE 10.25''(260,4 mm) long

12

6706517

SCREW

13

6578172

HOSE bulk - sold per foot

14

6661213

RING, COMPRESSION .324'' (8.23 mm) ID

15

6654374

KEY Code GC020

15

6587458

KEY Code PK510

16

6553411

BUSHING 0.38'' ID

17

7101291

ELBOW Was 6681462 - A

18

42HS04

CLAMP, HOSE Was 6515575 - B

19

HOSE NLA - 35''(889,0 mm) long - Order Ref. 33

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

21

7101291

ELBOW barbed on both ends - Was 6661382 - A

22

6655216

FUEL PUMP See Illustration FUEL & INJECTION PUMP/ B13157

23

6667353

FILTER ASSY W/Ref. 37

23

6667352

FILTER, FUEL W/SEPARATOR 12

23

72F1

FITTING

24

6715183

ELBOW W/Ref. 28 - check boss face to determine correct replacement O-ring

25

HOSE NLA - 13''(330,2mm)long- Order Ref. 34 -end of hose connects to Ref. 12 on Page 271

26

17C512

BOLT 5 5/16 x .75''

26

17C516

BOLT Use W/Ref. 35 on Page 227 W/threaded thru hole

26

84G3112

BOLT 5 Use W/Ref. 35 on Page 227 W/threaded thru hole

27

HOSE NLA - 53'' (1346,2 mm) long - Order Ref. 38

28

99K5

O-RING tapered boss face

28

79K5

O RING 10 flat boss face

29

30H35

CLAMP 10 Was 30H000036B - B

30

17C612

BOLT 5

31

61D6

NUT 5

32

7179839

SENSOR FUEL See Illustration ENGINE ELECTRICAL CIRCUITRY/ PE1021 W/Ref. 35 - Was 6680438 - A

33

6577821

HOSE bulk - sold per foot

34

6577822

HOSE bulk - sold per foot

35

6717579

GASKET

36

6599645

PLUG, STEEL fuel drain - .5'' O.D.

36

7203382

PLUG, STEEL fuel drain - .75'' shoulder - Was 6717401 - A

37

6658180

PLUG, BLEED

38

6578169

HOSE bulk - sold per foot - 0.19'' ID

39

HOSE NLA - 18''(457,2 mm)long - Order Ref. 33

40

5HM13

CLAMP constant tension

41

5HM14

CLAMP constant tension

42

6717402

BUSHING 0.54'' ID

43

84G3116

SCREW 5/16 x 1''
