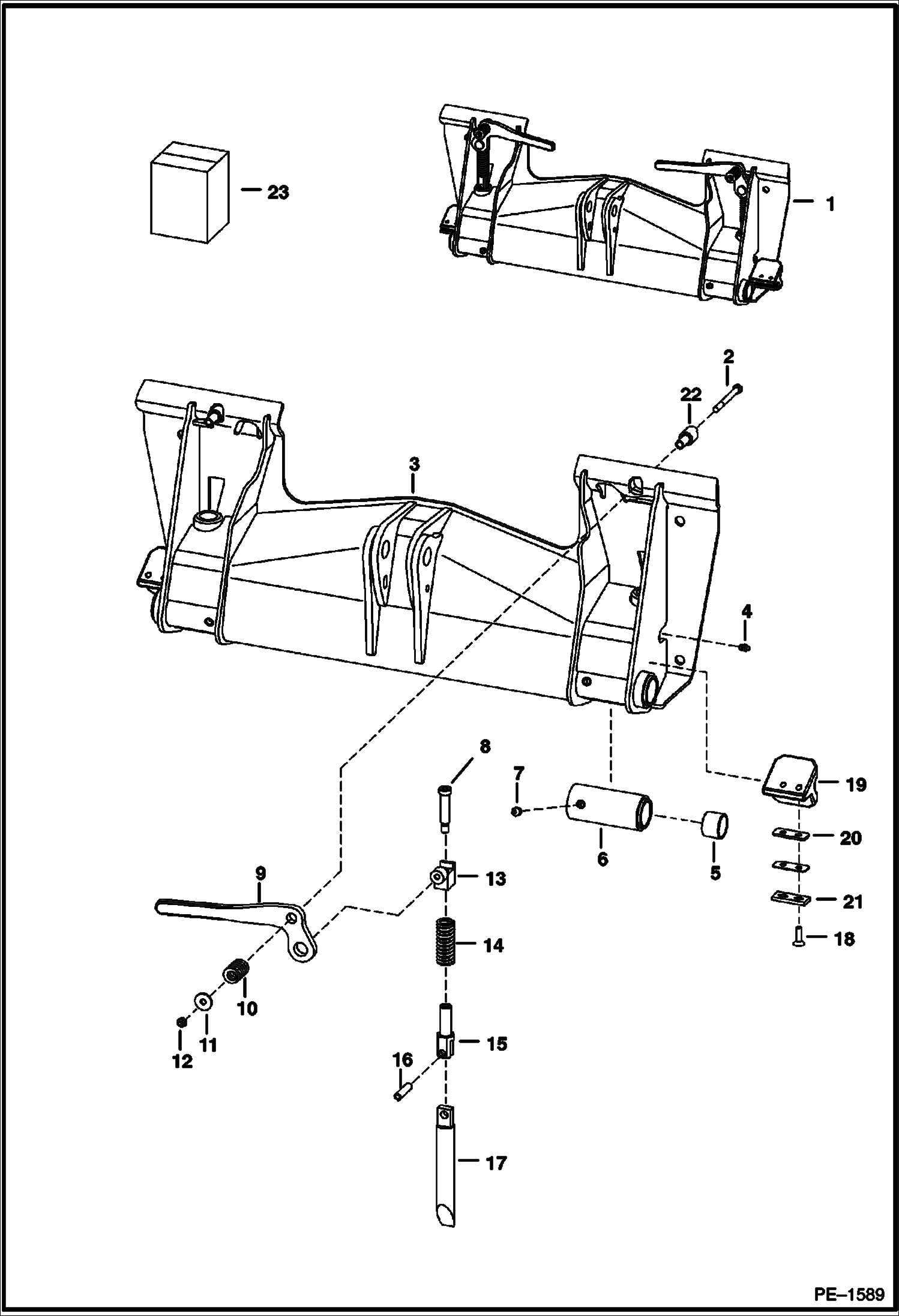

Запчасти Bobcat 700s BOB-TACH MAIN FRAME

1

6709215

BOB-TACH Was SALES - D

2

17C660

BOLT

3

FRAME NLA

4

10H35

FITTING, GREASE 10

5

6730997

BUSHING, WELD-ON Press Fit - Was 711273B - A

6

BUSHING NLA - weld-on - W/Ref. 5 - Order 6731979 Bushing & Ref.5 - Was 6731155 - A

6

6731979

BUSHING weld on - Also Order Ref. 5

7

743332

FITTING, GREASE 5

8

6728473

BOLT, SHOULDER pre-applied thread locker - Was 38C1036 - A

9

6702904

LEVER, BOB-TACH RH

9

6702903

LEVER, BOB-TACH LH

10

6713040

SPRING

11

619021

WASHER, 5

12

85D6

NUT, 5

13

6714576

PIVOT .75'' (19,05 mm) long pin - not in kit

13

6731119

PIVOT, WEDGE 50 mm (1.95'') long pin - in kit

14

6578253

SPRING, COMPRESSION Was 6562018 - A

15

6704248

PIVOT, WEDGE

16

14J5032

PIN, STRAIGHT

17

6737191

WEDGE Was 6704242 - A

18

9G620

BOLT 5

19

6704600

STOP RH - weld on

19

6704601

STOP LH - weld on

20

6707514

SHIM 0.06

20

6579106

SHIM 0.125

21

6579104

SHIM 0.25

22

6702958

BUSHING, WELD-ON

23

6724775

LEVER KIT RH - Bob-Tach - Ref. 2 & 8-17

23

6724776

LEVER KIT LH - Bob-Tach - Ref. 2 & 8-17
