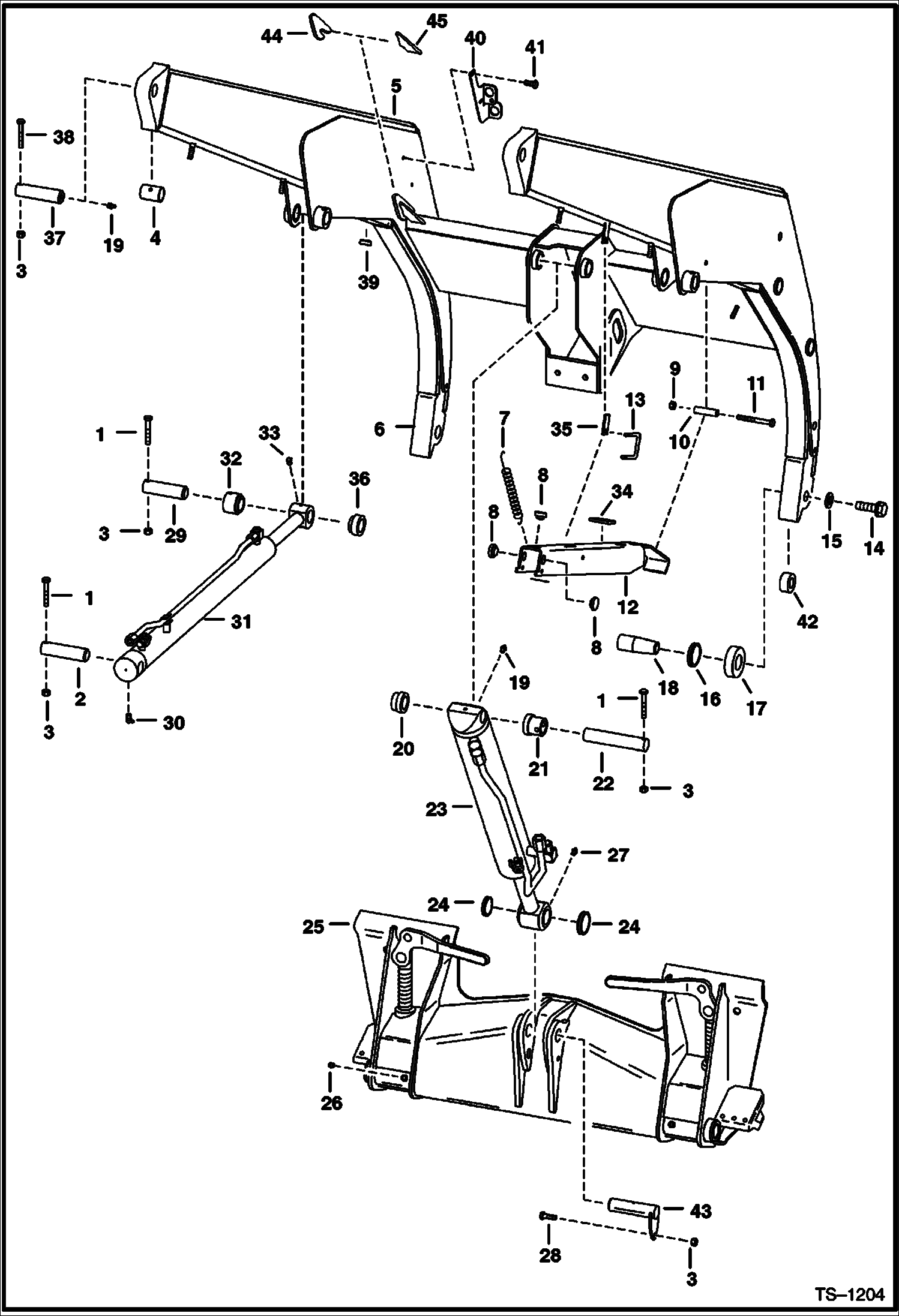

Запчасти Bobcat 700s LIFT ARMS & BOBTACH MAIN FRAME

1

17C640

BOLT 5

2

6702935

PIN, PIVOT

3

85D6

NUT, 5

4

6703448

BUSHING Wear

5

6708752

LIFT ARM

6

ARM NSS - lower R.H. - weld on

6

ARM NSS - lower L.H. - weld on

7

6579072

SPRING

8

6519178

BUMPER rubber

9

61D6

NUT 5

10

6700533

SPACER

11

17C656

BOLT

12

6710166

LIFT ARM STOP

13

6714810

PIN retainer

14

31C1272

BOLT 4.5 in. (114,3 mm) long - for Ref. 18 (6707180 pin) & Ref. 42 (6717666 bushing)

15

6576033

WASHER .15'' thickness x 1.5'' O.D.

15

6718723

WASHER .25'' thickness x 1.675 O.D. - Use W/Ref. 42 (6717666 bushing) & Ref. 18 (6707180 pin)

16

6651709

SEAL

17

6700463

CUP, SEAL seal

18

6707180

PIN, PIVOT W/.75 in. threaded hole - A

19

10H25

FITTING, GREASE 5

20

6703363

BUSHING weld On

21

6737623

BUSHING weld on - Was 6704287 - A

22

6704288

PIN, PIVOT

23

CYLINDER TILT

24

6654117

SEAL, OIL 51 mm (2'') OD

24

225855

SEAL, OIL 10 38 mm (1.5'') OD

25

BOB-TACH See Illustration BOB-TACH/ PE1589

26

743332

FITTING, GREASE 5

27

10H35

FITTING, GREASE 10

28

17C620

BOLT

29

6718789

PIN Was 6547593 - A

30

11H15

GREASE FITTING

31

CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT

32

6555987

BUSHING weld on

33

12H15

FITTING, GREASE 5

34

6704436

PAD foam - self adhesive

35

6705091

TAB weld on

36

6703616

BUSHING

37

6703572

PIN, PIVOT

38

17C664

BOLT

39

6704403

STOP weld on

40

6705700

MOUNT

41

84G3112

BOLT 5

42

6717666

BUSHING, WELD-ON weld-on - W/tapered hole - 38,1 mm (1.50'') - 63,5 mm (2.5'') long - Also Order Ref. 14 (31C1272 bolt)

43

6716601

PIN, PIVOT W/O grease zerk hole

44

6727544

PLATE weld on

45

6727545

PLATE weld on
