Запчасти Bobcat 700s REAR AUXILIARY (High Flow Hydraulics) (W/ FF Couplers) ACCESSORIES & OPTIONS

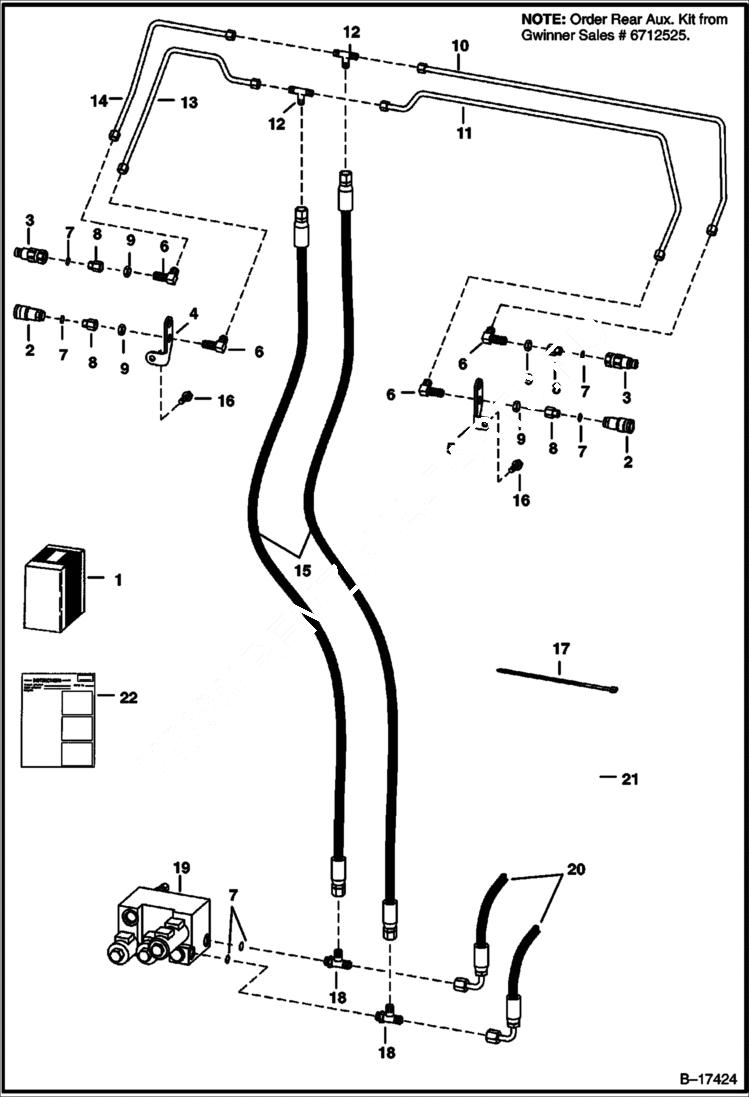

Схема запчастей Bobcat 700s - REAR AUXILIARY (High Flow Hydraulics) (W/ FF Couplers) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT SALES - Ref. 2-20 & 22 - SEE NOTE

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6707822

MOUNT

5

6707823

MOUNT

6

88F5

ELBOW W/Ref. 7

7

79K6

O RING 10 flat boss face

7

99K6

O RING tapered boss face

8

6706633

ADAPTER W/Ref. 7 - check boss face to determine correct replacement o-ring

9

86F5

NUT

10

6707872

TUBE

11

6707871

TUBE

12

10K5

TEE

13

6707869

TUBE

14

6707870

TUBE

15

6719809

HOSE Was 6708831 - B

16

84G3712

BOLT 5

17

6624289

STRAP, TIE

18

21K5

TEE W/Ref. 7 - flat boss face - Was 17KV00003B - A

18

TEE NLA - W/Ref. 7 - tapered boss face - Was 21KV00005B - A

18

97K6

O RING flared end

18

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 7 - flat boss face

19

6662695

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1144 NOT IN KIT

20

HOSE See Illustration HIGH FLOW HYDRAULICS/ TS1293 EXISTING HOSES - REF. 58

21

6710435

HARNESS Use W/early design of 6718888 Harness - See Ref. 52 on Ill. E2456

22

6724385

INSTRUCTIONS

Выбрано товаров: 27
