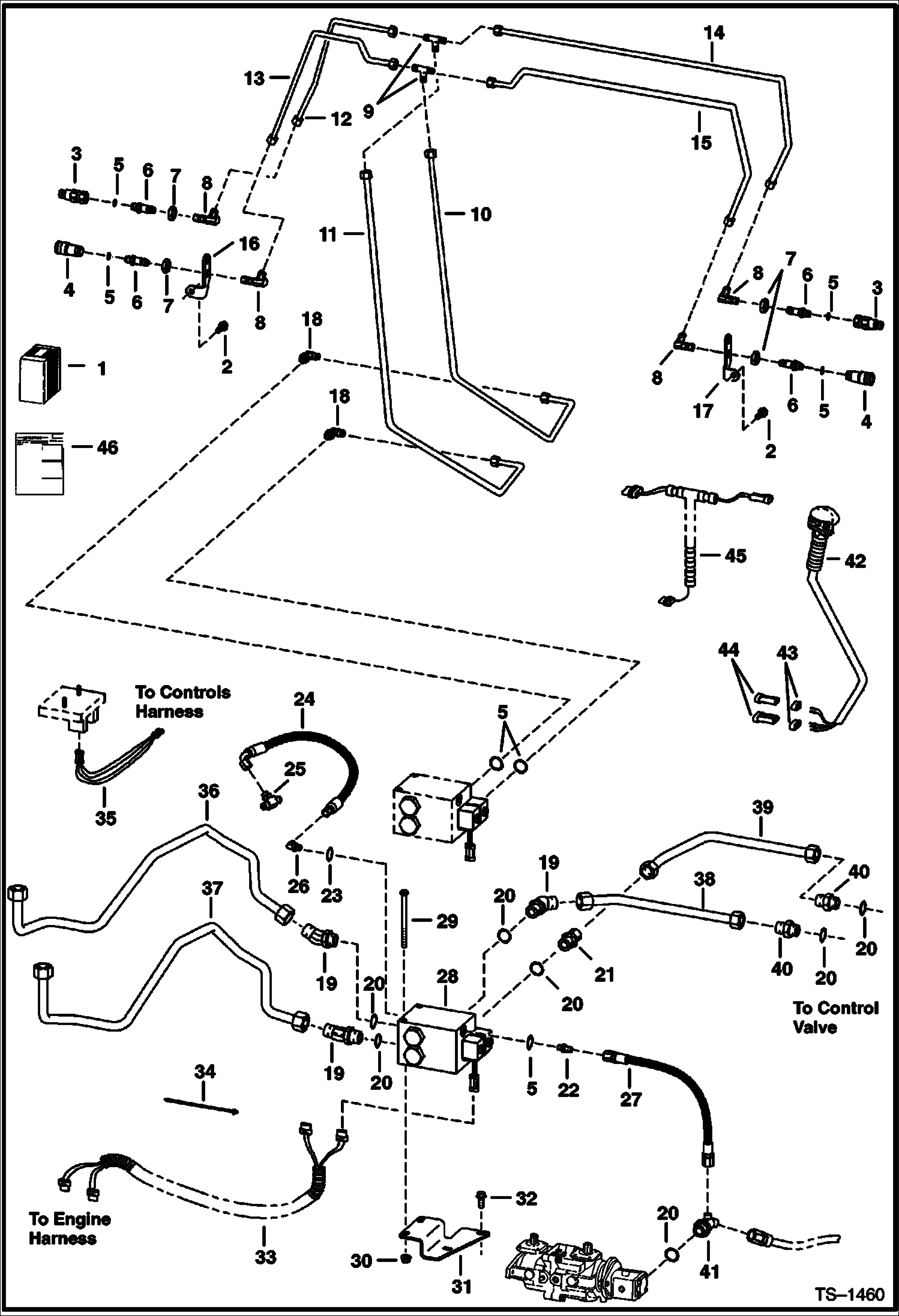

Запчасти Bobcat 700s REAR AUXILIARY (W/FF Couplers) (S/N 5122 20298 & Abv, 5124 40721 & Abv, 5126 12258 & Abv) ACCESSORIES & OPTIONS

1

6713532

KIT Ref. 2-39 & 43 - 48 - Was SALES - D

1

KIT NLA - Export-Ref. 2-39 & 48 - Was Sales - D

2

84G3712

BOLT 5

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6667803

COUPLER, FF FEMALE

5

79K6

O RING 10 flat boss face

5

99K6

O RING tapered boss face

6

6706633

ADAPTER W/Ref. 5 - check boss face to determine correct replacement o-ring

7

86F5

NUT

8

88F5

ELBOW W/Ref 5

9

10K5

TEE W/O O-rings

9

TEE NLA - W/ O-rings - Was 10KN00005B - A

9

97K6

O RING flared end

10

6710323

TUBE

11

6710322

TUBE

12

6707870

TUBE

13

6707869

TUBE

14

6707872

TUBE

15

6707871

TUBE

16

6707822

MOUNT

17

6707823

MOUNT

18

17K5

ELBOW W/Ref. 5 - flat boss face

18

ELBOW NLA - W/Ref. 5 - tapered boss face - Was 17KV00005B - A

18

97K6

O RING flared end

18

17KB0606

FITTING W/Ref. 5 - flat boss face

19

18K8

FTG W/Ref. 20 - flat boss face

19

18KB1212

FITTING, HYD ELBOW W/Ref. 20 - tapered boss face - Was 18KV00008B - A

19

97K12

O'RING flared end

20

79K12

O RING 10 flat boss face

20

99K12

O RING tapered boss face

21

15K8

FITTING W/Ref. 20

22

15K5

FITTING W/Ref. 5 - flat boss face

22

ADAPTER NLA - W/Ref. 5 - tapered boss face - Was 15KV00005B - A

22

97K6

O RING flared end

22

15KB0606

FITTING, HYD CONNECTOR W/Ref. 5 - flat boss face

23

79K4

O RING 10

24

6706786

HOSE

25

6578209

TEE cross

26

17K3

ELBOW W/Ref. 23 - flat boss face

26

ELBOW NLA - W/Ref. 23 - tapered boss face - Was 17KV00003B - A

26

97K4

O'RING flared end

26

17KB0404

FTG HYD ELBOW 90 W/Ref. 23 - flat boss face

27

6713060

HOSE

27

6715330

HOSE Export

28

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

29

17C680

BOLT

30

83D6

NUT 5

31

6706548

MOUNT

32

84G3716

SCREW 5

33

6710870

HARNESS

34

6610510

TIE

35

6704114

HARNESS

36

6707889

TUBE connects to Ref. 1 on Ill. B17196

37

6710871

TUBE connects to Ref. 1 on Ill. B17196

38

6713490

TUBE

39

6713489

TUBE

40

ADAPTER existing - W/Ref. 20

41

6706144

CONNECTOR cross - W/Ref. 20 - connects to Ref. 29 on Ill. E2218 & connects to Ref. 27 on Ill. E2339 - check boss face to determine correct replacement o-ring

41

6700599

ELBOW Export

42

6680414

HANDLE ASSY. Was 6705921 - A

42

6640690

PIN male

42

6641176

SEAL

43

6641180

LOCK Use W/ 2-pin connector

43

6640700

LOCK 3-pin

44

6641179

CONNECTOR 2-pin

44

6640699

CONNECTOR 3-pin

45

6710435

HARNESS

46

6724418

INSTRUCTIONS
