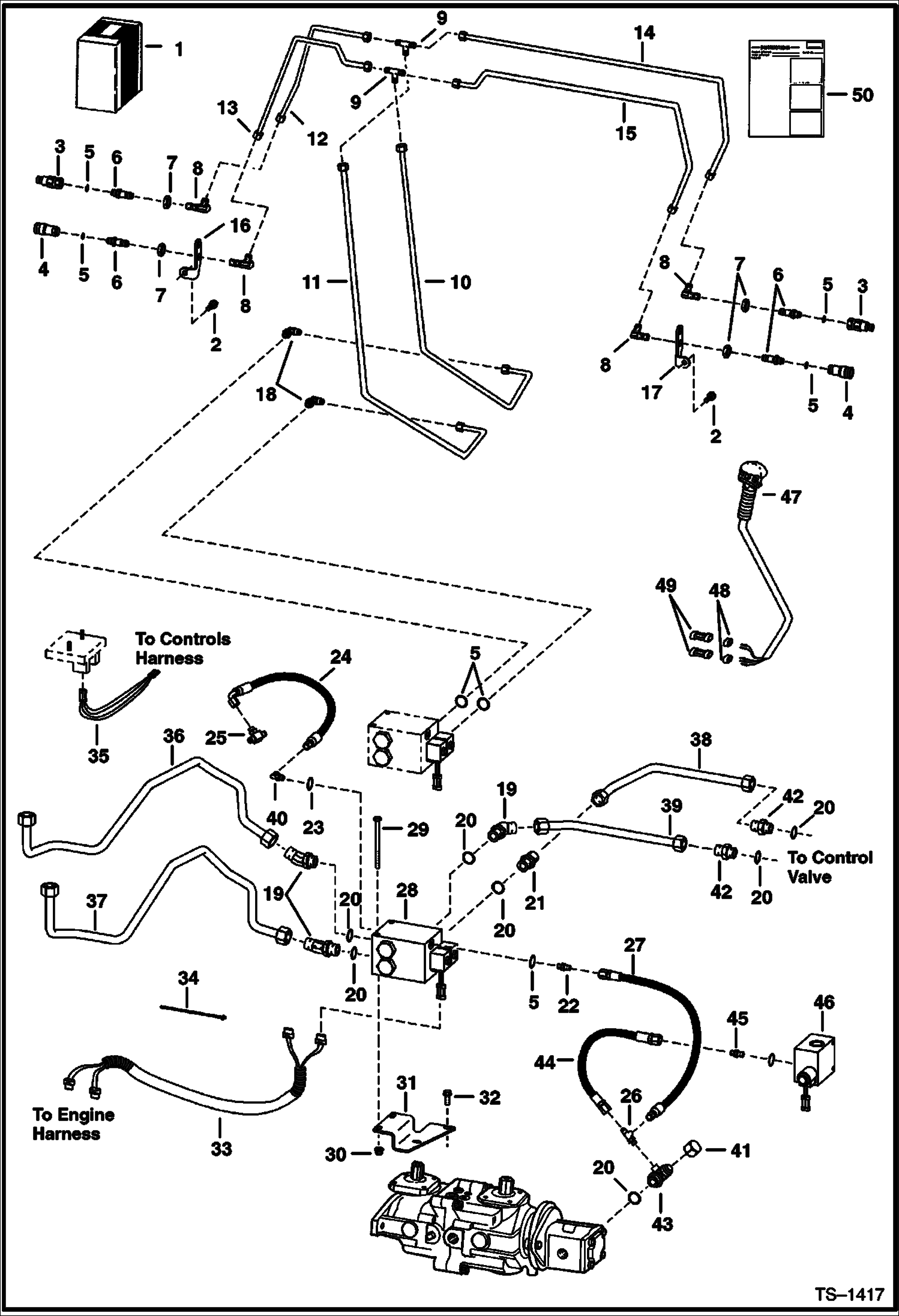

Запчасти Bobcat 700s REAR AUXILIARY (W/FF Couplers) (S/N 5122 17846-20297, 5124 40566-40720, 5126 12076-12257) ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 2 - 41, 43 & 47 - 50

1

KIT SALES - Export

2

84G3712

BOLT 5

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT Was 6655795 - A

4

6667803

COUPLER, FF FEMALE

5

79K6

O RING 10 flat boss face

5

99K6

O RING tapered boss face

6

6706633

ADAPTER W/Ref. 5 - check boss face to determine correct replacement o-ring

7

86F5

NUT

8

88F5

ELBOW W/Ref. 5

9

10K5

TEE

10

6710323

TUBE

11

6710322

TUBE

12

6707870

TUBE

13

6707869

TUBE

14

6707872

TUBE

15

6707871

TUBE

16

6707822

MOUNT

17

6707823

MOUNT

18

17K5

ELBOW W/Ref. 5

19

18K8

FTG W/Ref. 20

20

79K12

O RING 10

21

15K8

FITTING W/Ref. 20

22

15K5

FITTING W/Ref. 5

23

79K4

O RING 10

24

6706786

HOSE

25

6578209

TEE cross

26

21K3

CONNECTOR W/Ref. 23

27

6710869

HOSE

28

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

29

17C680

BOLT

30

83D6

NUT 5

31

6706548

MOUNT

32

84G3716

SCREW 5

33

6710870

HARNESS

34

6610510

TIE

35

6704114

HARNESS

36

6707889

TUBE connects to Ref. 1 on Ill. B17196

37

6710871

TUBE connects to Ref. 1 on Ill. B17196

38

6706530

TUBE

39

6706531

TUBE

40

17K3

ELBOW W/Ref. 23

41

36K8

CAP

42

ADAPTER existing - W/Ref. 20

43

6707103

CONNECTOR cross

44

6706785

HOSE existing - rerouted from gear pump to Ref. 26

45

6665489

ADAPTER See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 EXISTING - W/INTERNAL FILTER

46

6664849

VALVE See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 EXISTING - SOLENOID

47

6680414

HANDLE ASSY. Was 6705921 - A

47

6640690

PIN

47

6641176

SEAL

48

6641180

LOCK Use W/ 2-pin connector

48

6640700

LOCK 3-pin

49

6641179

CONNECTOR 2-pin

49

6640699

CONNECTOR 3-pin

50

6724418

INSTRUCTIONS
