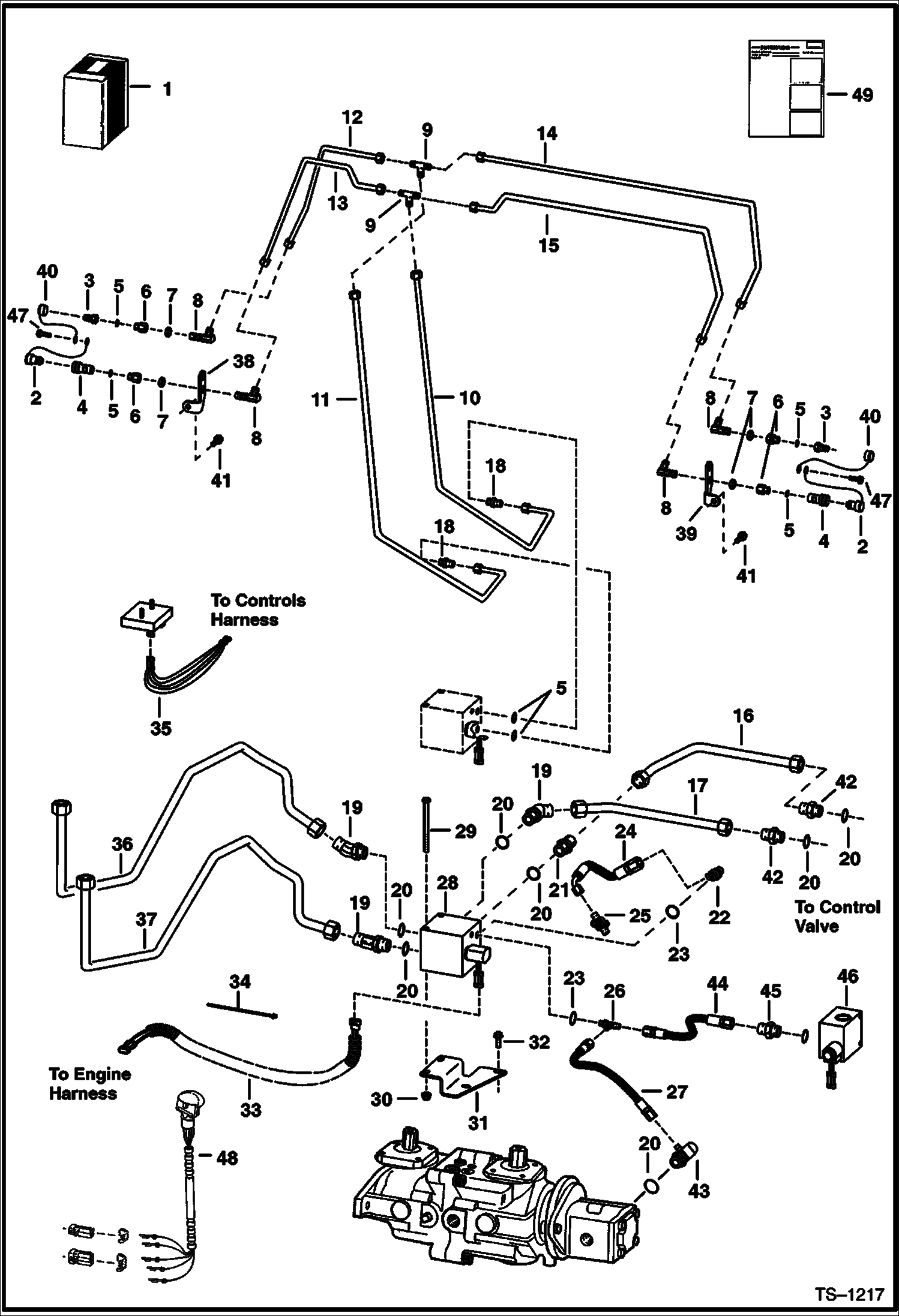

Запчасти Bobcat 700s REAR AUXILIARY (W/Poppet Couplers) (S/N 5122 17845 & Bel, 5124 40565 & Bel, 5126 12075 & Bel) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-40, 48 & 49 - Order components - Was SALES - D

1

KIT NLA - EXPORT - REF. 2 - 40 & 49 - Order components - WAS SALES - D

2

6630487

PLUG

3

6648969

QUICK COUPLER male - Was 2341398 - A

4

6648967

QUICK COUPLER female - Was 2342026B - A

4

6655795

SEAL KIT

5

79K6

O RING 10 flat boss face

5

99K6

O RING tapered boss face

6

6706633

ADAPTER W/Ref. 5 - check boss face to determine correct replacement o-ring

7

86F5

NUT

8

88F5

ELBOW W/Ref. 5

9

10K5

TEE

10

6707873

TUBE

11

6707874

TUBE

12

6707870

TUBE

13

6707869

TUBE

14

6707872

TUBE

15

6707871

TUBE

16

6706531

TUBE

17

6706530

TUBE

18

15K5

FITTING W/Ref. 5

19

18K8

FTG W/Ref. 20

20

79K12

O RING 10

21

15K8

FITTING W/Ref. 20

22

17K3

ELBOW W/Ref. 23

23

79K4

O RING 10

24

6706786

HOSE

25

6578209

TEE cross

26

21K3

CONNECTOR Ref. 23

27

6707411

HOSE

28

6649686

VALVE See Illustration REAR AUXILIARY VALVE/ B12959

29

17C680

BOLT

30

83D6

NUT 5

31

6706548

MOUNT

32

84G3716

SCREW 5

33

6704203

HARNESS

34

6610510

TIE

35

6704114

HARNESS

36

6707889

TUBE connects to Ref. 1 on Ill. B17196

37

6710871

TUBE connects to Ref. 1 on Ill. B17196 - Was 6710197 - A

38

6707822

MOUNT

39

6707823

MOUNT

40

6630486

CAP

41

84G3712

BOLT 5

42

ADAPTER existing - W/Ref. 20

43

6704693

TEE See Illustration HYDROSTATIC CIRCUITRY/ E2218 EXISTING - CROSS

44

6706785

HOSE existing - rerouted from gear pump to Ref. 26

45

6665489

ADAPTER See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 EXISTING - W/INTERNAL FILTER

46

6664849

VALVE See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 EXISTING - SOLENOID

47

84G3712

BOLT 5 existing - relocate from transmission cover

48

6680414

HANDLE ASSY. Was 6705921 - A

48

6640690

PIN

48

6641176

SEAL

49

6724061

INSTRUCTIONS
