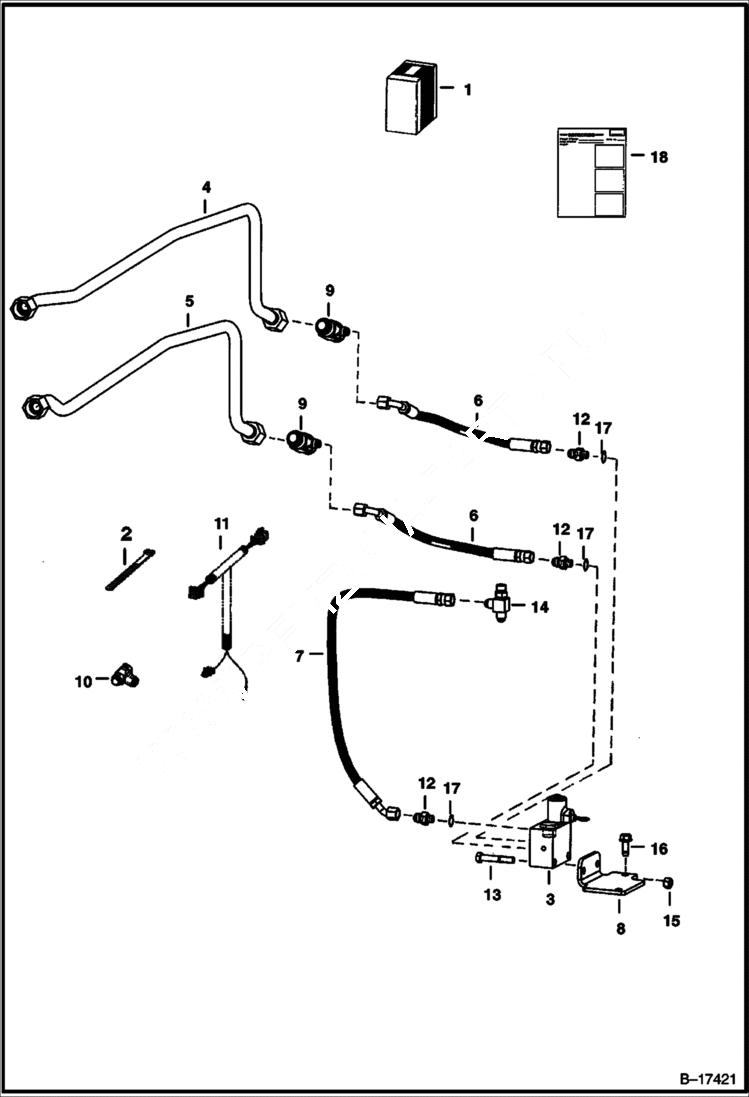

Запчасти Bobcat 700s PRESSURE RELEASE KIT (High Flow Hydraulics) (W/O Rear Auxiliaries) ACCESSORIES & OPTIONS

1

6718242

KIT front aux. press. release - HFH - Ref. 2 - 18

2

6610510

TIE

3

VALVE See Illustration PRESSURE RELEASE VALVE/ PE1017 NLA - W/.4375'' THREADED PORTS - ORDER 6678150 VALVE & (3) OF Ref. 12 (15KB00606B ADAPTER) - WAS 6674372 - A

3

6678150

VALVE See Illustration PRESSURE RELEASE VALVE/ PE1017 W/.5875'' THREADED PORTS

4

6717911

TUBE

5

6717910

TUBE

6

6717919

HOSE

7

6717921

HOSE

8

6717922

BRACKET

9

6717923

TEE

10

6718098

CONNECTOR

11

6718111

HARNESS adapter

12

ADAPTER NLA - W/Ref. 17 (flat boss face) - Use W/Ref. 3 (NLA/6674372 Valve)

12

97K6

O RING flared end

12

15KB0604

FTG HYD S CONNECTOR W/Ref. 17 - flat boss face - Use W/Ref. 3 (NLA/ 6674372) valve

12

ADAPTER NLA - W/Ref. 17 (tapered boss face) - Use W/Ref. 3 (6678150 Valve) - Was 15KV00005B - A

12

97K6

O RING flared end

12

15KB0606

FITTING, HYD CONNECTOR W/Ref. 17 - flat boss face

13

17C636

BOLT

14

21KB0606

FTG HYD STRAIGHT TEE Was 21KV00005B - A

14

97K6

O RING flared end

15

95D6

NUT Was 61D000006B - A

16

84G3716

SCREW 5

17

79K4

O RING 10 flat boss face

17

99K6

O RING tapered boss face

18

6900841

INSTRUCTIONS
