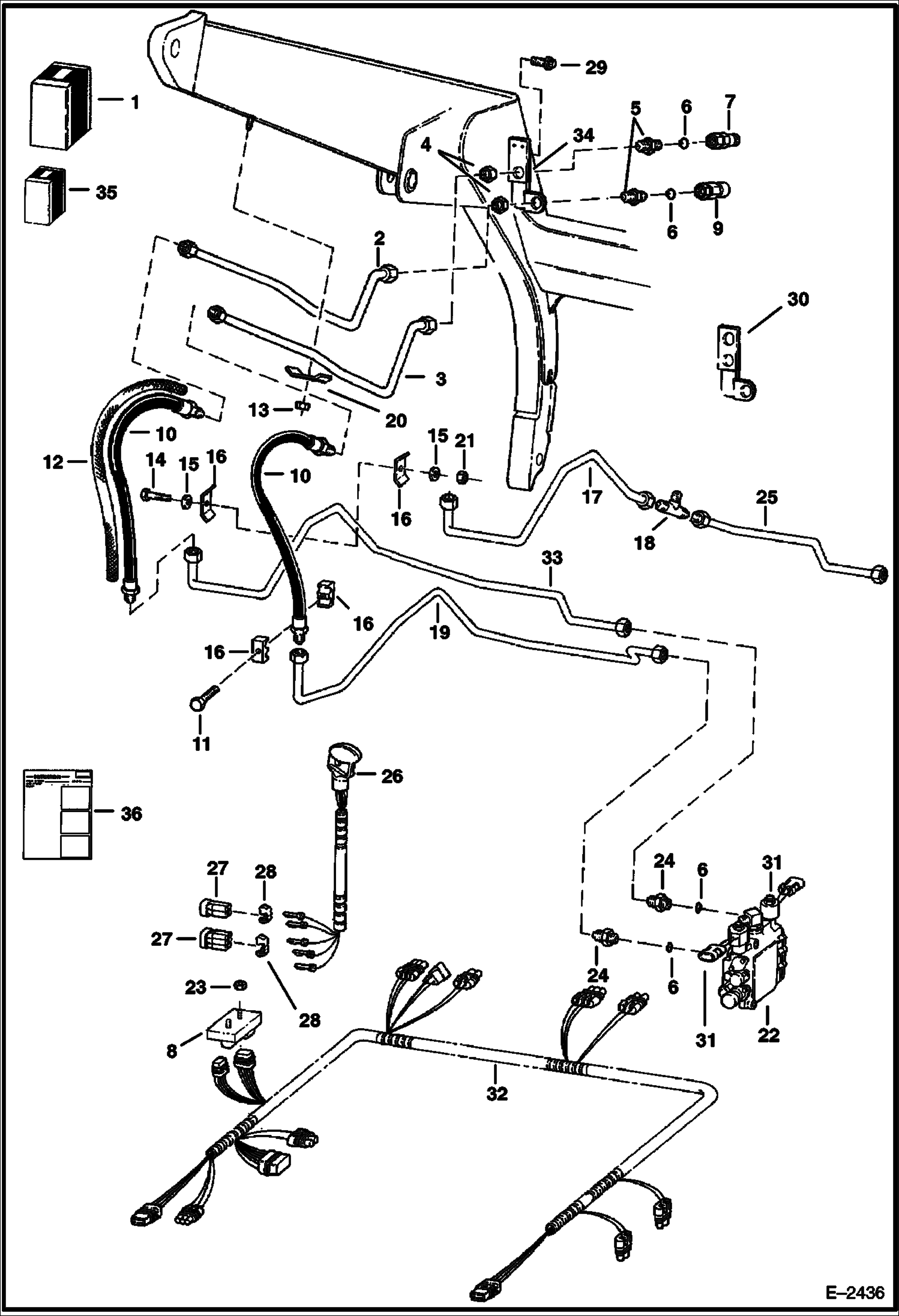

Запчасти Bobcat 700s FRONT AUXILIARY KIT (W/FF Couplers) (S/N 5122 20298 & Abv, 5124 40721 & Abv, 5126 12258 & Abv) ACCESSORIES & OPTIONS

1

6713079

KIT Ref. 2-16, 19, 20, 26-30 & 32-36

2

6727801

TUBELINE, HYD Was 6711738 - A

3

6711737

TUBELINE, HYD

4

86F7

LOCK NUT

5

6711625

FITTING W/Ref. 6 - flat boss face

5

CONNECTOR NLA - W/Ref. 6 - flat boss face - Was 6715185 - A

5

97K10

O-RING 10 flared end

5

6812816

ADAPTER W/Ref. 6 - flat boss face

6

79K12

O RING 10 flat boss face

6

99K12

O RING tapered boss face

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

6671669

MODULE, CONTROL AUX Was 6669529 - C

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

6729155

HOSE W/Ref. 12 - Was 6714595 - A

11

84G3732

BOLT

12

6643249

CONDUIT 1'' (25,4 mm) ID - bulk - sold per foot

13

59D6

NUT Was 91D000006B - B

14

37C540

BOLT Was 35C000540B - B

15

872229

WASHER

16

6592506

CLAMP

17

6712877

TUBE Not in Kit

18

45K8

ADAPTOR not shown - Not in Kit - Was 45KN00008B - A

18

10K8

TEE for High Horsepower Option - shown - Not in Kit

18

10K8

TEE for High Horsepower Option - shown - W/ O-rings - Not in Kit - Was 10KN00008B - A

18

97K12

O'RING flared end

19

6713902

TUBE Was 6712881 - A

20

6502203

CLAMP

21

83D5

NUT 5 Not in Kit

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2219 NOT IN KIT

23

85D4

NUT 5 Not in Kit

24

ADAPTER W/Ref. 6 - Not in Kit

25

6712876

TUBE Not in Kit

26

6680414

HANDLE ASSY. 2-switch - Was 6705921 - A

26

6640690

PIN

26

6641176

SEAL

27

6641179

CONNECTOR 2-pin

27

6640699

CONNECTOR 3-pin

28

6641180

LOCK Use W/ 2-pin connector

28

6640700

LOCK 3-pin

29

84G3112

BOLT 5

30

MOUNT NLA - Order Ref. 34 - Was 6711672 - A

31

6717708

COIL, 14 VOLT 14 volt - Not in Kit - W/nut - Was 6665759 - A

31

6679961

NUT

32

6719149

HARNESS Was 6712136 - A

33

6713875

TUBE

34

6713850

MOUNT

35

6718241

KIT See Illustration PRESSURE RELEASE KIT/ B17257 FRONT AUX. PRESSURE RELEASE

36

6724636

INSTRUCTIONS
