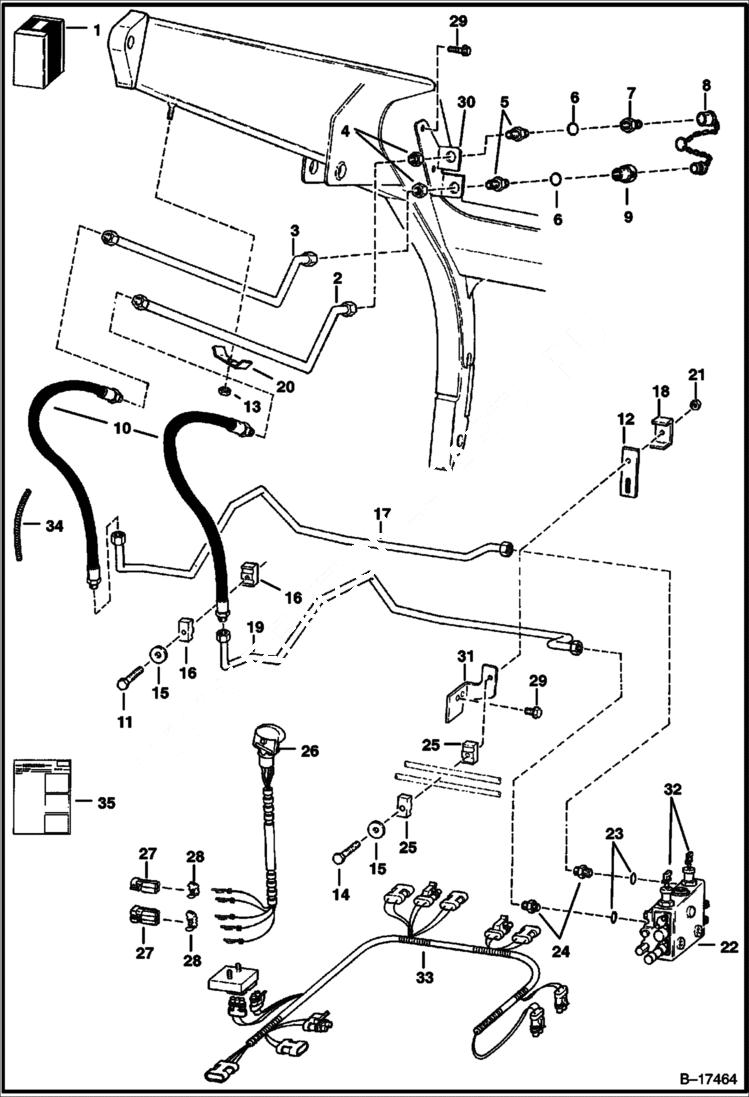

Запчасти Bobcat 700s FRONT AUXILIARY KIT (W/Poppet Couplers) (S/N 5122 17845 & Bel, 5124 40565 & Bel, 5126 12075 & Bel) ACCESSORIES & OPTIONS

1

6707512

KIT Ref. 2 - 20, 26 - 30 & 33 - 35

2

6706832

TUBE

3

6706833

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR W/Ref. 6

6

79K10

O RING 10

7

6598757

COUPLER, POPPET MALE straight

7

6513709

CAP PLUG Assy. (Rubber)

8

6515167

PLUG Steel

8

6515168

CAP Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

9

6665430

BACKUP RING

10

HOSE NLA - Order 6729155 Hose - Was 6707214 - A

10

6729155

HOSE W/Ref. 34 - Was 6714595 - A

11

84G3732

BOLT

12

6702548

PAD

13

85D6

NUT, 5

14

17C548

BOLT

15

872229

WASHER

16

6592506

CLAMP

17

6707175

TUBE

18

6568476

CLAMP

19

6710164

TUBE Was 6707174 - A

20

6502203

CLAMP

21

85D5

NUT 5 Not in Kit

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2219 NOT IN KIT

23

79K12

O RING 10 Not in Kit

24

ADAPTER W/Ref. 13 - Not in Kit

25

6701892

CLAMP Not in Kit

26

6680414

HANDLE ASSY. 2-switch - Was 6705921 - A

26

6640690

PIN

26

6641176

SEAL

27

6641179

CONNECTOR 2-pin

27

6640699

CONNECTOR 3-pin

28

6641180

LOCK Use W/ 2-pin connector

28

6640700

LOCK 3-pin

29

84G3112

BOLT 5

30

6705700

MOUNT

31

6704619

MOUNT See Illustration AUXILIARY HYDRAULICS/ D2144 Not in Kit

32

6717708

COIL, 14 VOLT 14 volt - Not In Kit - W/nut - Was 6665759 - A

32

6679961

NUT

33

6710365

HARNESS

34

6643249

CONDUIT 1'' (25,4 mm) ID - bulk - sold per foot

35

6722964

INSTRUCTIONS
