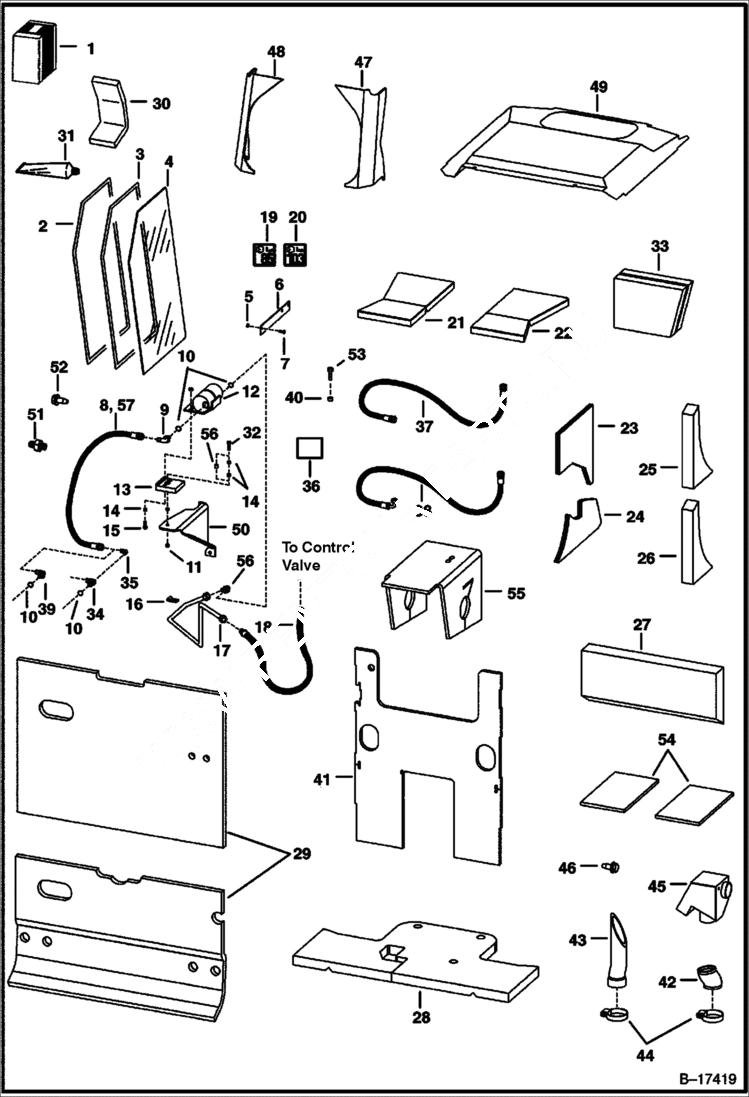

Запчасти Bobcat 700s EUROPEAN ACCESSORIES (Sound Option) ACCESSORIES & OPTIONS

1

KIT NLA - sound - Ref. 2 - 33 - Was SALES - D

2

6631549

HOOK scotchmate

3

6631548

LOOP scotchmate

4

6702731

WINDOW, CAB cab

5

83D4

NUT 10

6

6700875

RETAINER window

7

35C410

BOLT 5

8

6662866

HOSE Use existing hose from loader

8

HOSE NLA - pump to hyd. muffler - Order Ref. 9 & 57 - Was 6707231 - A

9

17K8

FITTING W/Ref. 10 - flat boss face

9

17KB1212

FITTING, HYD ELBOW W/Ref. 10 - tapered boss face - Was 17KV00008B - A

9

97K12

O'RING flared end

10

79K12

O RING 10 flat boss face

10

99K12

O RING tapered boss face

11

85D6

NUT, 5

12

6659982

MUFFLER hydraulic - Was 6703648 - A

13

MOUNT NLA - rubber - Order 6705333 Mount & Ref. 14 & 32

13

6705333

MOUNT rubber

14

6562619

BUSHING

15

35C616

BOLT 5

16

30H42

CLAMP

17

6704618

TUBE muffler

18

6662868

HOSE

18

6729154

HOSE, HYD ASSY muffler to control valve - Use W/O Ref. 17 - Was 6714594 - A

19

6579385

DECAL sound level warning - 85 decibel

19

6579399

DECAL sound level warning - 83 decibel

20

6579403

DECAL sound level warning-103 decibel

21

6732722

INSULATION crossmember - L.H. - Was 6704721 - A

22

6732723

INSULATION crossmember - R.H. - Was 6704722 - A

23

6719332

INSULATION blower housing - Was 6704725 - A

24

6704769

INSULATION blower housing

25

6704741

INSULATION upright

26

6704742

INSULATION upright

27

6715096

INSULATION cab back - Was 6708682 - B,D

28

6715095

INSULATION seat pan - Was 6706983 - A

29

6704752

INSULATION two piece rear door

29

6715106

INSULATION one piece rear door

30

6703331

INSULATION air inlet

31

6633583

SEALANT, POLYURETHANE 300 ML

32

84G3724

BOLT

33

6705848

INSULATION transmission

34

6700599

ELBOW W/Ref. 10

35

1316049

ELBOW

36

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

37

6707301

HOSE

38

6702079

HOSE Was 6707302 - A

39

6715190

ELBOW Was 6707317 - A

40

6715744

BUSHING

41

6715099

INSULATION steering panel

42

6715240

HOSE air cleaner

43

6715239

HOSE intake

44

42HL300

CLAMP Was 6598799 - A

45

6719649

MUFFLER intake - Was 6715249 - A

46

84G3712

BOLT 5

47

6715098

INSULATION cab corner

48

6715097

INSULATION cab corner

49

6715094

INSULATION cab top

50

6715289

MOUNT hyd. muffler

51

ADAPTER NLA - W/Ref. 10 - tapered boss face

51

97K12

O'RING flared end

51

15KB1212

FITTING, HYD CONNECTOR W/Ref. 10 - flat boss face

52

35C620

BOLT 5

53

84G3716

SCREW 5

54

6715371

INSULATION pedal

55

6715372

INSULATION transmission

56

6707895

ELBOW 45 degree - W/Ref. 10 - for Use W/Ref. 12 - flat boss face

56

18KB1212

FITTING, HYD ELBOW tapered boss face - W/Ref. 10 - Was 18KV00008B - A

56

97K12

O'RING flared end

57

6729144

HOSE
