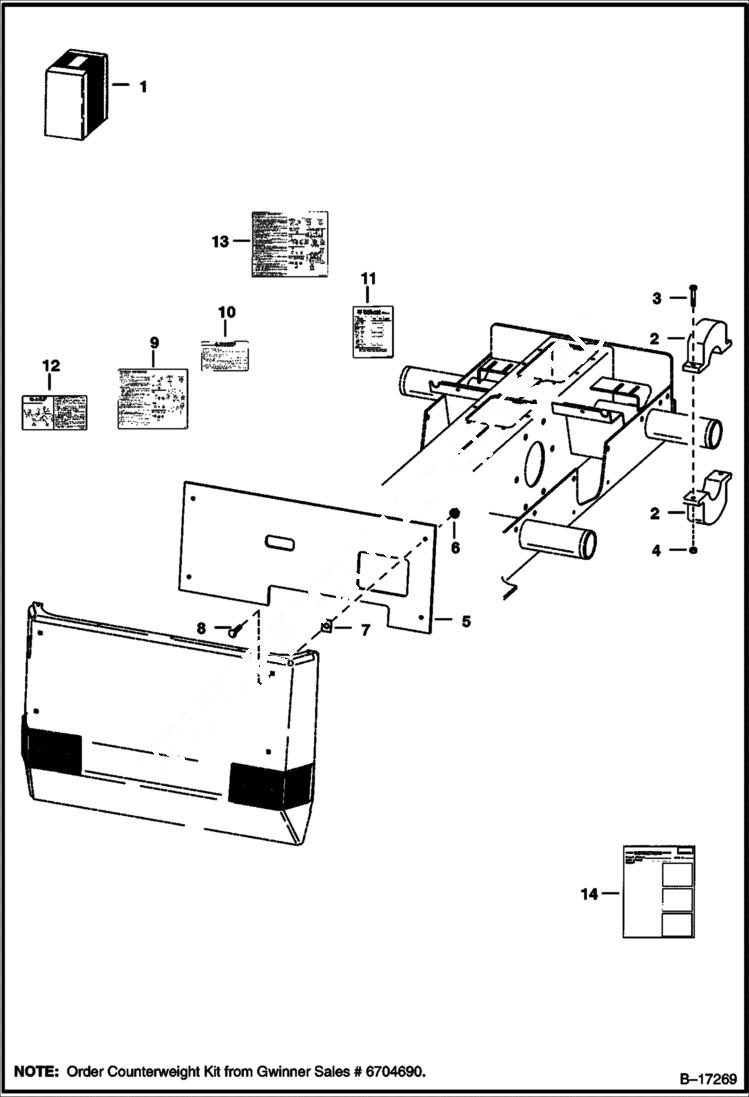

Запчасти Bobcat 700s COUNTERWEIGHT KIT (1600 lb. W/Rear Door Weight - Two Piece Rear Door) ACCESSORIES & OPTIONS

1

KIT SALES - counterweight - SEE NOTE

2

WEIGHT NLA - front axle - 19.1 lbs (8,7 kg) - 2.25''(57,2 mm) wide - Was 6702453 - A

2

6714361

COUNTERWEIGHT, AXLE front - 71,6 kg (38.7 lb) - 114,3 mm (4.5'') wide

3

17C640

BOLT 5

4

61D6

NUT 5

5

6712177

WEIGHT Was 6704638 - A

6

57D6

NUT 5

7

1612281

SPRINGNUT spring

8

37C628

BOLT

9

6708212

DECAL service

10

6579511

DECAL warning

11

6709781

DECAL filters - Was 6700237 - A

12

6705220

DECAL belt tension - for fixed idler

12

6709030

DECAL belt tension - spring loaded idler - Was 6711905 - B,D

13

6708212

DECAL service - Was 6703480 - A

14

6900366

INSTRUCTIONS Was 6722194 - A
