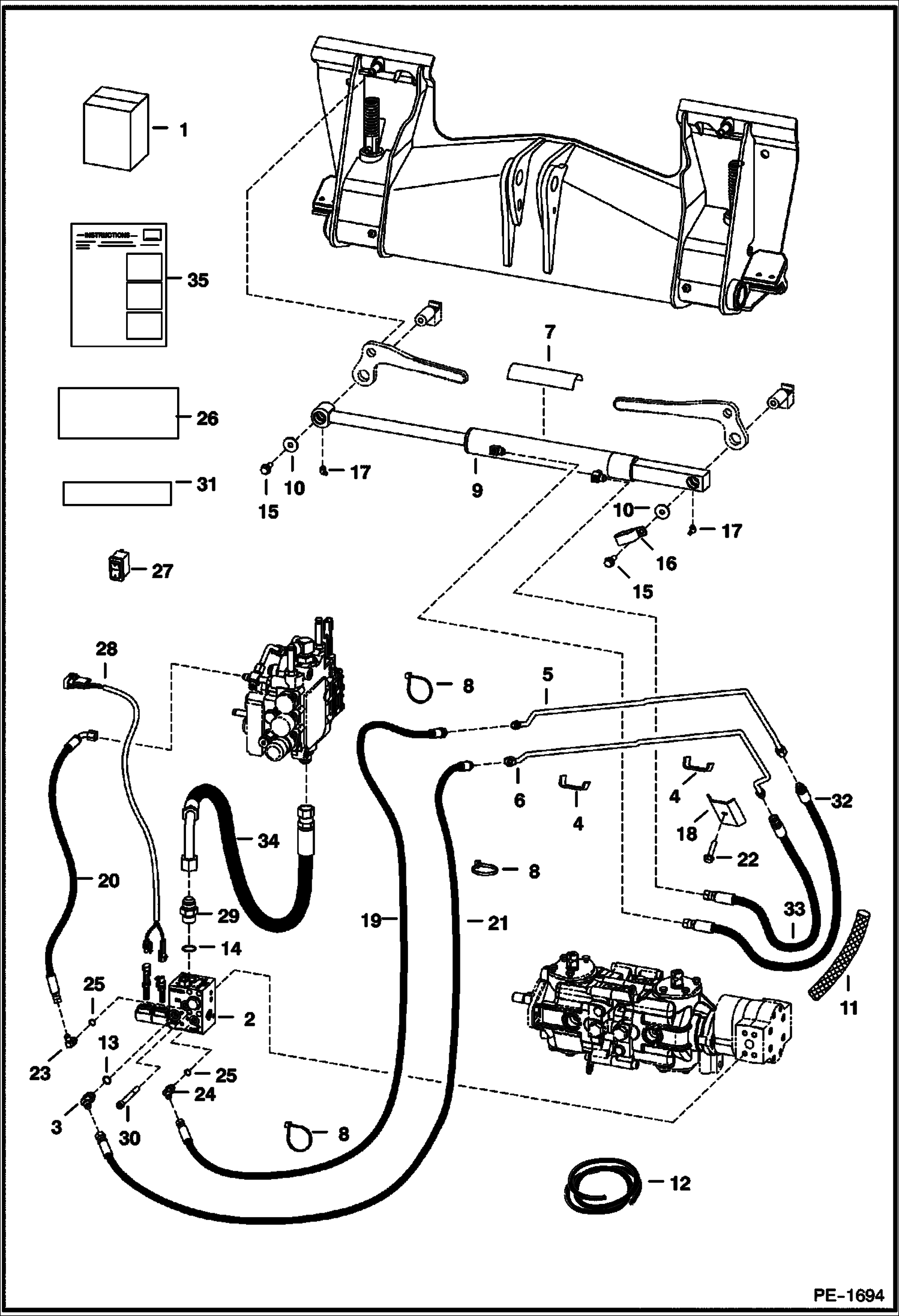

Запчасти Bobcat 700s POWER BOB-TACH KIT (S/N 5158 44250- , 5162 26050- ) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2 - 35 - Order 6735459 - Was 6732940 - A

2

VALVE See Illustration POWER BOB-TACH/ MS1263

3

18KB0606

FITTING, HYD ELBOW W/Ref. 13

4

6703615

CLAMP

5

6733354

TUBE

6

6733355

TUBE

7

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

8

6624289

STRAP, TIE

9

CYLINDER See Illustration POWER BOB-TACH/ PE1064

10

619021

WASHER, 5

11

COVER NLA - 32''(813 mm) long - Order Ref. 12

12

6656155

HOSE COVER bulk - sold per foot

13

79K6

O RING 10

14

79K12

O RING 10

15

35C616

BOLT 5

16

31H42

CLIP

17

11H25

FITTING10

18

6719884

BRACKET

19

6806987

HOSE

20

6733360

HOSE

21

6714477

HOSE, HYD ASSY

22

84G3716

SCREW 5 - Was 84G003714B - A

23

17KB0404

FTG HYD ELBOW 90 W/Ref. 25

24

18KB0404

FTG HYD ELBOW 45 W/Ref. 25

25

79K4

O RING 10

26

6725907

DECAL, OPERATION power Bob-Tach

27

6676732

SWITCH vertical

28

6730770

HARNESS

29

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14

30

73G656

SCREW

31

6719888

DECAL power Bob-tach

32

6725198

HOSE

33

6725199

HOSE

34

6733359

HOSE 31.5'' (800,1 mm) long

34

6737507

HOSE 47'' (1,193,8 mm) long - Was 6734247 - A

35

6901815

INSTRUCTIONS
