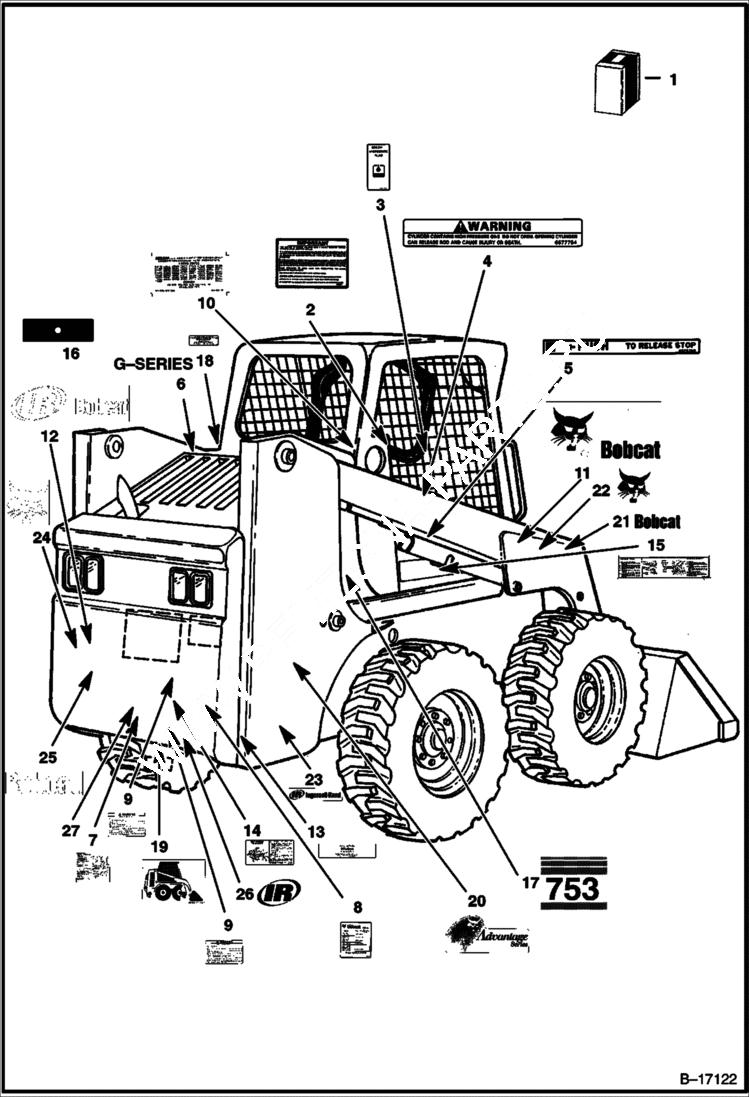

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6901066

KIT decal

1

6725366AR

KIT decal

1

6725366BR

KIT decal

1

6725366JP

KIT decal

1

6725500AR

KIT translation

1

6725500BR

KIT translation

2

6560573

DECAL spark arrestor

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6717907

DECAL ''G''-Series

7

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6728327 - A

8

DECAL NLA - operations - W/Ref. 7 - Was 6718703 - A

9

6734534

DECAL, SERVICE warning/service schedule/ service parts - Was 6718398 - A

10

DECAL NLA - patent - Was 6557224 - C

11

6727309

DECAL, LOGO RH R.H. - Not in Kit - Was 6702826 - A

11

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head - not in kit - Was 6702827 - A

12

DECAL NLA - Logo - not in kit - Was 6727311 - A

13

6565200

DECAL, FILTER

14

6709030

DECAL belt tension - spring loaded idler

15

6706558

DECAL, OPERATION lift arm support

16

6714242

DECAL Not in Kit

17

6714532

DECAL model

18

6708929

DECAL, COOLANT propylene glycol

19

6727595

DECAL Was 6595014 - A

20

6718272

DECAL advantage series - R.H. - 14''(355,6 mm) wide - Not in Kit

21

6731336

DECAL Bobcat - black - Was 6731509 - A

22

6731507

DECAL RH - Bobcat head - black

22

6731508

DECAL LH - Bobcat head - black

23

DECAL NLA - IR Logo - Black - Was 6735864 - A

24

DECAL NLA - Bobcat head - white - Order Ref. 27 - Was 6732420 - A

25

DECAL NLA - Bobcat - white - Order Ref. 27 - Was 6732419 - A

26

DECAL NLA - IR - White - Was 6732423 - A

27

6735901

DECAL, LOGO BOBCAT HEAD white
