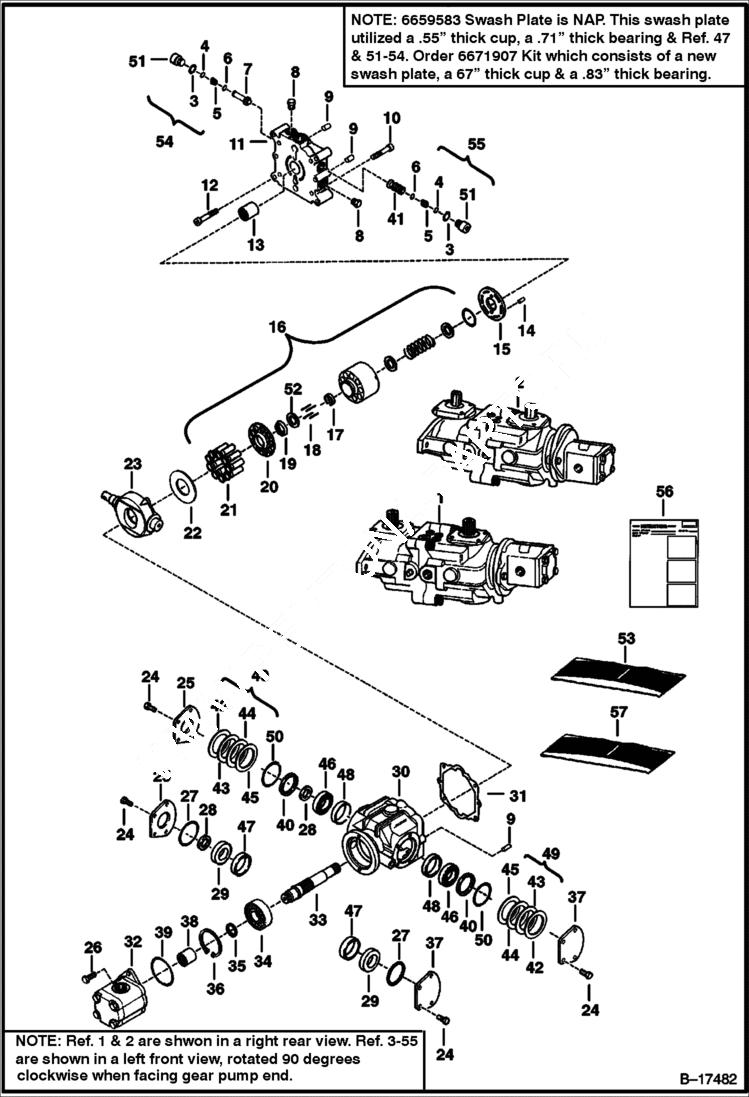

Запчасти Bobcat 700s HYDROSTATIC PUMP (Models M91-35906, 35908, 35910, 35911 & 35916) HYDROSTATIC SYSTEM

1

PUMP See BTI274 NLA - W/gear pump - M91-35906, 35908 & 35910 - Pump is shown in a right rear view - Ref. 3-55 are shown in a left front view, rotated 90 degrees clockwise when facing gear pump end - W

1

PUMP See BTI274 NLA - W/Gear Pump - M91-35911 - Was 6659521 - A

2

PUMP See Illustration HYDROSTATIC PUMP/ D2377 NLA - W/gear pump - M91-35916 - Order 6669464 Pump - Was 6661997 - A

2

6662349REM

PUMP, HYD W/O GEAR PUMP Was 6662349 - A

3

6657028

O-RING

4

79K8

O RING 10

5

SPRING NLA - Order Ref. 54 or 55 - Was 6650656 - A

6

SNAP RING NLA - Order Ref. 54 or 55 - Was 6657071 - A

7

CHECK VALVE NLA - Order Ref. 54 - Was 6650669 - A

8

6657081

PLUG For M91-35906, 35908, 35910 & 35911

8

6645086

PLUG For M91-35916

9

6518460

PIN

10

6650637

BOLT

11

6669405

CAP, END Was 6650653 - A

12

6652018

BOLT

13

6650635

BEARING

14

6650636

PIN

15

6666291

VALVE PLATE Was 6650673 - C

16

6661758

BLOCK ASSY W/Ref. 17-21 - Was 6634311 - C

17

6650630

RETAINER

18

6650629

PIN

19

GUIDE NLA - Order Ref. 16 - Was 6657073 - C

20

GUIDE NLA - Order Ref. 16 - Was 6657072 - C

21

PISTON NLA - Order Ref. 16 - Was 6650632 - C

22

6650627

PLATE thrust

23

6671907

SWASH PLATE For M91-35906, 35908 & 35910 - Was 6657075 - A

23

6659583

SWASH PLATE For M91-35911 & 35916

24

6650668

BOLT

25

6657067

COVER

26

6666339

BOLT Was 6650679 - A

27

O-RING NLA - Order Ref. 50 - Was 6657079 - B

28

6678226

SEAL, OIL Was 6673881 - A

29

6659985

BUSHING For M91-35906, 35908 & 35910- Was 6657069 - A

30

6657077

HOUSING

31

6650634

GASKET

32

PUMP See Illustration GEAR PUMP/ TS1035

33

6650645

SHAFT

34

6650640

BEARING

35

6650641

SNAP RING

36

6652019

SNAP RING

37

6657068

COVER

38

6650677

COUPLER

39

QUAD RING NLA - O.D. of Ref. 32 - Was 6657080 - A

39

6645080

O-RING O.D. of Ref. 32

40

6659582

SPACER For M91-35911 & 35916

41

RELIEF VALVE NLA - 5000 PSI - Order Ref. 55 - Was 6658300 - A

42

6659578

SHIM .003 For M91-35911 & 35916

43

6659579

SHIM .005 For M91-35911 & 35916

44

6659580

SHIM .010 For M91-35911 & 35916

45

6659581

SHIM .020 For M91-35911 & 35916

46

6659584

KIT, BEARING For M91-35911 & 35916 - Was 6659584 - Was 6660117 - A

47

6659986

CARRIER For M91-35906, 35908 & 35910

48

6659584

KIT, BEARING For M91-35911 only - Was 6660118 - A

49

6660815

SHIM KIT Ref. 42 - 45

50

6660814

O-RING

51

PLUG NLA - Order Ref. 54 or 55 - Was 6657070 - A

52

6666338

WASHER

53

6722046

KIT See Illustration HYDROSTATIC PUMP/ B17481 Ref. 4, 12, 13, 18, 21, 46, 47, 50, 55, 56, 58, 59 & 65 - Also includes Ref. 23, 28, 31, 40, 46 & 48-50 on this illustration - swashplate bushing to beari

54

6670684

CHECK VALVE

55

6670685

RELIEF VALVE Was 6689601 - A

56

6722075

INSTRUCTIONS

57

6671516

KIT, SEAL See Illustration HYDROSTATIC PUMP/ B17481 Ref. 4, 5, 12, 13, 18, 32, 33, 39, 41, 45, 46 & 59 - Also includes Ref. 3, 4, 27, 28, 31 & 39 on this illustration - Was 6658092 - A
