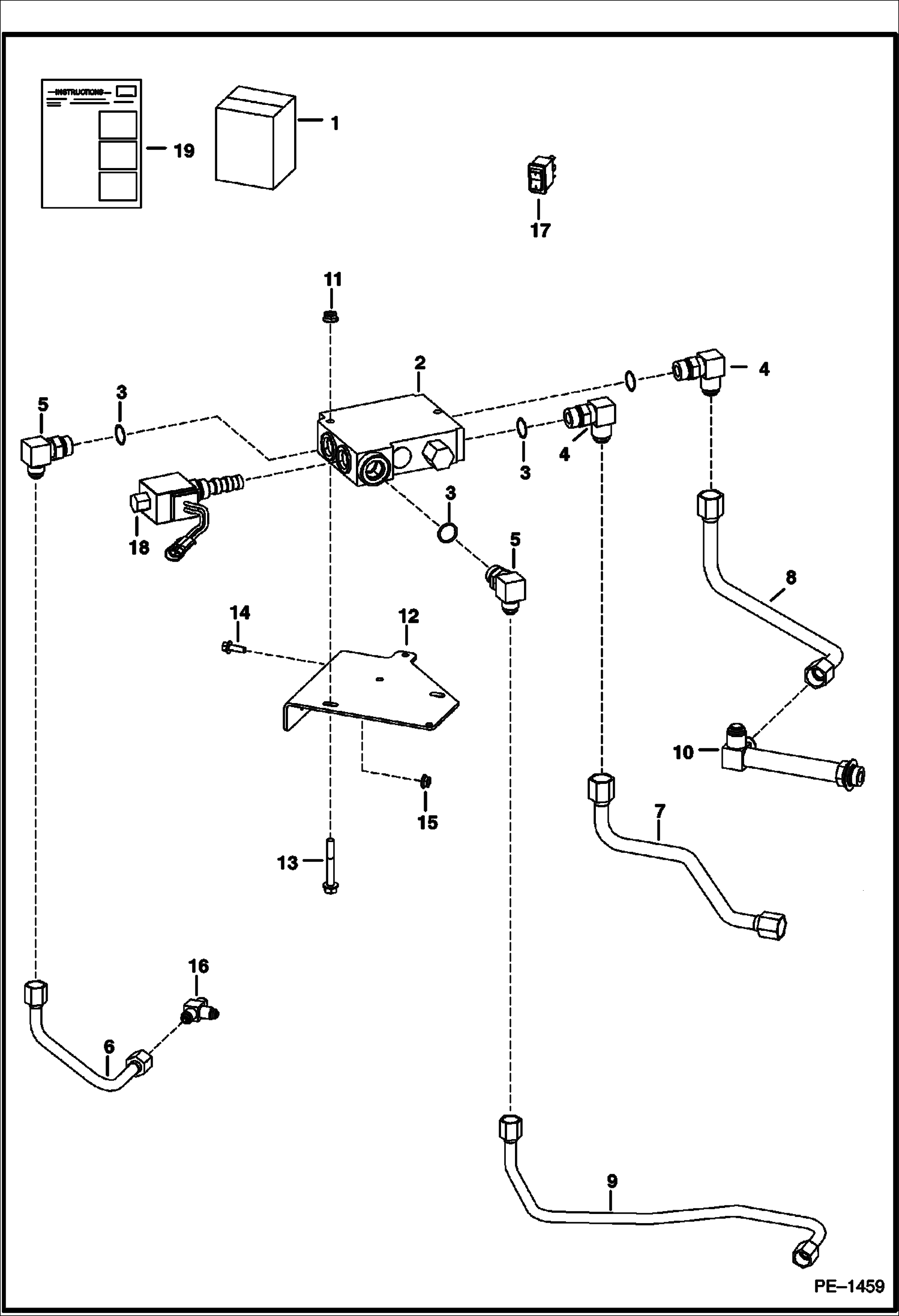

Запчасти Bobcat 700s BUCKET POSITIONING VALVE KIT (S/N 5158 40212 & Abv, 5162 23852 & Abv) ACCESSORIES & OPTIONS

1

6727619

KIT Ref. 2 - 15 & 20 - 22

2

VALVE NLA - Order 6673959 valve- Was 6666341 - A

3

99K10

O'RING tapered boss face

3

79K10

O RING 10 flat boss face

4

ELBOW NLA - W/Ref. 3 - tapered boss face - Was 17KV00007B - A

4

97K10

O-RING 10 flared end

4

17KB1010

FITTING, HYD ELBOW W/Ref. 3 - flat boss face

5

ELBOW NLA - W/Ref. 3 - flat boss face - Was 6715716 - A

5

97K8

O-RING flared end

5

17KB0810

FITTING, HYD ELBOW W/Ref. 3 - flat boss face

6

6727627

TUBE

7

6727629

TUBE

8

6727626

TUBE

9

6727628

TUBE

10

6730142

TEE Not in Kit

11

57D5

NUT

12

6704833

BRACKET

13

35C536

BOLT

14

35C412

BOLT

15

55D4

NUT

16

TEE See Illustration HYDRAULIC CIRCUITRY/ PE1462 NOT IN KIT

17

6668814

SWITCH

18

6672863

VALVE, SOLENOID

18

6670634

SEAL KIT

18

6671527

NUT

19

6902324

INSTRUCTIONS Was 6724522 - B
