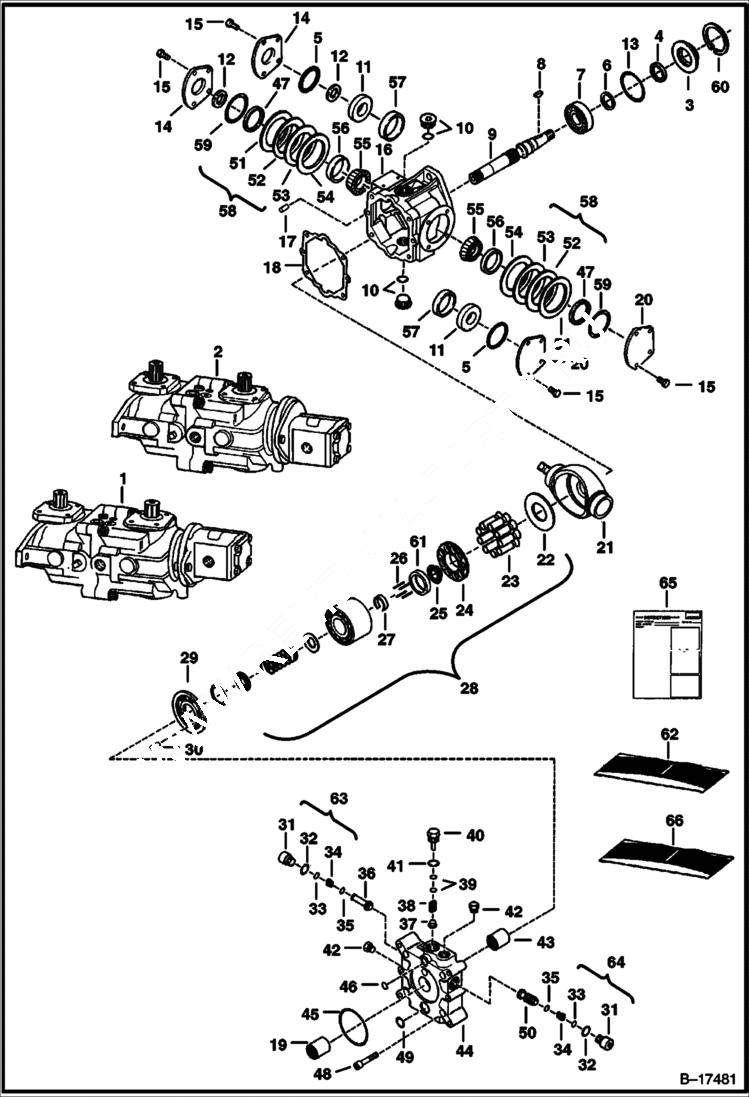

Запчасти Bobcat 700s HYDROSTATIC PUMP (Models M91-35906, 35908, 35910, 35911 & 35916) HYDROSTATIC SYSTEM

1

PUMP See BTI274 - NLA - M91-35906, 35908 & 35910 - W/gear pump - pump is shown in a right rear view - Ref. 3-64 are shown in a left front view rotated 90 degrees clockwise when facing gear pump end -

1

PUMP See BTI274 - NLA - M91-35911 - W/Gear Pump - Was 6659521 - A

2

PUMP See Illustration HYDROSTATIC PUMP/ D2377 - NLA - M91-35916 - W/gear pump - Order 7001070 pump & 6669385 gear pump - Was 6661997 - A

2

6662349REM

PUMP, HYD W/O GEAR PUMP Was 6662349 - A

3

6657074

ADAPTER

4

6650626

SEAL

5

O-RING NLA - Order Ref. 59 - Was 6650642 - A

6

6650641

SNAP RING

7

6650640

BEARING

8

6J807

KEY, WOODRUFF

9

6650671

SHAFT W/Ref. 8

10

47K8

PLUG W/ 79K000012B O-ring

10

79K12

O RING 10

11

6659985

BUSHING For M91-35906, 35908 & 35910 - Was 6657069 - A

12

6678226

SEAL, OIL Was 6673881 - A

13

6657079

O-RING

14

6657067

COVER

15

6650668

BOLT

16

HOUSING NLA - Was 6657076 - A

17

6518460

PIN

18

6650634

GASKET

19

6650675

COUPLER Was 6550675 - D

20

6657068

COVER

21

6671907

SWASH PLATE For M91-35906, 35908 & 35910 - Was 6657075 - A

21

6659583

SWASH PLATE For M91-35911 & 35916

22

6650627

PLATE thrust

23

PISTON NLA - Order Ref. 28 - Was 6650632 - C

24

GUIDE NLA - Order Ref. 28 - Was 6657072 - C

25

GUIDE NLA - Order Ref. 28 - Was 6657073 - C

26

6650629

PIN

27

6650630

RETAINER

28

6661758

BLOCK ASSY W/Ref. 23-27 - Was 6634311 - C

29

6666290

PLATE valve - Was 6650672 - C

30

6650636

PIN

31

PLUG NLA - Order Ref. 63 or 64 - Was 6657070 - A

32

6657028

O-RING

33

79K8

O RING 10

34

SPRING NLA - Order Ref. 63 or 64 - Was 6650656 - A

35

SNAP RING NLA - Order Ref. 63 or 64 - Was 6657071 - A

36

CHECK VALVE NLA - Order Ref. 63 - Was 6650669 - A

37

6650652

POPPET charge

38

6658301

SPRING Was 6650651 - C

39

6658302

SHIM .010 mm - Was 6657078 - C

39

6650649

SHIM .020 mm

39

6650650

SHIM .050 mm

40

6650648

PLUG

41

79K10

O RING 10

42

6645086

PLUG

43

6650635

BEARING

44

CAP NLA - Use 6669406 - Was 6650670 - A

45

6645081

O-RING Was 6655041 - A

46

6650646

O-RING

47

6659582

SPACER For M91-35911 & 35916

48

6650637

BOLT

49

6650647

O-RING

50

RELIEF VALVE NLA - Order Ref. 65 - 5000 PSI - Was 6658300 - A

51

6659578

SHIM .003 For M91-35911 & 35916

52

6659579

SHIM .005 For M91-35911 & 35916

53

6659580

SHIM .010 For M91-35911 & 35916

54

6659581

SHIM .020 For M91-35911 & 35916

55

6659584

KIT, BEARING For M91-35911 & 35916 - Was 6660117 - A

56

6659584

KIT, BEARING For M91-35911 only - Was 6660118 - A

57

6659986

CARRIER For M91-35906, 35908 & 35910

58

6660815

SHIM KIT Ref. 51 - 54

59

6660814

O-RING

60

6652019

SNAP RING

61

6666338

WASHER

62

6722046

KIT See Illustration HYDROSTATIC PUMP/ B17482 Ref. 23, 28, 31, 40, 46 & 48-50 - Also includes Ref. 4, 12, 13, 18, 21, 46, 47, 50, 55, 56, 58, 59 & 65 on this page - swashplate bushing to bearing upgra

63

6670684

CHECK VALVE

64

6670685

RELIEF VALVE Was 6689601 - A

65

6722075

INSTRUCTIONS

66

6671516
