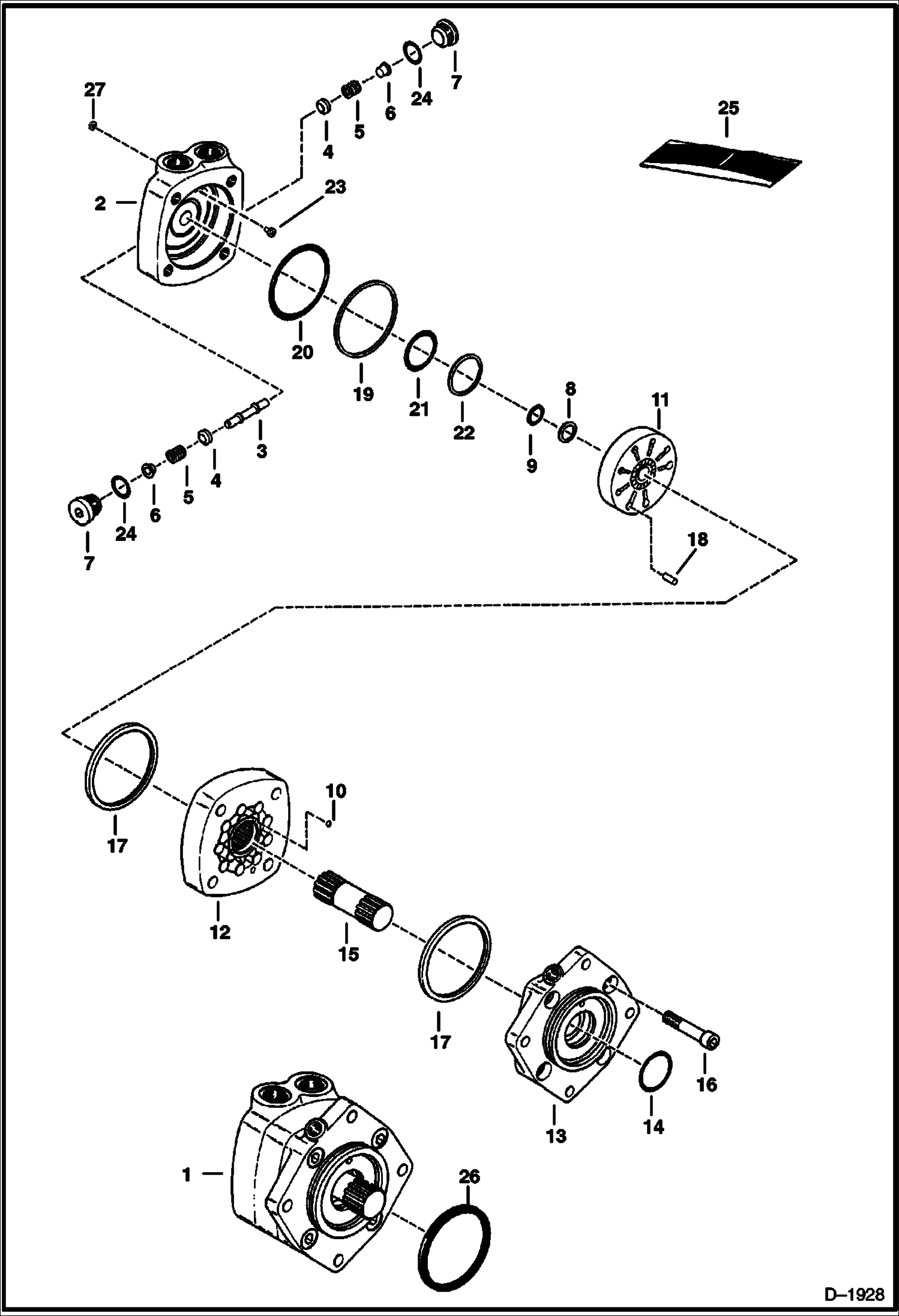

Запчасти Bobcat 700s HYDROSTATIC MOTOR (Model 137-1001-002) HYDROSTATIC SYSTEM

1

MOTOR See BTI340 NLA - Ref. 2 - 24 - Was 6657024 - A

2

6659475

END CAP W/Ref. 27

3

6513510

PISTON

4

6513532

POPPET

5

6513533

SPRING

6

6561218

SHUTTLE

7

6632271

PLUG W/Ref. 24

8

6659476

BACK-UP RING

9

6659477

O-RING

10

6651542

BALL, STEEL

11

PLATE NLA - valve - Was 6659479 - A

12

6651544

GEROLER

13

FLANGE NLA - Was 6659480 - A

14

25K30202

O RING 10

15

SHAFT NLA - Was 6659481 - A

16

BOLT NLA - Was 6651548 - A

17

6651549

SEAL

18

6659482

DOWEL PIN

19

6659483

BACK-UP RING

20

6651552

O-RING

21

6659484

O-RING

22

6659485

BACK-UP RING

23

6659478

DISC pressure

24

79K6

O RING 10

25

6659601

KIT, SEAL Ref. 8, 9, 14, 17, 19-22 & 24 Was 6658760 - D

26

58K243

O RING 10 See Illustration DRIVE TRAIN/ B17477

27

PLUG NLA - requires special tool to install - Was 6667880 - D
