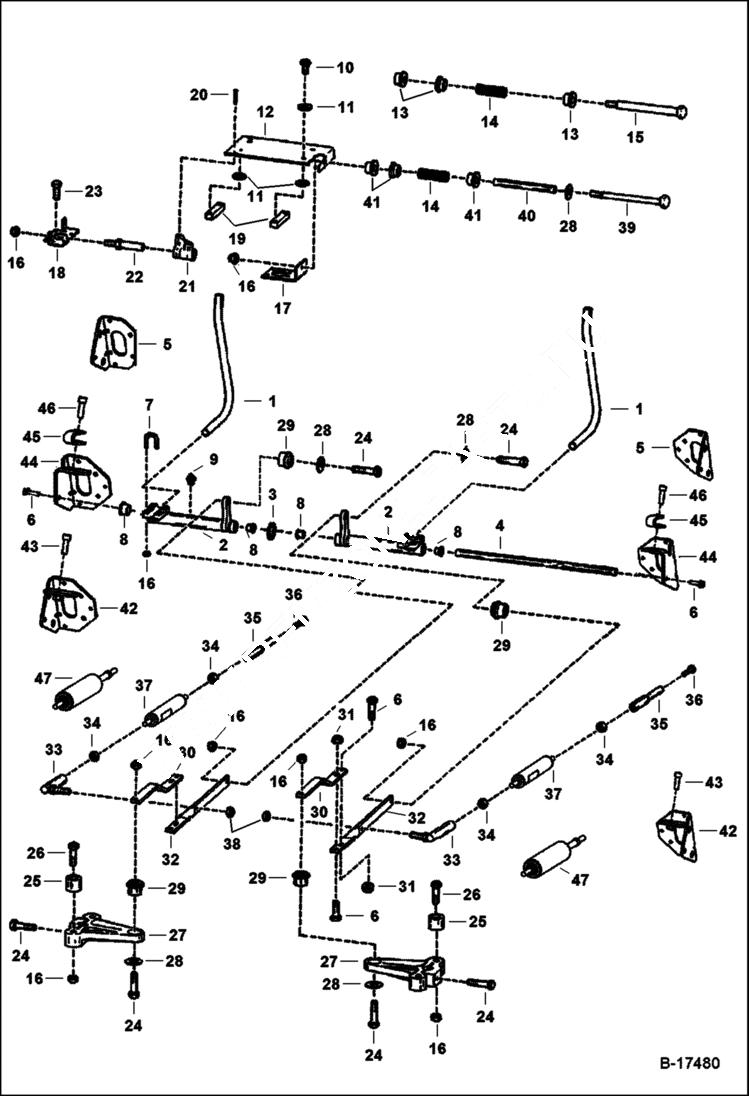

Запчасти Bobcat 700s HAND CONTROLS HYDROSTATIC SYSTEM

1

6576991

LEVER

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - W/O notch for bushing tab - Order 6703880 bellcrank & (2) of 6703879 bushing - Was 6700765 - C

2

BELLCRANK NLA - W/notch for bushing tab - Order 7110571 bellcrank, Ref. 9 (10H35 grease zerk), Ref. 28 (619021 washer) & Ref. 29 (6678067 bushing) - Was 6703880 - A

2

BELLCRANK NLA - W/notch for bushing tab - Use W/Ref. 9 (6518200 grease zerk) - Order 7110571 bellcrank & Ref. 9 (10H35 grease zerk) - Was 7101047 - A

2

7110571

BELLCRANK, STEERING W/notch for Ref. 8 (6703897 bushing) - Use W/Ref. 9 (10H35 grease zerk)

3

6599741

WASHER wave

4

ROD NLA - Ref. 6 (17C-616 Bolt) - Order 6716545 Rod & (2) of 45C000620B Bolt - Was 6576250 - A

4

6716545

ROD Use W/Ref. 6 (45C-620 Bolt)

5

6577230

BRACKET

6

17C616

BOLT 5 Was 17C000620B - B

6

45C620

BOLT Was 45C000624B - A

7

6732997

U-BOLT Was 6700768 - A

8

BUSHING NLA - W/O Tab - Order 6703880 Bellcrank & (2) of 6703879 Bushing - Was 6700348 - C

8

6703879

BUSHING, PLASTIC W/tab

9

6518200

FITTNG, GREASE 10 press fit

9

10H35

FITTING, GREASE 10 threaded

10

8C616

SCREW

11

6557831

WASHER

12

6576198

MOUNT

13

BUSHING NLA - Order Ref. 28, 39, 40 & (3) of Ref. 41 - Was 6571900 - A

14

6701535

SPRING

15

BOLT NLA - shoulder - Order Ref. 28, 39, 40 & (3) of Ref. 41 - Was 6702715 - A

16

95D6

NUT Was 91D000006B - A

17

6576196

MOUNT

18

6576197

MOUNT

19

6702716

BLOCK Was 6576199 - C

20

58G1012

SCREW Was 6657739 - B,D

21

6576201

GUIDE plastic

22

6577058

PIN

23

1CM820

BOLT

24

17C626

BOLT

25

6704435

WEAR CAM Was 6576200 - A

26

93G616

SCREW

27

6701145

LEVER, PINTLE .63'' pump lever shaft - Was NLA - D

28

6563914

WASHER 1.00'' (25,4 mm) O.D.

28

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

29

6665701

BUSHING, PRESS FIT neoprene - .885'' (22,5 mm) O.D. - Was 6630081 - A

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A

30

6576194

LINK

31

83D6

NUT 5

32

6576195

LINK

33

6599744

BALL JOINT

34

8D6

NUT 5 Was 62D000006B - B

35

BALL JOINT NLA - Order 6706106 mount, 6599744 ball joint, 91D5 nut & 17C612 screw - Was 6701149 - A

36

18C612

BOLT

37

GAS SPRING NLA - Japan Option - Order Ref. 47 - Was 6649551 - A

38

62D6

NUT 5

39

17C680

BOLT

40

6715164

SLEEVE, SPRING

41

6715163

BUSHING, PRESS FIT

42

BRACKET NLA - R.H. - Order Ref. 44-46 - Was 6733022 - A

42

BRACKET NLA - L.H. - Order Ref. 44-46 - Was 6733024 - A

43

93G824

BOLT Was 73G824 - A

44

7128600

BRACKET RH

44

7128601

BRACKET LH

45

7121779

PAD

46

73G828

BOLT

47

7188108

GAS SPRING
