Запчасти Bobcat 700s CONTROLS ELECTRICAL (AHC) (ACS) (S/N 5158 37343 & Above, 5162 22766 & Above) ELECTRICAL SYSTEM

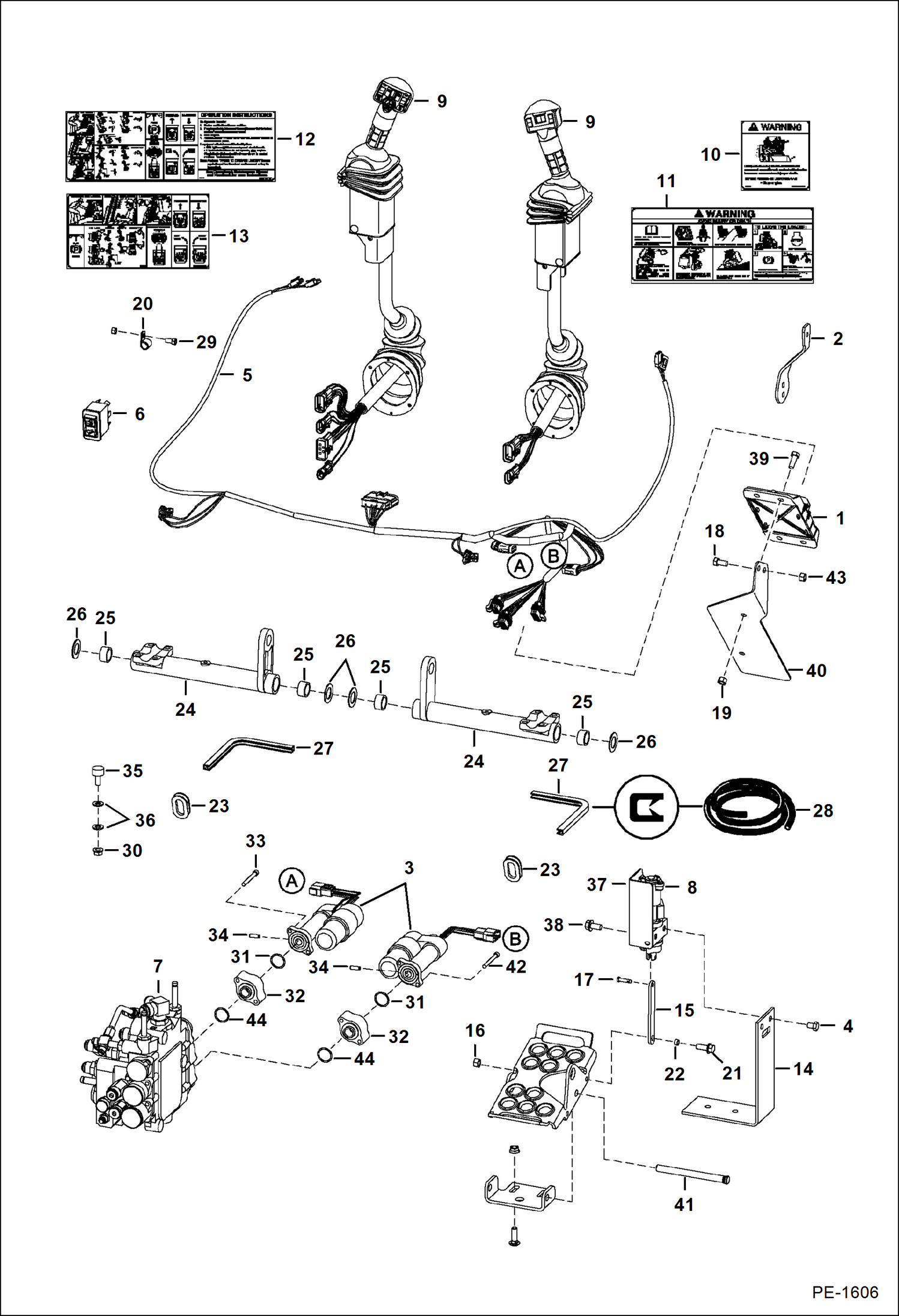

Схема запчастей Bobcat 700s - CONTROLS ELECTRICAL (AHC) (ACS) (S/N 5158 37343 & Above, 5162 22766 & Above) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6680410

CONTROLLER plastic - W/ 3-connector plug - Was 6676337 - A

2

6717393

LEVER throttle

3

ACTUATOR NLA - Use W/Ref. 31 (58K120 O-ring) & Ref. 32 (6725128 adapter) - Order 7101672 actuator & Ref. 32 (7101705 adapter) - Was 6678775 - A

3

ACTUATOR NLA - W/Ref. 31 (6686220 O-ring) - Use W/Ref. 32 (7101705 adapter) - Was 7103129 - A

3

7101672

ACTUATOR W/Ref. 31 (58K120 O-ring) - Use W/Ref. 32 (7101705 adapter)

4

17C608

BOLT

5

6733430

HARNESS Was 6729023 - A

6

6676537

SWITCH

7

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17115A

8

6684912

SENSOR, FOOT RH See Illustration CONTROLS ELECTRICAL/ PE1553 - Was 6680420 - A

8

6676029

SOLENOID, LOCK SPOOL

8

6684911

SENSOR, FOOT LH See Illustration CONTROLS ELECTRICAL/ PE1553 - Was 6680421 - A

8

6676029

SOLENOID, LOCK SPOOL

9

6684915

LEVER, ACS RH See Illustration CONTROLS ELECTRICAL/ PE1365 - tilt - RH - Was 6680424 - A

9

6684916

LEVER, ACS LH See Illustration CONTROLS ELECTRICAL/ PE1365 - lift - LH - Was 6680423 - A

10

6718706

DECAL, WARNING raising cab

11

6728539

DECAL

12

6727926

DECAL, OPERATION hand & foot controls

13

6727926

DECAL, OPERATION hand & foot controls - Was 6727941 - A

14

7126869

BRACKET Was 6726573 - A

15

6726681

LINK

16

95D5

NUT

17

6727496

PIN

18

17C612

BOLT 5

19

95D6

NUT

20

30H62

CLIP

21

17C514

BOLT

22

6729467

SPACER

23

6714726

GROMMET

24

6716977

BELLCRANK

25

6673710

BEARING, NEEDLE

26

6716916

WASHER plastic

27

MOULDING NLA - 10.5''(266,7 mm) long - Order Ref. 28

28

6654139

MOULDING bulk - sold per foot

29

84G3710

SCREW

30

98D6

NUT

31

58K120

O-RING Use W/Ref. 3 (NLA/ 6678775 actuator & 7101672 actuator)

31

6686220

O-RING Use W/Ref. 3 (NLA/ 7103129 actuator)

32

6725128

ADAPTER actuator - W/ O-ring groove - Use W/Ref. 3 (NLA/ 6678775 actuator)

32

7101705

ADAPTER, ACTUATOR W/O O-ring groove - Use W/Ref. 3 (NLA/ 7103129 actuator & 7101672 actuator)

33

69G436

BOLT

34

7108236

PIN Was 6718506 - A

35

6673789

BEARING

36

25E17

WASHER 5

37

6680478

SHIELD RH - Was 6727231 - A

37

6680479

SHIELD LH - Was 6727284 - A

38

43C408

BOLT

39

17C616

BOLT 5

40

6727580

MOUNT controller

40

6727580

MOUNT

41

6564657

PIN

42

29G416

BOLT

43

61D6

NUT 5

44

58K127

O-RING, 10
