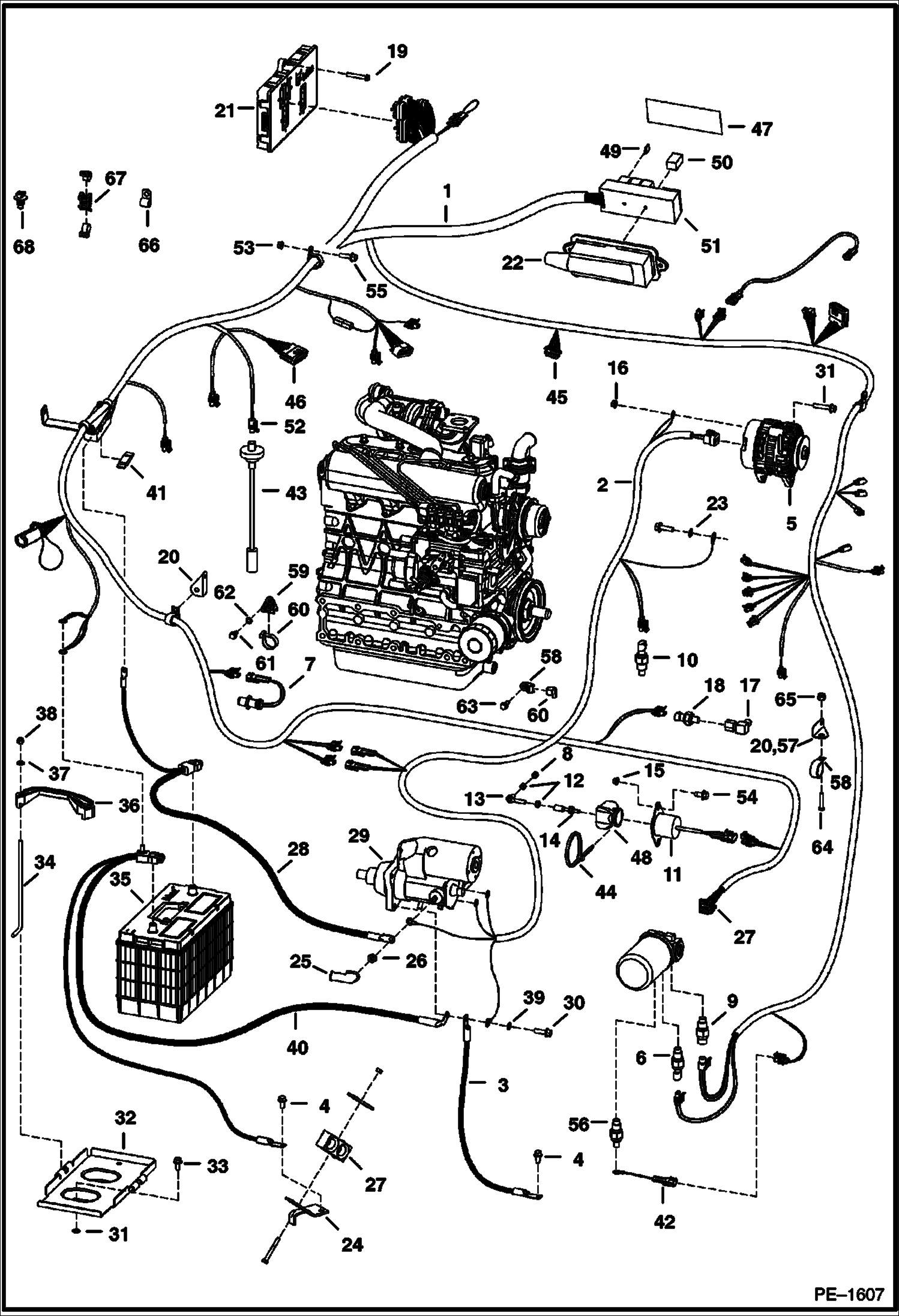

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY (S/N 5158 35000 & Above, 5162 22000 & Above) ELECTRICAL SYSTEM

1

6729055

HARNESS, MFR main frame - W/Ref. 20 - 4-connectors for controller

1

6729962

HARNESS, MFR main frame - 4-connectors for controller

1

7101088

HARNESS, MFR main frame - 2-connectors for controller - Was 6732801 - A

2

6726601

HARNESS starter/alt.

2

7101311

HARNESS starter/alt. - Was 6729973 - A

3

6565170

CABLE neg

4

84G3712

BOLT 5

5

ALTERNATOR See Illustration ALTERNATOR/ C3312

6

6727869

SENDER,HYD TEMP

7

6684037

SENSOR rpm - Was 6658260 - A

8

66D4

NUT

9

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

10

6718415

SWITCH eng. temp.

11

6681513

SOLENOID fuel shut off - Was 6667993 - A

12

62D4

NUT

13

6578363

ROD END swivel

14

6578366

BALL JOINT

15

61D4

NUT 5

16

43DM8

NUT

17

6707040

ELBOW

18

6674315

SENSOR eng oil pressure

19

43C616

BOLT

20

6714979

BRACKET Use W/Ref. 1 (6729055 Harness)

21

CONTROLLER See BTI339 NLA - Bobcat - Was 6678068 - A

21

CONTROLLER NLA - Bobcat - 4-connector - W/O Boost - Was 6678673 - A

21

6682421

CONTROLLER, BOBCAT Bobcat - 4 conector - w/ boost

21

6678674

CONTROLLER Bobcat - 2-connector

21

CONTROLLER See Illustration CONTROLS ELECTRICAL/ PE1042 BOBCAT - AHC & ACS OPTION

22

6718659

HOUSING fuse - boot

23

6E5

WASHER

24

6715131

BRACKET Was 6727508 - A

25

6560172

COVER

26

4DM10

NUT

27

6715197

CLAMP

28

6727528

CABLE See Illustration STARTER/ D2297 POS. - USE W/STARTER

28

6731256

CABLE See Illustration STARTER/ B16488R - pos - Use W/starter

29

STARTER See Illustration STARTER/ D2297 See BTI342

30

35C620

BOLT 5

31

616783

WASHER

32

6718260

BATTERY PAN

33

84G3716

SCREW 5

34

6576280

BOLT

35

6674687

BATTERY, DRY 600 AMP

36

6569203

CLAMP

37

25E15

WASHER

38

59D5

NUT 5

39

6E6

WASHER

40

6729008

CABLE ground

41

6675155

FUSE, 100A mega

41

6675154

HOLDER high amp fuse

42

6728626

HARNESS

43

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

43

6717579

GASKET

44

6610510

TIE

45

6676400

CONNECTOR 16 pin

46

6677216

CONNECTOR 16 pin

47

6718774

DECAL See Illustration PANELS/ B16483 2 in. x 7 in. (50,8 mm x 177,8 mm)

48

6664286

BOOT Also Order Ref. 44

49

6654806

FUSE, 15A

49

6702444

FUSE 25A 5

49

6718034

FUSE, 30A

50

6679820

RELAY relay - Was 6674376 - A

51

6673200

FUSE BLOCK

52

6646383

CONNECTOR fuel sender

52

6648330

TERMINAL female

53

95D6

NUT Was 91D000006B - A

54

17C410

BOLT 10

55

35C616

BOLT 5

56

6660260

SWITCH Was 6674376 - A

57

6714979

BRACKET Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

58

6678667

MOUNT Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

59

6678818

MOUNT Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

60

6624289

STRAP, TIE Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

61

1CM825

BOLT Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

62

25E14

WSHR Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

63

1CM870

BOLT Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

64

17C516

BOLT Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

65

85D5

NUT 5 Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

66

30H60

CLIP Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

67

6678668

STRAP, DUAL TIE Use W/Ref. 1 (6729962 Harness and/or 6732801 Harness)

68

6678666

MOUNT, STRAP TIE push in - Use W/tie strap
