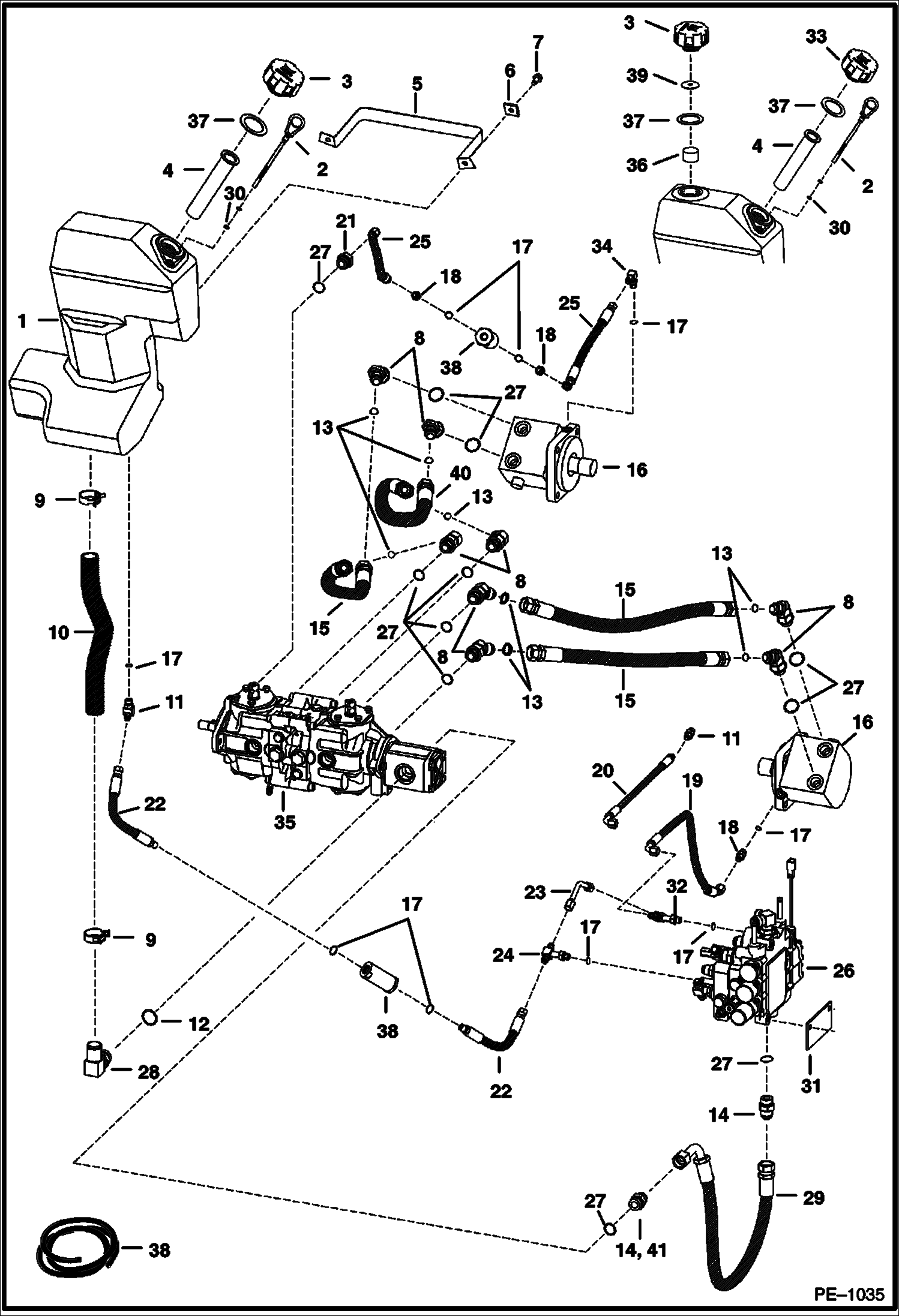

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY (S/N 515830001-515844249, 516220001-516226049) HYDROSTATIC SYSTEM

1

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE1777 NLA - .93'' I.D. suction outlet - W/vented fill cap & breather cap - Order 6732278 tank,6728149 cap, 6701552 baffle, 6700631 gasket, 6703427 foam fi

2

6577459

DIPSTICK W/Ref. 30

3

6727475

CAP, OIL HYD breather - Also Order Ref. 37 - Use W/Ref. 1 tank W/vented fill cap and breather cap - Was 6577785 - B

3

6727475

CAP, OIL HYD breather - Also Order Ref. 37 - Use W/Ref. 1 tank W/vented fill cap

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6718518

BAND

6

6559447

WASHER

7

84G3712

BOLT 5

8

6714902

ELBOW W/Ref. 27 - flat boss face - face seal - Was 52E001212B - A

8

6737453

ELBOW W/Ref. 27 - check boss face to determine correct replacement O-ring - mega seal - Was 6718181 - A

9

5HM42

HOSECLAMP constant tension

9

6672281

CLAMP constant torque

10

6718354

HOSE 1.25'' (31,8 mm) I.D. - 10.32'' x 12.00'' (262,1 mm x 304,8 mm)

10

7104917

HOSE 1.25'' (31,8 mm) I.D. - 6.72'' x 10.55'' (170,7 mm x 268,0 mm)

11

ELBOW NLA - W/Ref. 17 - tapered boss face - Was 18KV00005B - A

11

97K6

O RING flared end

11

18KB0606

FITTING, HYD ELBOW W/Ref. 17 - flat boss face

12

99K16

O-RING tapered boss face

12

79K16

O RING 10 flat boss face

13

58K018

O-RING 10 Use W/Ref. 8 (52E1212 elbow)

14

ADAPTER NLA - W/Ref. 27 - tapered boss face - Was 15KV00008B - A

14

97K12

O'RING flared end

14

15KB1212

FITTING, HYD CONNECTOR W/Ref. 27 - flat boss face - Was 6812646 - A

15

6671619

HOSE face seal - Use W/Ref. 8 (52E-1212 Elbow)

15

6726378

HOSE mega seal - Use W/Ref. 8 (6718181 Elbow)

16

MOTOR See Illustration HYDROSTATIC MOTOR/ C3431

17

99K6

O RING tapered boss face

17

79K6

O RING 10 flat boss face

18

ADAPTER NLA - W/Ref. 17 - tapered boss face - Was 15KV00005B - A

18

97K6

O RING flared end

18

15KB0606

FITTING, HYD CONNECTOR W/Ref. 17 - flat boss face

19

6715251

HOSE

20

HOSE NLA - Order Ref. 18 & 19 - Was 6707234 - A

21

ADAPTER NLA - W/Ref. 27 tapered boss face - Was 6715186 - A

21

97K6

O RING flared end

21

15KB0612

FITTING, HYD CONNECTOR W/Ref. 27 flat boss face

22

6725192

HOSE Was 6719654 - A

23

6577690

TUBE

24

6805696

TEE W/Ref. 17

24

97K6

O RING flared end

25

HOSE NLA - 13.5'' (342,9 mm) long - Order 6730769 Hose - Was 6712414 - A

25

6730769

HOSE 14.5'' (368,3 mm) long

26

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17113 HYD. CONTROL - W/REF. 23, 24 & 32

27

99K12

O RING tapered boss face

27

79K12

O RING 10 flat boss face

28

6715191

ELBOW W/Ref. 12 - check boss face to determine correct replacement O-ring

29

HOSE NLA - 29''(736,6 mm) long - Order 6729154 Hose - Was 6714594 - D

29

6729154

HOSE, HYD ASSY 31''(787,4 mm) long - Was 6714594 - A

30

25K20010

O RING 10

31

25K20010

O RING 10 cover - used on outside of main frame

32

6805243

TEE W/Ref. 17

32

97K6

O RING flared end

33

6728149

CAP , HYD NON VENTED fill - Also Order Ref. 37 - Use W/Ref.1 tank W/vented fill cap & breather cap - Was 6532508 - A

34

ELBOW NLA - W/Ref. 17 - tapered boss face - Was 17KV00005B - A

34

97K6

O RING flared end

34

17KB0606

FITTING W/Ref. 17 - flat boss face

35

PUMP See Illustration HYDROSTATIC PUMP/ D2377

36

6701552

BAFFLE Use W/Ref. 1 tank W/vented fill cap & breather cap

37

6700631

GASKET Use W/Ref. 1 tank W/vented fill cap & breather cap

37

6700631

GASKET Use W/Ref. 1 tank W/vented fill cap

38

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

39

6703427

FOAM FILTER

40

6661076

HOSE face seal - Use W/Ref. 8 (6714902 Elbow)

40

6726379

HOSE mega seal - Use W/Ref. 8 (6737453 Elbow)

41

ELBOW NLA - W/Ref. 27 - tapered boss face - Use W/Ref. 1 tank W/vented fill cap & breather cap - Was 18KV00008B - A

41

97K12

O'RING flared end

41

18KB1212

FITTING, HYD ELBOW W/Ref. 27 - flat boss face
