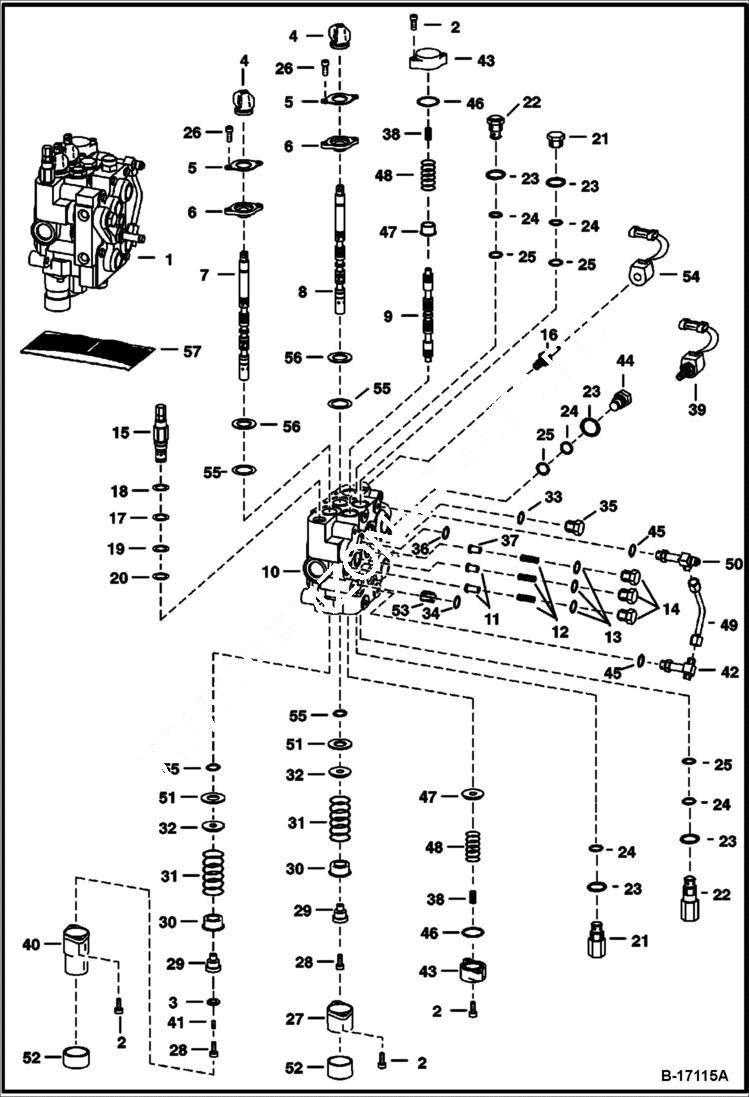

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE (ACS) (W/BICS Combo Valve) (S/N 5158 35001-41999, 5162 22001-24999) HYDRAULIC SYSTEM

1

VALVE See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

VALVE See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

2

29G416

BOLT

3

54K20002

O'RING 10

4

6587763

BOOT

5

6589564

RETAINER

6

6589565

BUSHING seal

7

SPOOL NLA - lift - # 1 or Red - Order 7108251 - Was 6677660 - A

7

SPOOL NLA - lift - # 2 or Green - Order 7108251 - Was 6677661 - A

7

7108251

SPOOL, LIFT Was 7101151 - A

8

SPOOL NLA - tilt - # 1 or Red - Order 7108242 - Was 6677662 - A

8

SPOOL NLA - tilt - # 2 or Green - Order 7108242 - Was 6677663 - A

8

7108242

SPOOL, TILT

9

6588074

SPOOL auxiliary

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

COVER NLA - main relief - W/Ref. 17-20 2025 PSI - pressure preset in factory - Was 6678571 - A

15

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

16

6666616

STEM

17

58K017

O-RING 10

18

6665569

WASHER back-up

19

25K20016

O RING 10

20

6665570

RING glide

21

6678574

RELIEF VALVE port relief - 3400-3600 PSI - W/Ref. 23 & 24-Was 6673184 - A

22

6667549

VALVE anti-cavity check -W/Ref. 23-25

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required

25

6677106

O-RING back-up washer not required

26

29G412

BOLT

27

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

28

30G416

BOLT

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING

32

7211397

WASHER, SPRING Was 6587523 - A

33

95K12

O-RING tapered boss face - Was 99K000012B - B

33

75K12

O'RING 10 flat boss face

34

55K212

O RING 10

35

PLUG NLA - W/Ref. 33 - socket head - tapered boss face - Was 90KV00008B - A

35

90K8

PLUG W/Ref. 33 - socket head - flat boss face

36

55K204

O RING 10

37

6596569

SEAT

38

6806007

SPRING white

39

6653395

VALVE, SOLENOID solenoid - W/Ref. 16 & 54

39

6586459

SEAL KIT

40

6803092

BONNET .625'' flange

41

6801167

PLUG plastic - 0.69'' long

42

6805696

TEE W/Ref. 45

42

97K6

O RING flared end

43

6588781

END CAP

44

6592720

PLUG W/Ref. 23-25

45

99K6

O RING tapered boss face

45

79K6

O RING 10 flat boss face

46

58K124

O RING 10

47

7108780

SLEEVE Was 6595951 - A

48

6596332

SPRING

49

6577690

TUBE

50

6817552

CROSS W/Ref. 45 - flat boss face - Was 6805241 - B

50

97K6

O RING flared end

51

6595663

BUSHING

52

6662848

CAP

53

6534630

RESTRICTOR .183/.187

54

6666547

COIL

55

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

56

1K127

O-RING 10 Was 93K127 - A

57

6816250

KIT, SEAL one spool - Ref. 2, 3, 4, 26, 55 & 56 - Was 6803605 - A

57

6632279

KIT, SEAL main relief - Ref. 17-20 - main relief

57

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

57

6816253

KIT, SEAL complete - Ref. 2, 4, 13, 17-20, 23-26, 34, 36, 46, 55 & 56 - Was 6809448 - A
