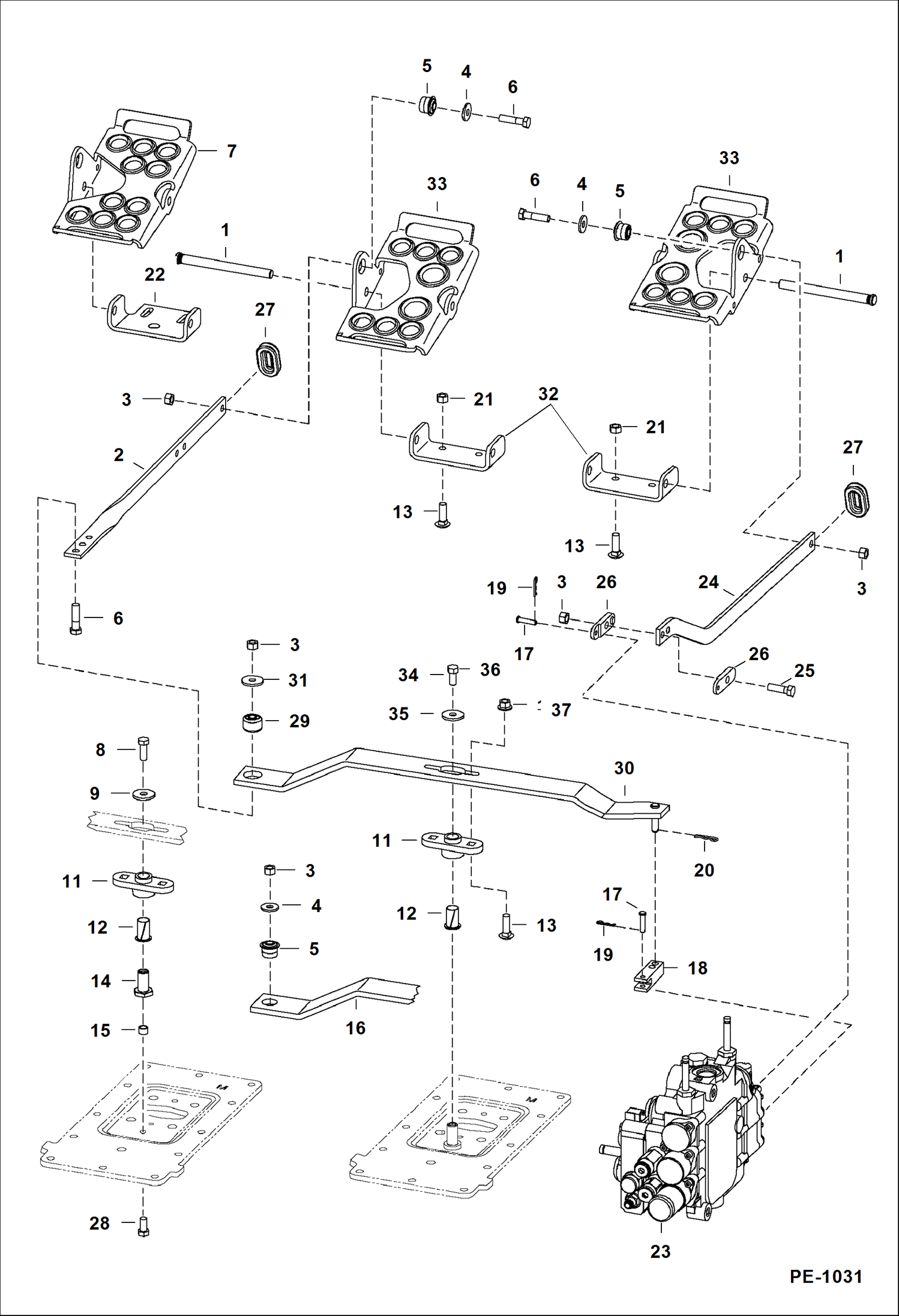

Запчасти Bobcat 700s CONTROL PEDALS HYDRAULIC SYSTEM

1

6564657

PIN

2

6576302

BAR

3

95D6

NUT

4

6563914

WASHER 1'' OD x .378'' ID

5

6665701

BUSHING, PRESS FIT .89'' (22,6 mm) OD

6

17C624

BOLT 5 3/8 x 1.5'' - grade 8

7

PEDAL NLA - Order Ref. 33 - Was 6726680 - A

8

6665839

BOLT

9

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

10

83D6

NUT 5

11

6708043

BUSHING flange

12

6512026

BUSHING

13

37C620

BOLT

14

6706104

RETAINING NUT

15

6544654

BUSHING spacer

16

6717945

LEVER flat sided - bushing hole ID .875'' (22,22 mm)

17

PIN NLA - Was 6564654 - A

18

6706105

YOKE

19

6513495

COTTER PIN

20

1306637

CLIP

21

57D6

NUT 5

22

6726679

MOUNT

23

VALVE

24

6577813

BAR W/slotted holes

24

6717820

BAR W/O slotted holes

25

17C620

BOLT

26

6708009

LINK 2.69'' (68,3 mm) long

27

6577961

GROMMET

28

35C612

BOLT

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A

30

6733942

LEVER notched side - bushing hole ID 1.048'' (26,6 mm)

31

6737388

WASHER 1.25'' (31,75 mm) OD

32

7115220

MOUNT

33

7115219

PEDAL Was 6726680 - A

34

17C612

BOLT 5

35

6557831

WASHER 0.15'' thick - 0.88'' OD

36

6563914

WASHER 1'' (25.4 mm) OD

37

6665701

BUSHING, PRESS FIT .89'' (22,6 mm) OD
