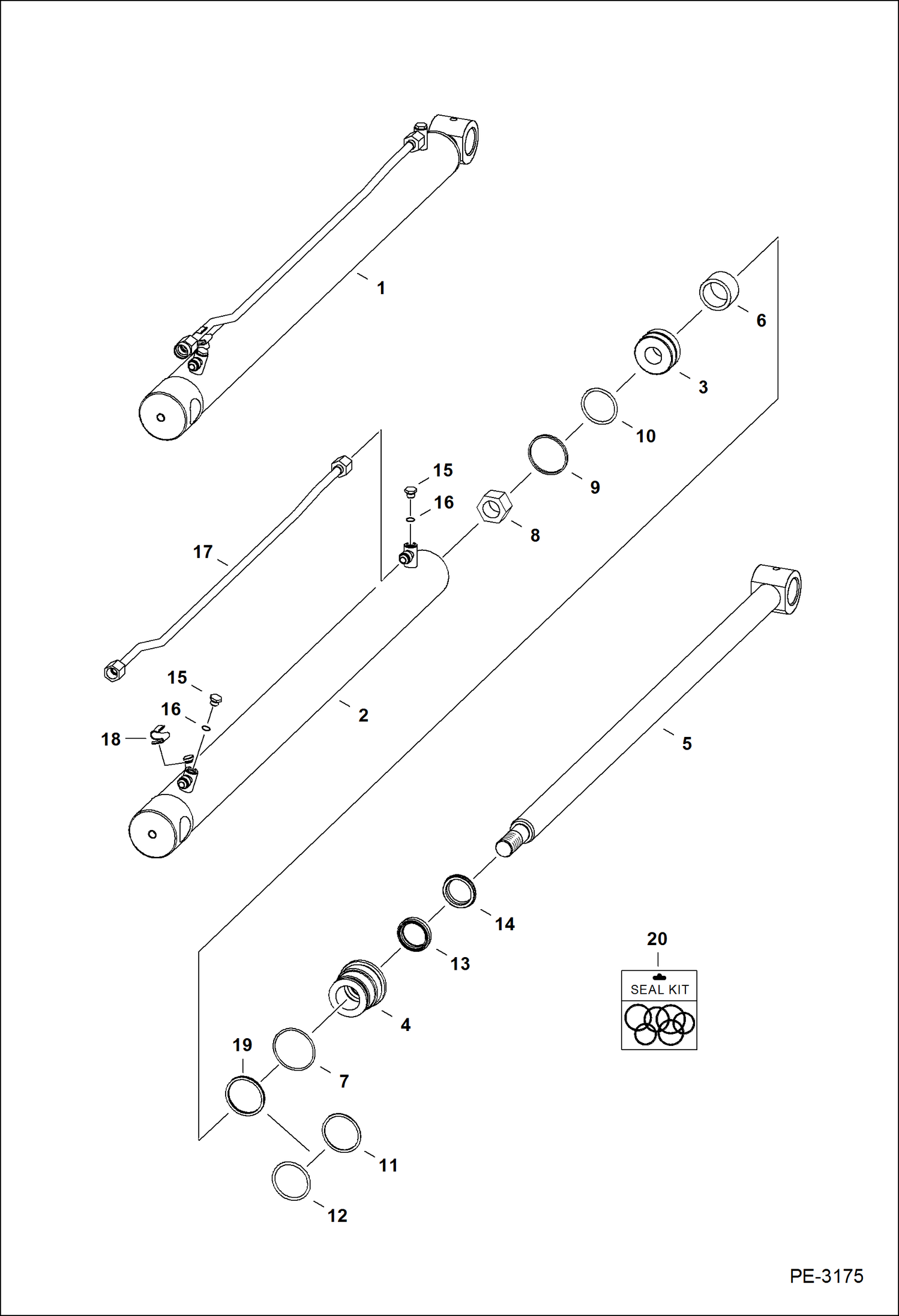

Запчасти Bobcat 700s LIFT CYLINDER (S/N 5158 40212 & Abv, 5162 23852 & Abv) HYDRAULIC SYSTEM

1

6809201

CYLINDER, LIFT Ref. 2 - 18 - W/.5625'' threaded elbows

2

6809209

CASE

3

6677195

PISTON W/Ref. 9 & 10 - W/non-replaceable wear sleeves

4

6539323

HEAD

5

6809759

ROD 32 mm (1.25'') dia

6

6539299

SPACER

7

82K136

O-RING Was 58K136 - B

8

92D14

NUT

9

6516231

SEAL

10

54K30118

O-RING

11

54K40124

O-RING

12

73K224

RING back-up

13

6667324

SEAL rod

14

6665208

SEAL wiper

15

PLUG NLA - W/Ref. 16 - tapered boss face - allen socket head - Was 90KV00002B - A

15

6812170

PLUG W/Ref. 16 - flat boss face - hex head

16

95K3

O'RING tapered boss face

16

75K3

O-RING flat boss face

17

6809202

TUBE

18

6690910

CLAMP snap on

19

7008781

SEAL, QUAD

20

7137770

KIT, SEAL CYLINDER Ref. 7-10, 13, 14, & 19 - Was 6804927 - A
