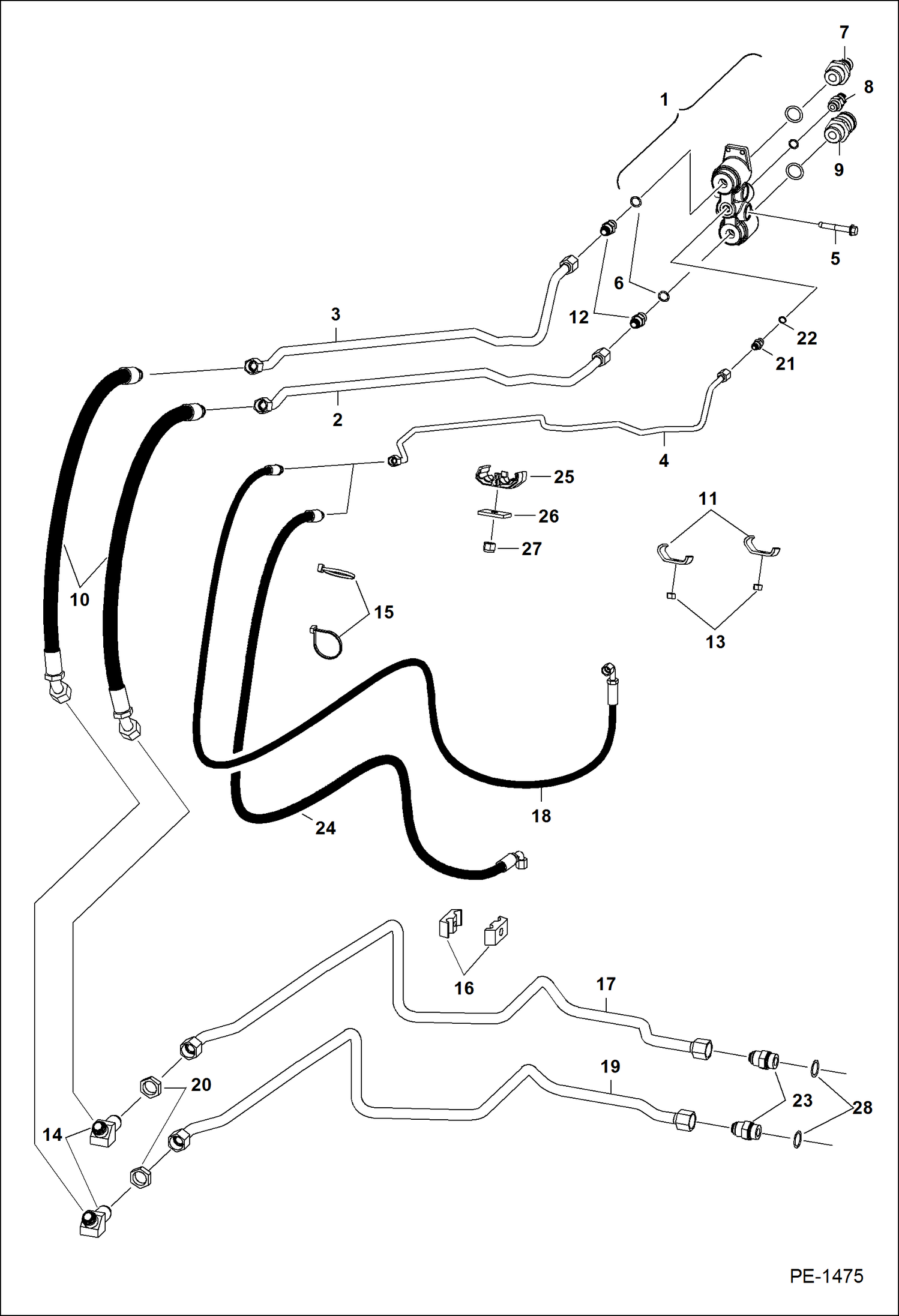

Запчасти Bobcat 700s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6678951

BLOCK ASSY. coupler

2

6731730

TUBE

3

6731731

TUBE

4

6731908

TUBE

5

84G3740

BOLT

6

79K12

O RING 10 flat boss face

6

99K12

O RING tapered boss face

7

6679837

COUPLER coupler - male

7

6679841

SEAL blue

7

6680020

SEAL KIT (3) O-rings & (3) back-up washers

8

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

8

6679840

SEAL

9

KIT coupler - female - FF - Order 6680018 coupler kit - Was 6679839 - A

9

6680018

COUPLER, KIT female - Use W/hydraulic breaker

9

6680020

SEAL KIT (3) O-rings & (3) back-up washers

10

6729153

HOSE W/cover

11

CLAMP NLA - Order Ref. 25-27 - Was 6731732 - A

12

6679835

KIT adapter - W/NSS spring & Ref. 6 - flat boss face

12

97K6

O RING flared end

13

95D6

NUT Was 91D000006B - A

14

ELBOW NLA - tapered boss face - Was 46KN00008B - A

14

97K8

O-RING flared end

14

46K8

ELBOW flat boss face

15

6624289

STRAP, TIE

16

6592506

CLAMP

17

6731729

TUBE

18

6731769

HOSE

19

6731728

TUBE

20

86F8

NUT 5

21

ADAPTER NLA - W/Ref. 22 - tapered boss face - Was 15KV00005B - A

21

97K6

O RING flared end

21

15KB0606

FITTING, HYD CONNECTOR W/Ref. 22 - flat boss face

22

99K6

O RING tapered boss face

22

79K6

O RING 10 flat boss face

23

15KB1212

FITTING, HYD CONNECTOR W/Ref. 6 - flat boss face

24

6732220

HOSE case drain - 91'' (2311,4 mm) long

25

6717951

CLAMP

26

6553709

WASHER

27

59D8

NUT 5
