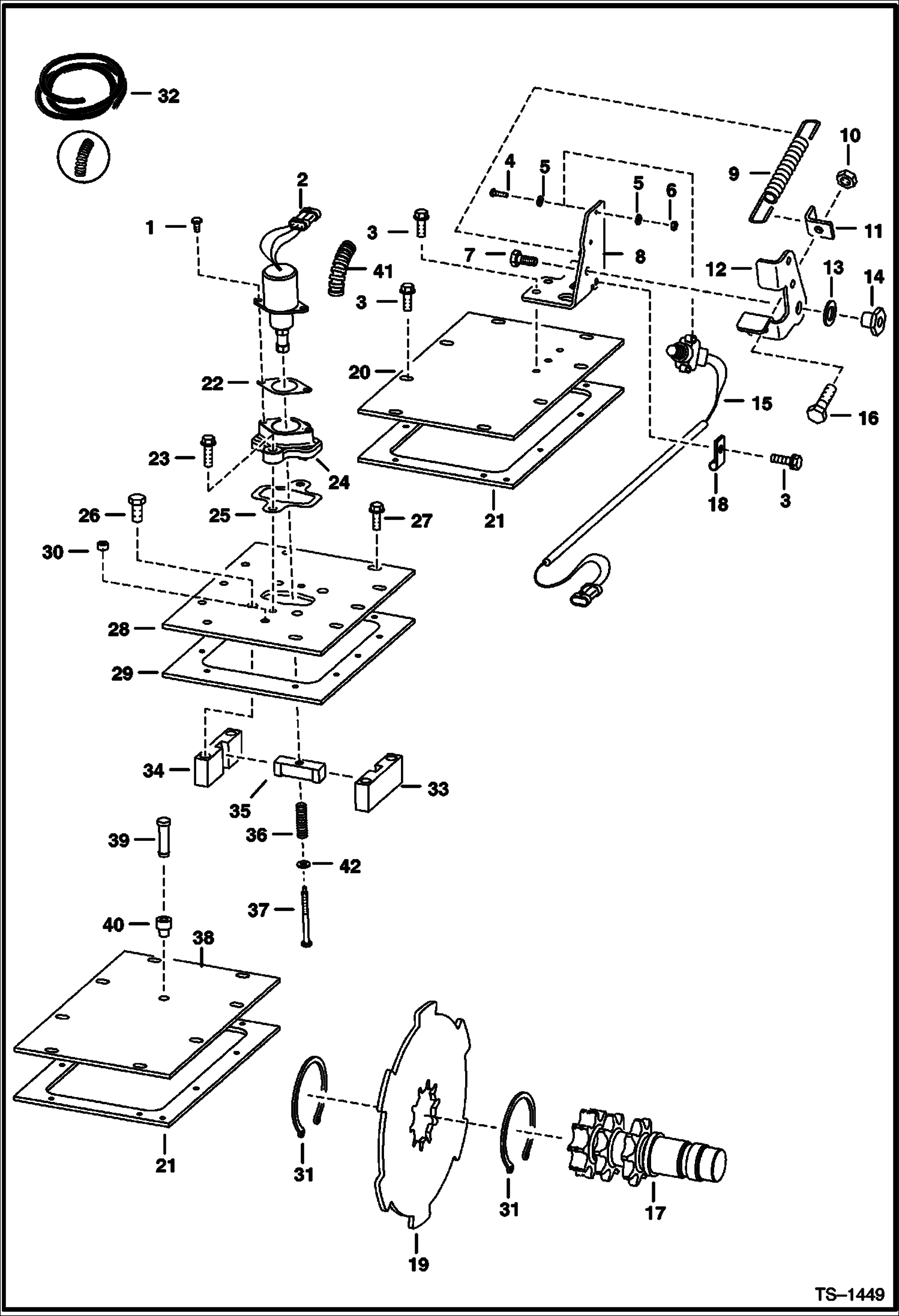

Запчасти Bobcat 700s DISC BRAKE (Non-Flat Top Chaincase) (S/N 515834999 & Below, 516221999 & Below) DRIVE TRAIN

1

17C412

BOLT 5

2

6681512

SOLENOID W/Ref. 41 - Was 6667992 - A

3

84G3712

BOLT 5

4

23G812

SCREW

5

25E8

WSHR

6

12D8

NUT

7

17C610

BOLT

8

6707313

PEDAL MOUNT

9

6585860

SPRING

10

95D6

NUT

11

6707315

ANGLE

12

6707314

PEDAL brake

13

6700170

WASHER plastic

14

6559479

NUT

15

6707337

SWITCH, LOCK TRACTION

16

17C620

BOLT

17

6713456

SHAFT, TRANS See Illustration MOTOR CARRIER/ MC1937

18

30H23

CLAMP

19

7120111

BRAKE, DISC disc - Was 6716228 - A

20

6578505

COVER

21

6703097

GASKET, TRANS COVER

22

6706737

GASKET

23

84G3720

BOLT

24

6706718

MOUNT

25

6708016

GASKET

26

17C820

BOLT

26

47C820

BOLT

27

84G3716

SCREW 5

28

6706042

COVER

29

6706968

GASKET

30

6544654

BUSHING spacer

31

6658672

SNAP RING

32

6584978

CONDUIT bulk - sold per foot

33

6719057

BLOCK guide - RH

34

6719056

BLOCK guide - LH

35

6714278

WEDGE, LOCK TRACTION

36

6708018

SPRING

37

6708267

BOLT

38

6700330

COVER

39

6680970

BREATHER See Illustration MAIN FRAME/ PE1590 WAS 6670627 - A

40

6553411

BUSHING

41

CONDUIT NLA - 5''(127 mm) long - Order Ref. 32

42

25E13

WASHER 5
