Запчасти Bobcat 700s MOTOR CARRIER (Drive Motor Mount Assy) (Single Speed Motor) (W/Speed Sensor) DRIVE TRAIN

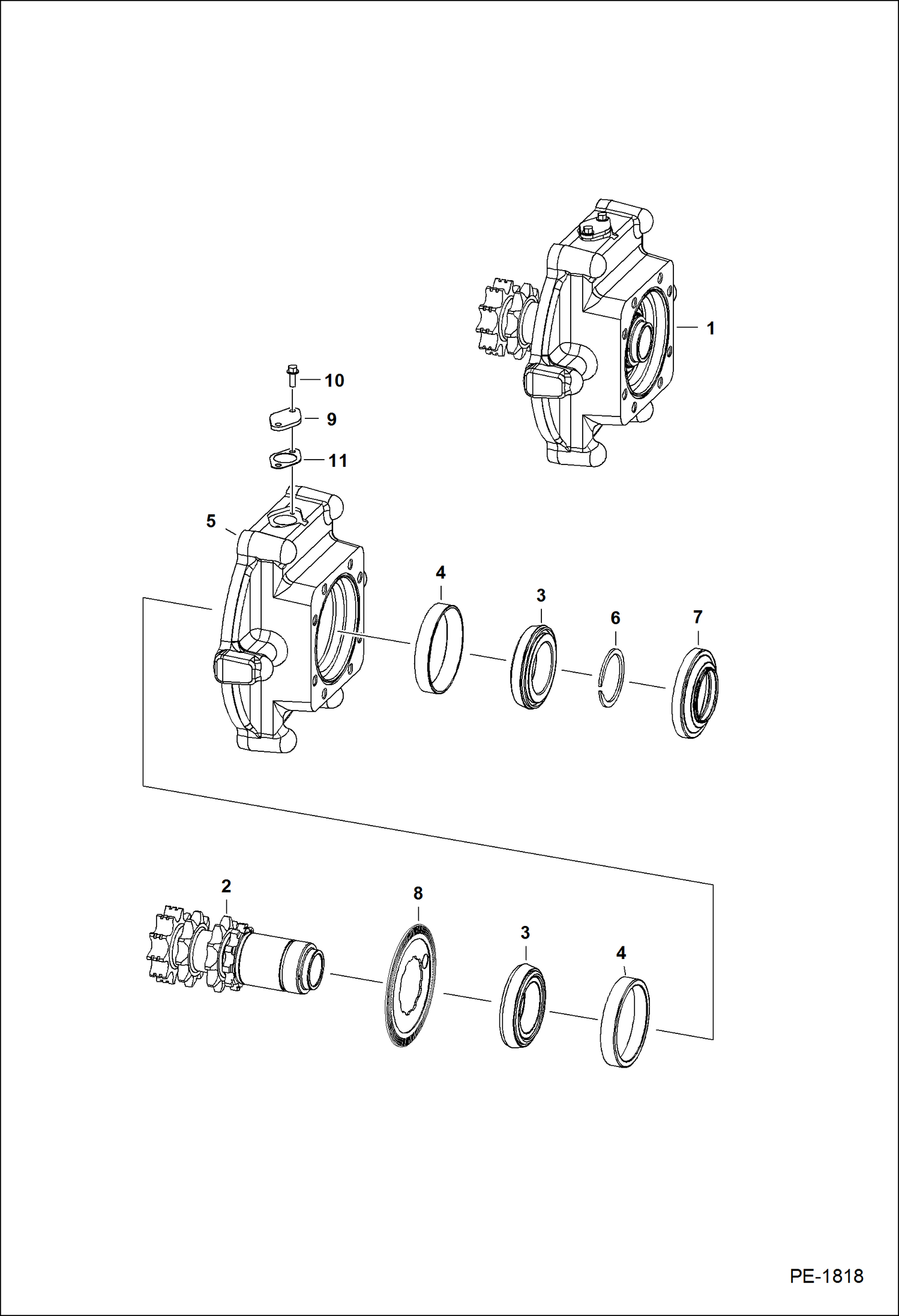

Схема запчастей Bobcat 700s - MOTOR CARRIER (Drive Motor Mount Assy) (Single Speed Motor) (W/Speed Sensor) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7148363

MOUNT ASMBLY drive motor - Ref. 2-11

2

7161187

SHAFT, TRANS double snap ring groove - Was 6733621 - A

3

6632218

CONE, BEARING

4

6632541

RACE

5

HOUSING NLA - Order Ref. 1 - Was 7133921 - A

6

6571851

SNAP RING 0.118'' thickness

6

6571852

SNAP RING 0.125'' thickness

7

6705847

SEAL, OIL

8

6690561

MAGNET speed sensor - Was 6688924 - A

9

6730013

COVER

10

35C412

BOLT

11

7110287

GASKET

Выбрано товаров: 12
