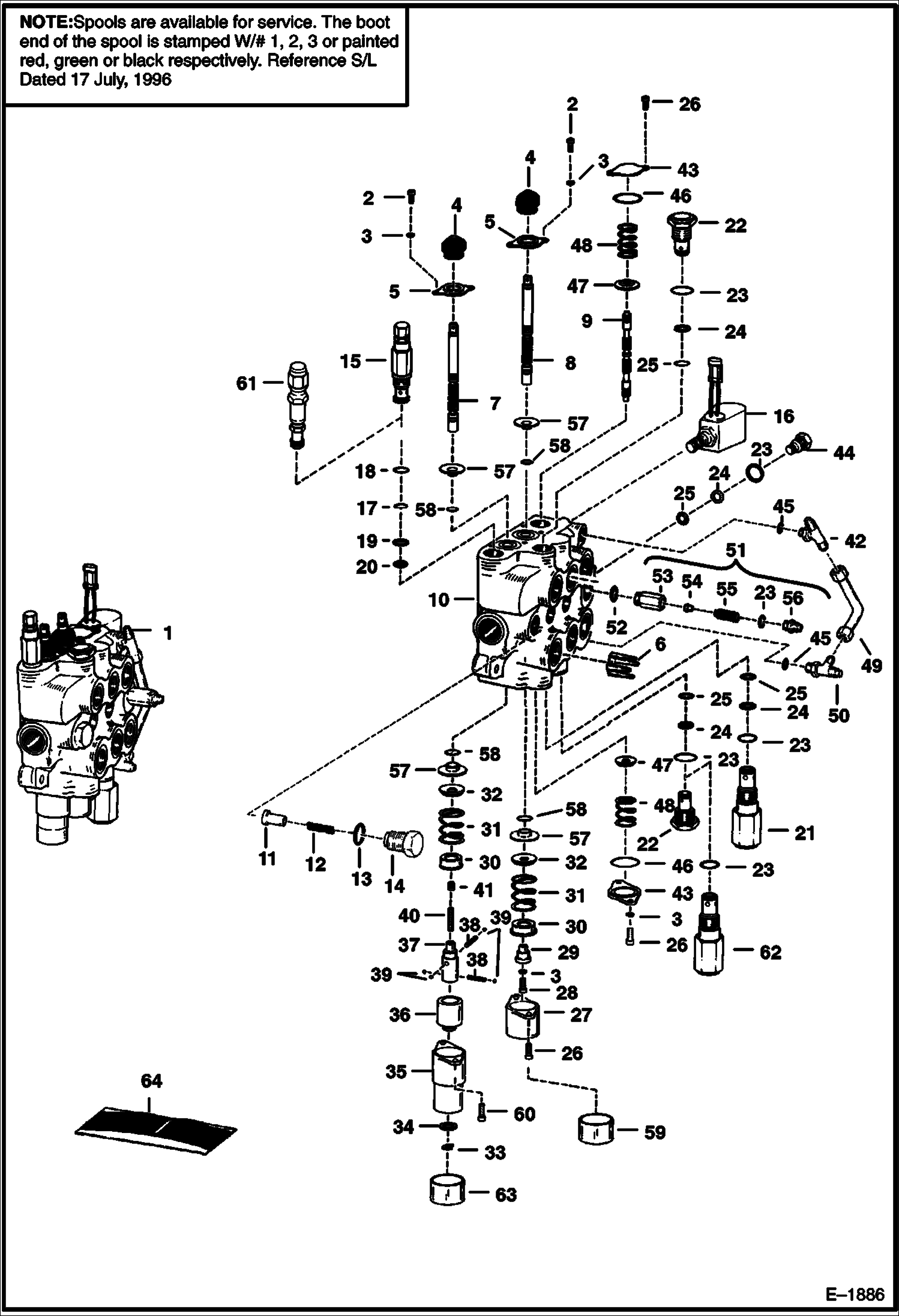

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17196 See BTI307 NLA - Ref. 2-58 - W/long spools - Use W/cold by-pass valve - Was 6586281 - A

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17196 See BTI307 NLA - W/long spools - Was 6586796 - A

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17196 See BTI307 NLA - W/long spools - ''C'' Series W/Fittings - Use W/O cold by pass - Was 6588142 - A

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

6587763

BOOT Was 6583727 - A

5

6592123

RETAINER

6

6534630

RESTRICTOR .134/.141

7

6666576

SPOOL lift - #1 or red - SEE NOTE

7

6666577

SPOOL lift - #2 or green - SEE NOTE

7

6666578

SPOOL lift - (3) black - SEE NOTE

8

6666579

SPOOL tilt - # 1 or Red - SEE NOTE

8

6666580

SPOOL tilt - # 2 or Green - SEE NOTE

8

6666581

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588074

SPOOL aux. - SEE NOTE

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

VALVE NLA - main relief - W/Ref. 17-20 - 2550 - 2600 PSI - Pressure preset at factory - Was 6676196 - A

15

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

16

6653395

VALVE, SOLENOID solenoid

16

6665758

VALVE W/ O-ring

16

79K7

O RING 10

16

6717708

COIL, 14 VOLT 14 volt - W/Nut - Was 6665759 - A

16

6679961

NUT

16

6586459

SEAL KIT For 6653395 Valve - Was 6534559 - A

17

58K017

O-RING 10

18

6665569

WASHER back-up

19

25K20016

O RING 10

20

6665570

RING glide

21

6599161

RELIEF VALVE port relief - 3400-3600 PSI - W/Ref. 23-25

22

6667549

VALVE anti-cavity check - W/Ref. 23-25 - Was 6661345 - A

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

25

6677106

O-RING back-up washer NOT required

26

69G414

BOLT .75'' long - Use W/6538574 End Cap - Was 6588164 - A

26

6588982

SCREW 1'' long - Use W/6588981 End Cap

27

BONNET NLA - W/.25'' flange - Order 6587633 Bonnet, Ref. 59 & (2) 6588164 Screws - Was 6592097 - A

27

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - A

28

6588166

SCREW Was 74G000416B - B

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING Was 6592106 - A

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

BONNET NLA - W/.25'' flange - Order 6589226 Bonnet, 6660644 End Cap & (2) of 6588982 Screws - Was 6592094 - A

35

6589226

COVER, END 0.63'' flange

36

6531270

SLEEVE, DETENT lift

37

6587575

ADAPTER Was 6592099 - A

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW Was 6535747 - A

41

PLUG NLA - plastic - Order 6596807 Plug & 54K020002B O-ring - Was 6592752 - A

41

6596807

PLUG plastic - 0.46'' long

41

54K20002

O'RING 10

42

19K5

FITTING W/Ref. 45

42

TEE NLA - for ''C'' Series valve - W/Ref. 45 - W/O Flared End O-Ring - Was 6587888 - A

42

6805696

TEE for ''C'' Series valve - W/Ref. 45 - W/Flared End O-Ring

42

97K6

O RING Flared End

43

END CAP NLA - .375'' thick - Order 6588981 End Cap & (2) of 6588982 Screws - Was 6538574 - A

43

6588981

END CAP .62'' thick

44

6592720

PLUG W/Ref. 23-25

45

79K6

O RING 10

46

58K124

O RING 10

47

6537096

WASHER Was 6530898 - A

48

6530899

SPRING

48

6588197

SPRING for ''C'' Series valve

49

6577690

TUBE

50

21K5

TEE W/Ref. 45

50

TEE NLA - for ''C'' Series valve - W/Ref. 45 - W/O Flared End O-Rings - Was 6587889 - A

50

6805243

TEE for ''C'' Series valve - W/Ref. 45 - W/Flared End O-Rings

50

97K6

O RING Flared End

51

6662920

VALVE cold by-pass - Ref 23 & 52-56 - 400 PSI - Was 6534983 - A

52

79K12

O RING 10

53

6700524

HOUSING

54

6515078

POPPET

55

6565425

SPRING

56

15K7

FITTING W/Ref. 23

57

6538466

BUSHING Was 6534576 - A

58

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

58

6646372

SEAL See BTI374 quad ring seal

59

6662848

CAP Use W/6587633 Bonnet

60

6588163

SCREW

61

6661225

VALVE main relief - 3250-3350 PSI

62

6664373

VALVE port relief & anti-cav. - W/Ref. 23 - 2500 PSI - use in tilt cylinder base end port - optional

63

6660644

CAP

64

6816250

KIT, SEAL See BTI374 - Ref. 2, 4, 41, 58 & 60 - for one spool - Was 6803605 - A

64

6632279

KIT, SEAL Ref. 17-20 - Was 6532868 - A

64

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

64

6816715

KIT, SEAL See BTI374 - Ref. 4, 13, 16-20, 23-25, 41, 45, 46, & 58 - Was 6596311 - A
