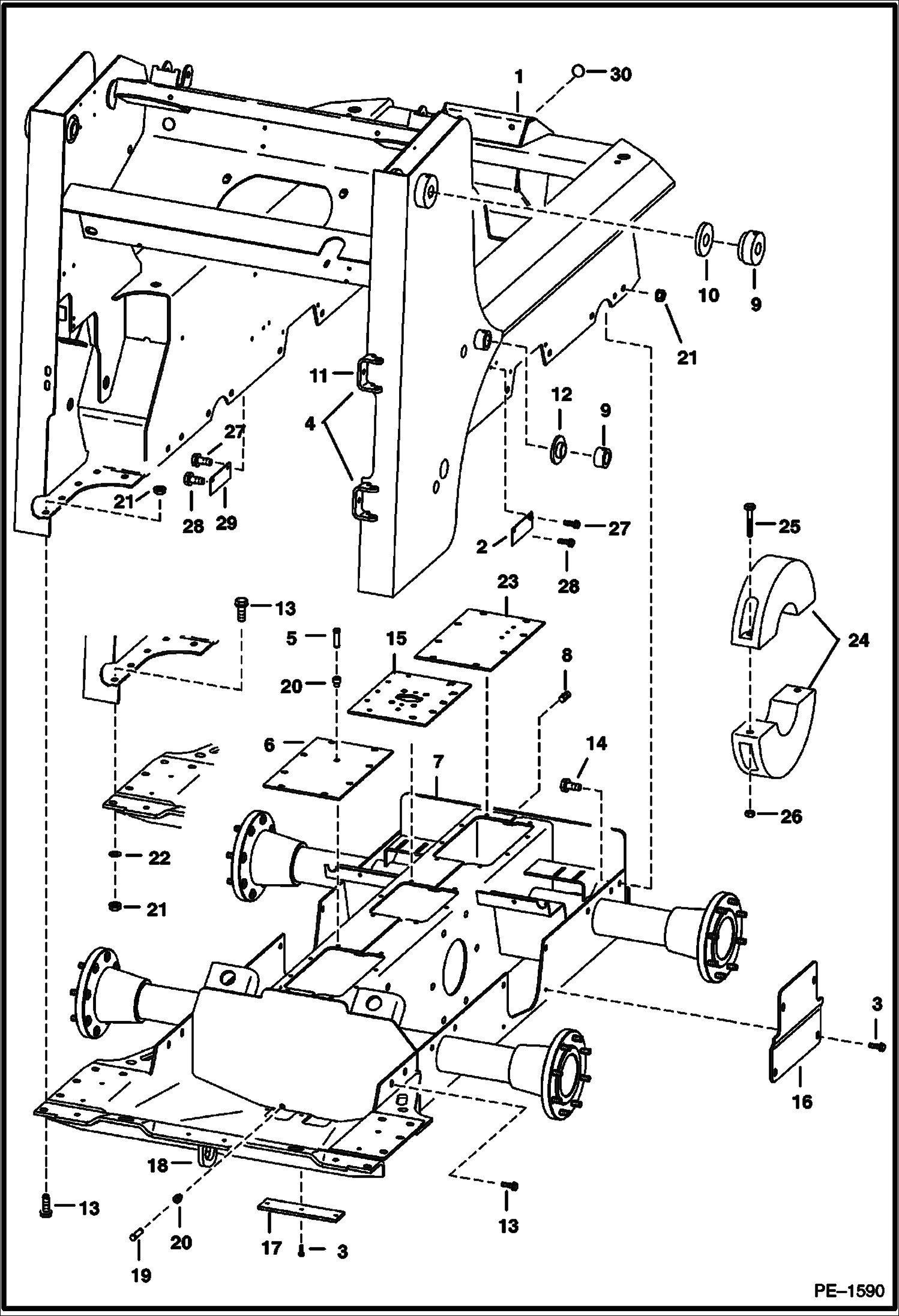

Запчасти Bobcat 700s MAIN FRAME MAIN FRAME

1

MAIN FRAME NLA - Order 6737360 Main Frame, 6736359 Grill, 6736362 Radiator, 6736378 Seal, 6736379 Tank, 7101090 Hose, 6681945 Elbow, 6685625 Hose, 6681945 Elbow, 6685625 Hose, 6732070 Mount, 6733429 C

1

6737360

MAINFRAME

2

6704680

COVER 2 hole mount - 5.16'' x 2.25''

3

84G3712

BOLT 5

4

6708987

HINGE, WELD-ON tailgate

4

6708987

HINGE, WELD-ON Use W/Ref. 11

5

6680970

BREATHER See Illustration DISC BRAKE/ B16484 WAS 6670627 - A

6

6700330

COVER

7

CHAINCASE See Illustration DRIVE TRAIN/ PE2279 See BTI359

8

6731121

PLUG chaincase fill - Was 11F000012B - A

9

6702584

BUSHING, WELD-ON weld on

10

6702583

BUSHING, WELD-ON

11

6577394

BRACKET hinge - top - weld on

12

6555987

BUSHING weld on

13

31C824

BOLT 10

14

31C820

BOLT

15

6706042

COVER See Illustration DISC BRAKE/ B16484

16

6733701

COVER Was 6704695 - A

17

6700182

COVER, DRAIN

18

6706485

HOOK tie down - weld-on

19

6599645

PLUG, STEEL chaincase drain

20

6553411

BUSHING

21

83D8

NUT 5

22

6701097

WASHER 1'' x .519'' ID

23

6578505

COVER See Illustration DISC BRAKE/ B16484

24

6714361

COUNTERWEIGHT, AXLE front - 71,6 kg (38.7 lb) - 114,3 mm (4.5'') wide

25

17C640

BOLT 5

26

61D6

NUT 5

27

84G3110

SCREW RH side - 5/16 x .62''

27

84G3112

BOLT 5 LH side - 5/16 x .75''

27

84G3710

SCREW 3/8 x .62''

28

17C620

BOLT Was 6717378 - A

29

6727837

COVER

29

6727837

COVER

29

6734420

COVER

29

6734420

COVER

30

6718796

PLUG
