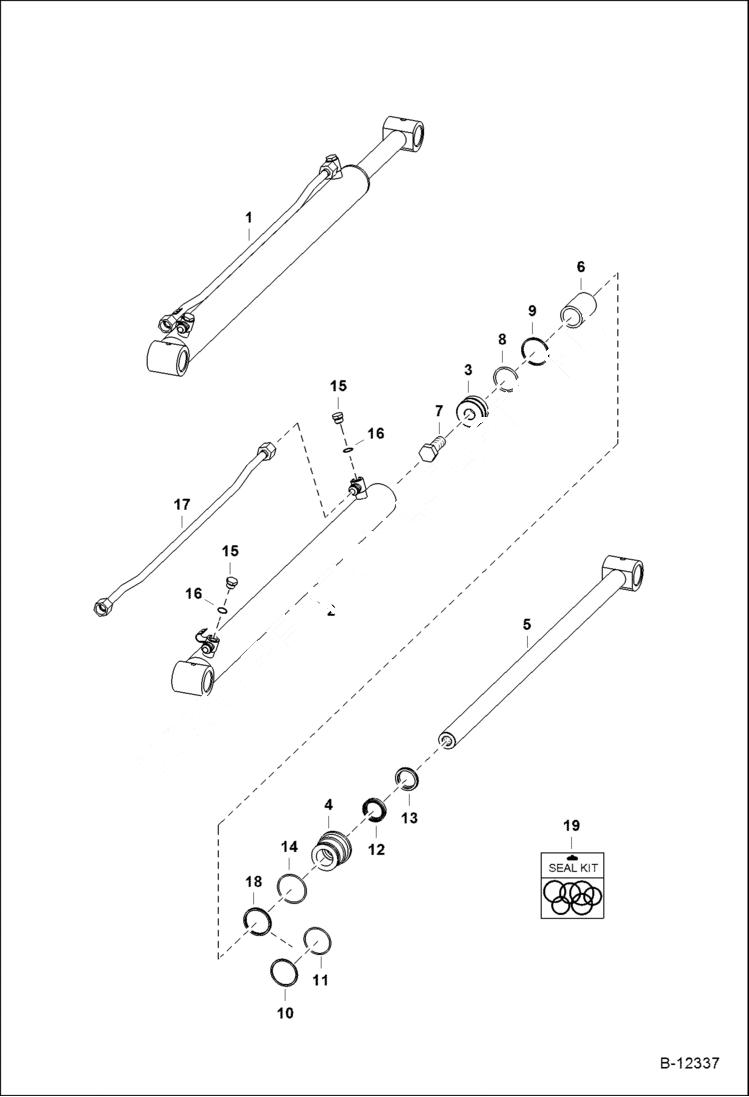

Запчасти Bobcat 700s LIFT CYLINDER HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ TS1097 NLA - Ref. 2-16 - Order 6586575 Cylinder - Was 6531324 - A

2

CASE NLA - Order 6586577 Case & 6586579 Tube - Was 6534497 - A

3

6531328

PISTON Was NLA - D

4

6539323

HEAD Was 6532702 - A

5

ROD NLA - Order 6661694 Piston, 6539299 Spacer, 6539304 Rod & 92D000012B Nut - Was 6531326 - A

6

SPACER NLA - Order 6661694 Piston, 6539299 Spacer, 6539304 Rod & 92D000012B Nut - Was 6531353 - A

7

6536350

BOLT

8

6516231

SEAL piston

9

54K30118

O-RING Was 25K030118B - A

10

54K40124

O-RING Was 25K040124B - A

11

73K224

RING back-up - Was 80K000224B - A

12

6665208

SEAL rod - Was 1657085B - A

13

6667324

SEAL wiper - Was 6665184 - A

14

82K136

O-RING Was 58K136 - B

15

90K5

PLUG W/Ref. 16 - flat boss face - Was 47K000005B - A

15

90KV5

PLUG W/Ref. 16 - tapered boss face

16

79K6

O RING 10 flat boss face

16

95K6

O'RING tapered boss face

17

6586579

TUBE Was 6534498 - A

18

7008781

SEAL, QUAD

19

7137769

KIT, SEAL Ref. 7, 8, 9, 12-14, & 18 - Was 6803329 - A
