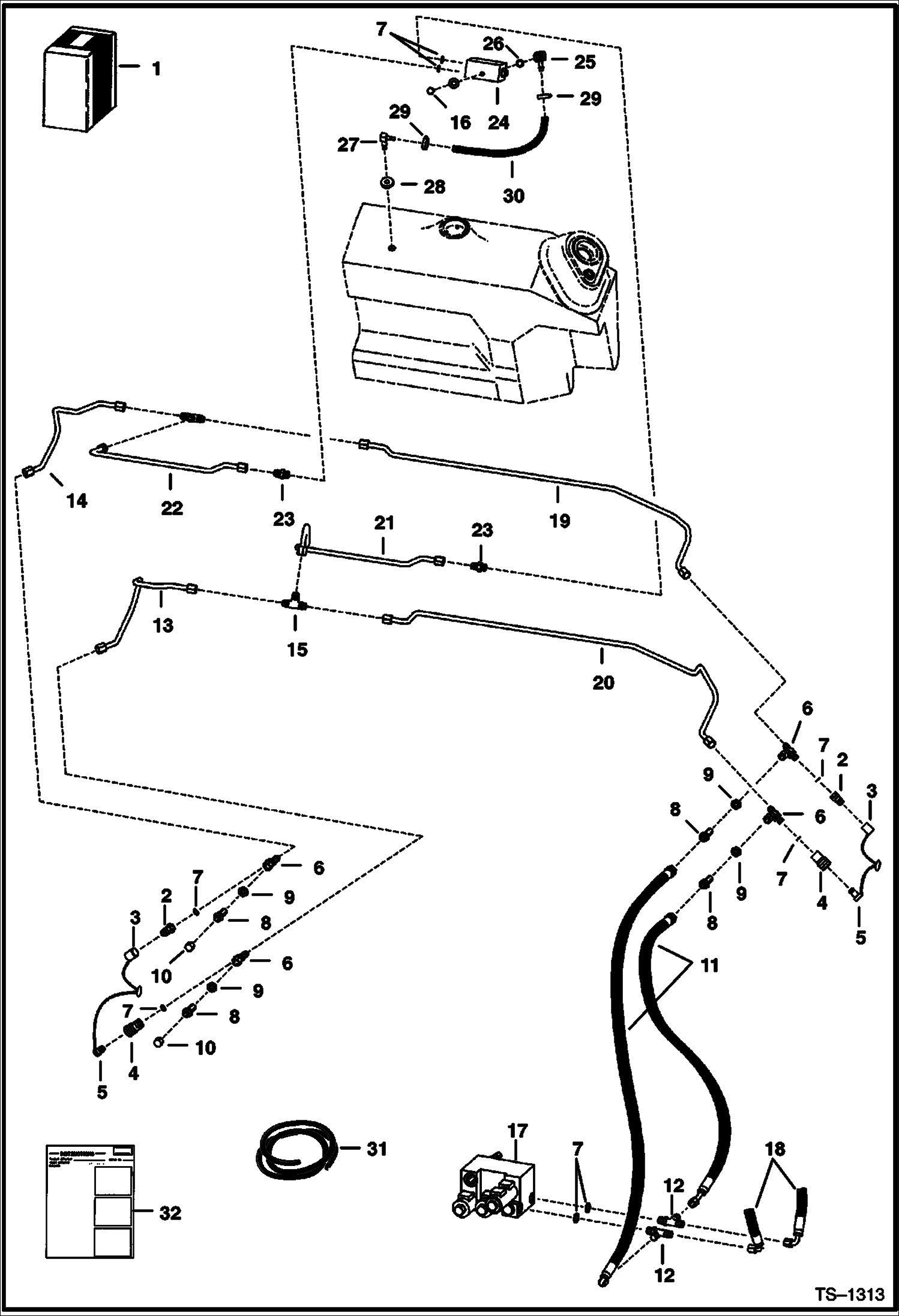

Запчасти Bobcat 700s PRESSURE RELEASE KIT (High Horsepower Hydraulics) ACCESSORIES & OPTIONS

1

KIT NLA - pressure release - Ref. 2-37 - Order components - Was 6710293 - A

2

6648969

QUICK COUPLER male

3

1513549

CAP

4

6648967

QUICK COUPLER male

4

6655795

SEAL KIT

5

1519324

PLUG

6

6706220

TEE W/Ref. 7 - check boss face to determine correct replacement o-ring

7

79K6

O RING 10 flat boss face

7

99K6

O RING tapered boss face

8

51E0404

ADAPTER

9

61E04

NUT

10

63E04

CAP

11

6706089

HOSE

12

21K5

TEE W/Ref. 7

13

6709085

TUBE

14

6709084

TUBE

15

10K5

TEE W/O O-rings

15

10K5

TEE W/ O-rings - Was 10KN00005B - A

15

97K6

O RING flared end

16

17C510

BOLT

17

6662695

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1144 NOT IN KIT

18

HOSE See Illustration HIGH FLOW HYDRAULICS/ TS1247 EXISTING HOSE - REF. 58

19

6709083

TUBE

20

6709082

TUBE

21

6709081

TUBE

22

6709080

TUBE

23

15K5

FITTING W/Ref. 7

24

6666611

VALVE pressure release

25

ELBOW NLA - W/Ref. 26 - flat boss face - Was 6657083 - A

25

6715183

ELBOW W/Ref. 26 - check boss face to determine correct replacement o-ring

26

79K5

O RING 10 tapered boss face

26

99K5

O-RING flat boss face

27

6598908

ELBOW

28

6553411

BUSHING

29

42HS04

CLAMP, HOSE Was 6515575 - A

30

HOSE NLA - 9'' (222,6 mm) long - Order Ref. 31

31

6577821

HOSE bulk - sold per foot

32

6724400

INSTRUCTIONS
