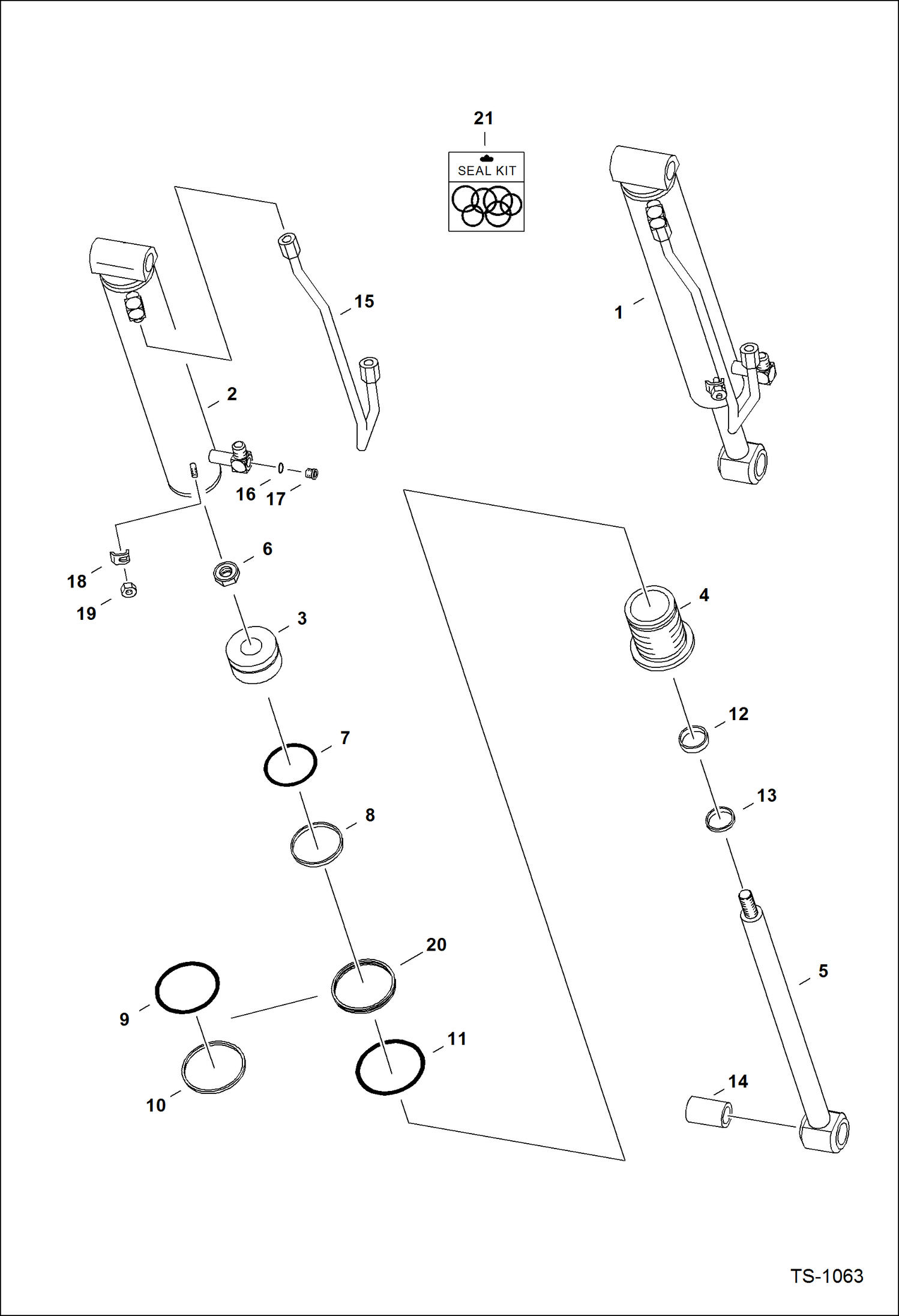

Запчасти Bobcat 700s TILT CYLINDER (W/O Rod Eye Grease Fitting Hole) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ TS1127A NLA - tilt - Ref. 2-19 - Order 6804692 Cylinder - Before ordering repair parts, make sure that this is the correct style cylinder - Was 6539145 - A

2

CASE See Illustration TILT CYLINDER/ TS1127A NLA - Order 6804692 Cylinder - Was 6539147 - A

3

6539146

PISTON 1'' I.D.

4

6539185

HEAD, CYL TILT

5

ROD See Illustration TILT CYLINDER/ TS1127 NLA - Order 6586906 Piston, 6586910 Rod & 6589792 Seal Kit - W/Ref. 14 - Was 6539186 - A

6

92D16

NUT Was 86D000016B - B

7

6513466

PISTON RG piston

8

25K30226

O RING 10 Was 54K30226 - B

9

58K234

O RING 10 Was 54K40300 - B

10

73K234

BACK-UP RING back-up - Was 80K234 - A

11

82K236

O-RING Was 58K000236B - A

12

6667326

SEAL Was 6538141 - A

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

6589665

BUSHING Was 6534387 - A

15

6539144

TUBE

16

79K6

O RING 10 flat boss face

16

95K6

O'RING tapered boss face

17

90K5

PLUG W/Ref. 16 - flat boss face - Was 47K000005B - A

17

90KV5

PLUG W/Ref. 16 - tapered boss face

18

6562266

CLAMP

19

85D6

NUT, 5

20

7008354

SEAL, QUAD

21

7135550

SEAL KIT Ref. 6-9, 11-13, & 20 - Was 6803326 - A
