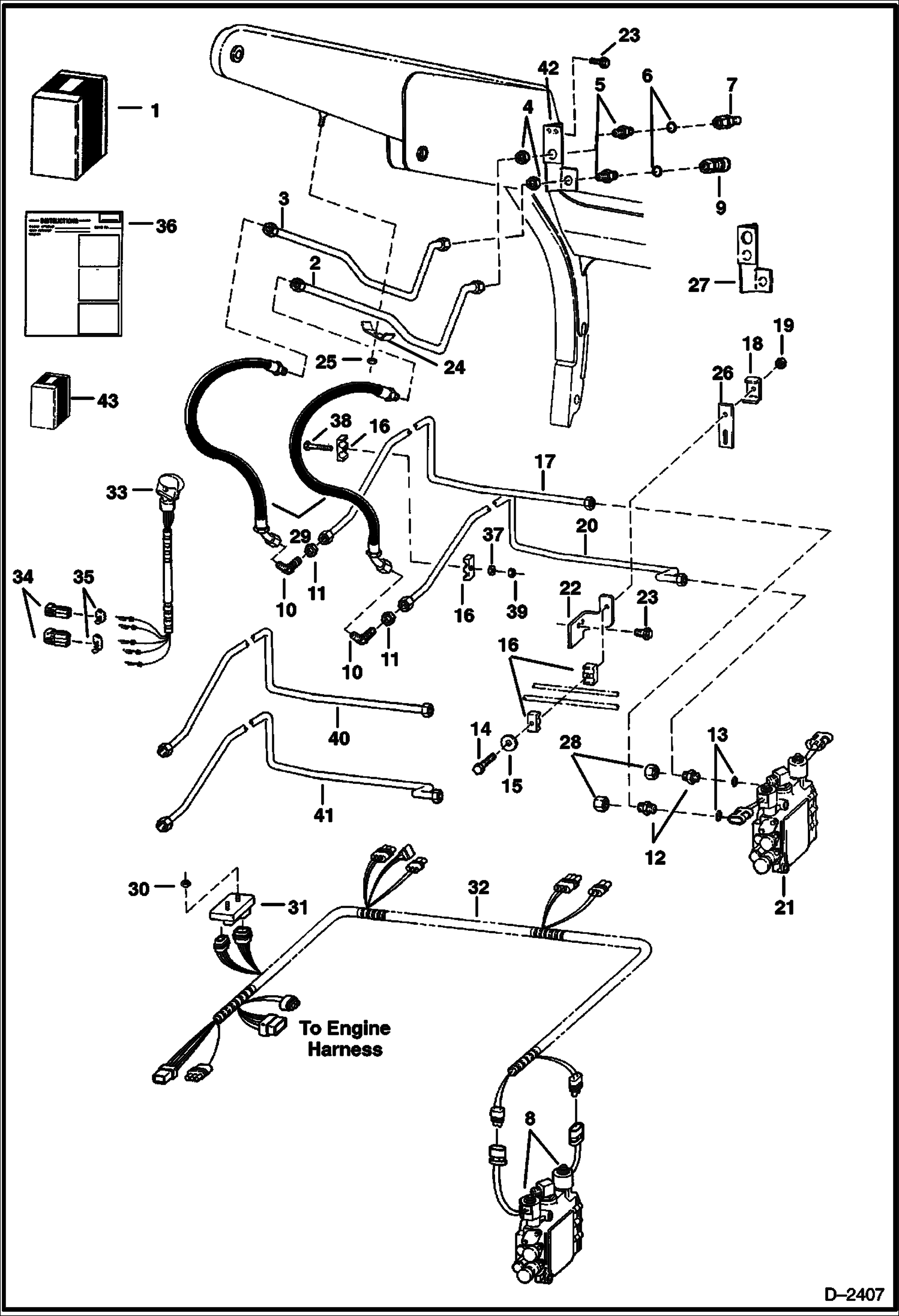

Запчасти Bobcat 700s FRONT AUXILIARY KIT (W/FF Couplers) (S/N 5127 27421 & Abv, 5086 94509 & Abv, 5158 11001-29999, 5162 11001-19999 ACCESSORIES & OPTIONS

1

6712387

KIT front aux - Ref. 2-7, 9-11, 13, 14, 16-18, 20 & 23-39

2

6711735

TUBE

3

6711736

TUBE

4

86F7

LOCK NUT

5

FITTING NLA - W/Ref. 6 - flat boss face - Was 6711625 - A

5

CONNECTOR NLA - W/Ref. 6 - tapered boss face - Was 6715185 - A

5

97K10

O-RING 10 flared end

5

6812816

ADAPTER W/Ref. 6 - flat boss face

6

79K12

O RING 10 flat boss face

6

99K12

O RING tapered boss face

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

6717708

COIL, 14 VOLT 14 volt - Was 6665759 - A

8

6679961

NUT W/nut

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

46K8

ELBOW W/O O-rings

10

ELBOW NLA - W/ O-rings - Was 46KN00008B - A

10

97K12

O'RING flared end

11

86F8

NUT 5

12

ADAPTER W/Ref. 6 - Not in Kit

13

79K12

O RING 10

14

17C552

BOLT

15

872229

WASHER Not in Kit

16

6592506

CLAMP

17

6713754

TUBE

18

6568476

CLAMP

19

85D5

NUT 5 Not in Kit

20

6713755

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2229 NOT IN KIT

22

6704619

MOUNT Not in Kit

23

84G3112

BOLT 5

24

6502203

CLAMP

25

59D6

NUT

26

6702548

PAD

27

MOUNT NLA - Order Ref. 42 - Was 6711672 - A

28

36K8

CAP

29

6729153

HOSE Was 6714577 - A

30

85D4

NUT 5

31

6671669

MODULE, CONTROL AUX Was 6669529 - C

32

6719149

HARNESS Was 6712136 - A

33

6680414

HANDLE ASSY. Was 6705921 - A

33

6640690

PIN

33

6641176

SEAL

34

6641179

CONNECTOR 2-pin

34

6640699

CONNECTOR 3-pin

35

6641180

LOCK Use W/ 2-pin connector

35

6640700

LOCK 3-pin

36

6724529

INSTRUCTIONS Was 6724525 - B

37

872229

WASHER

38

37C540

BOLT

39

83D5

NUT 5

40

TUBE NLA - Order Ref. 17 & 20 - Was 6710575 - A

41

TUBE NLA - Order Ref. 17 & 20 - Was 6710579 - A

42

6713850

MOUNT

43

6718240

KIT See Illustration PRESSURE RELEASE KIT/ B17257 FRONT AUX. PRESSURE RELEASE
