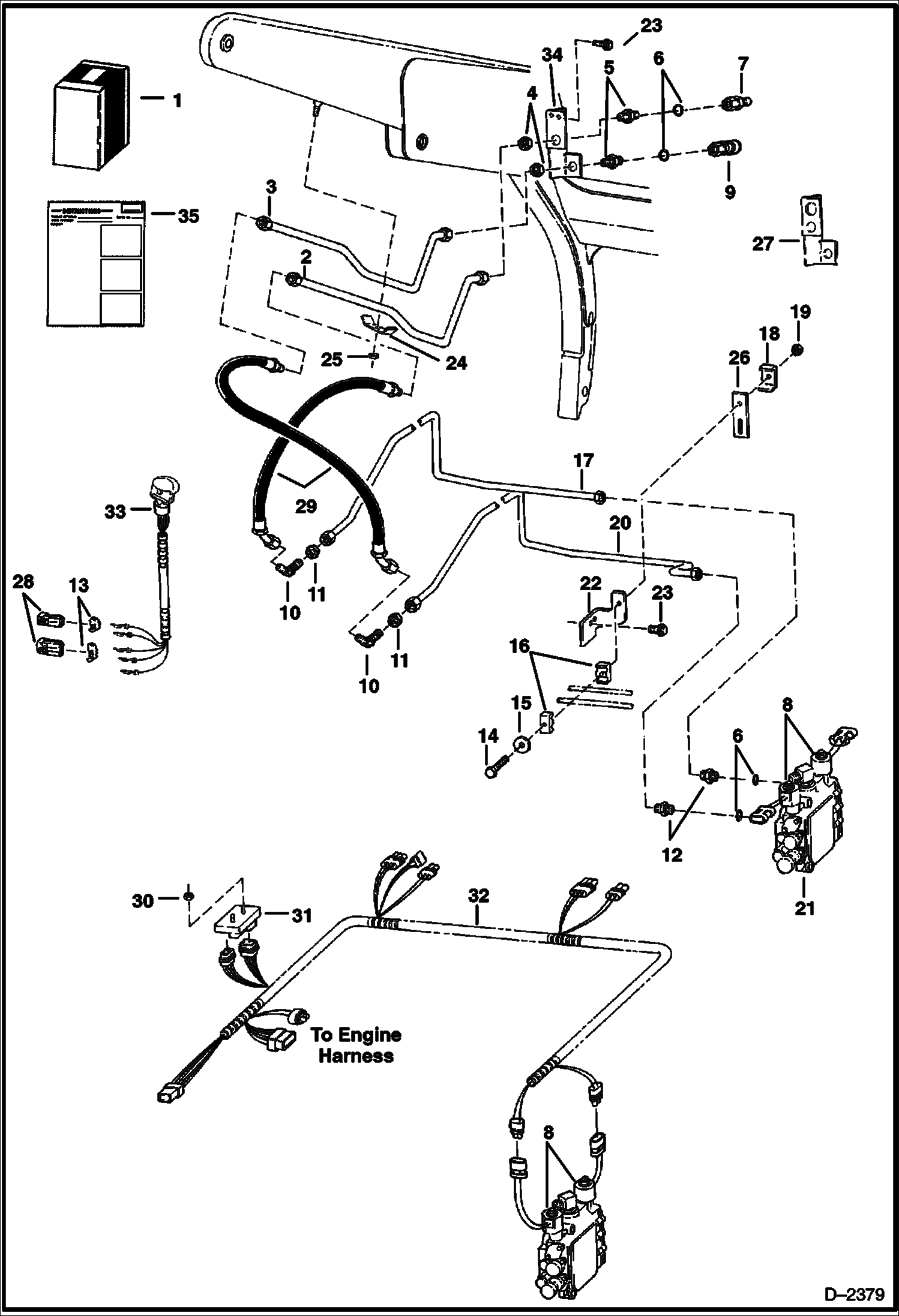

Запчасти Bobcat 700s FRONT AUXILIARY KIT (W/FF Couplers) (S/N 5127 25787-27420, 5086 93001-94508) ACCESSORIES & OPTIONS

1

KIT NLA - front aux - Ref. 2-7, 9-11, 13, 14, 18, 20 & 23-35 - Order 6712386 Kit - Was 6712091 - A

1

6712386

KIT

2

6711735

TUBE

3

6711736

TUBE

4

86F7

LOCK NUT

5

FITTING NLA - W/Ref. 6 - Was 6711625 - A

5

6812816

ADAPTER W/Ref. 6 - flat boss face

6

79K12

O RING 10

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

6717708

COIL, 14 VOLT 14 volt - Was 6665759 - A

8

6679961

NUT W/nut

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

46K8

ELBOW

10

16K8

CONNECTOR

11

86F8

NUT 5

12

ADAPTER W/Ref. 6 - Not in Kit

13

6641180

LOCK Use W/ 2-pin connector

13

6640700

LOCK 3-pin

14

17C552

BOLT

15

872229

WASHER Not in Kit

16

6701892

CLAMP Not in Kit

17

6706154

TUBE

18

6568476

CLAMP

19

85D5

NUT 5

20

6706153

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2229 NOT IN KIT

22

6704619

MOUNT

23

84G3112

BOLT 5

24

6502203

CLAMP

25

59D6

NUT

26

6702548

PAD

27

MOUNT NLA - Order Ref. 34 - Was 6711672 - A

28

6641179

CONNECTOR 2-pin

28

6640699

CONNECTOR 3-pin

29

6729153

HOSE Was 6714577 - A

30

85D4

NUT 5

31

6671669

MODULE, CONTROL AUX Was 6669529 - C

32

6710365

HARNESS

33

6680414

HANDLE ASSY. Was 6705921 - A

33

6640690

PIN

33

6641176

SEAL

34

6713850

MOUNT

35

6724526

INSTRUCTIONS
