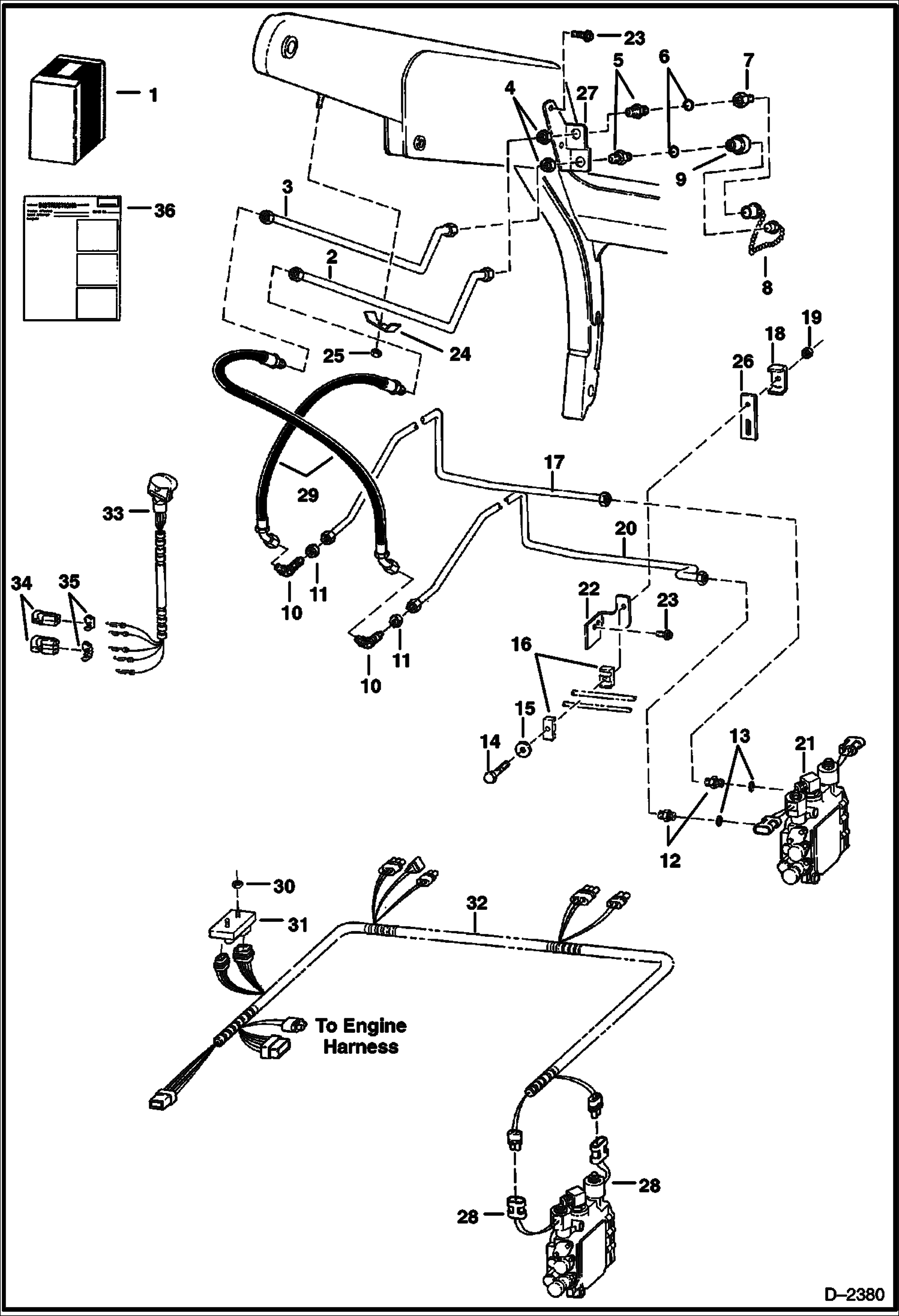

Запчасти Bobcat 700s FRONT AUXILIARY KIT (Poppet Couplers)(S/N 5127 16001-25786, 5114 76001-76618, 5086 30001-31363) ACCESSORIES & OPTIONS

1

KIT NLA - front aux Ref. 2-11, 13, 14, 18, 20 & 24-36 - Was 6709053 - A

2

6704409

TUBE

3

6704410

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR W/Ref. 6

6

79K10

O RING 10

7

6598757

COUPLER, POPPET MALE straight

8

6513709

CAP PLUG Assy. (Rubber)

8

6515167

PLUG Steel

8

6515168

CAP Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

9

6665430

BACKUP RING

10

46K8

ELBOW

11

86F8

NUT 5

12

ADAPTER W/Ref. 13 - Not in Kit

13

79K12

O RING 10

14

17C552

BOLT

15

872229

WASHER Not in Kit

16

6701892

CLAMP Not in Kit

17

6706154

TUBE

18

6568476

CLAMP

19

85D5

NUT 5 Not in Kit

20

6706153

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2229 NOT IN KIT

22

6704619

MOUNT Not in Kit

23

84G3112

BOLT 5 Not in Kit

24

6502203

CLAMP

25

59D6

NUT

26

6702548

PAD

27

6705700

MOUNT

28

6717708

COIL, 14 VOLT 14 volt - Was 6665759 - A

28

6679961

NUT w/nut

29

6729153

HOSE Was 6714577 - A

30

85D4

NUT 5

31

6671669

MODULE, CONTROL AUX Was 6669529 - C

32

6710365

HARNESS Was 6707676 - A

33

6680414

HANDLE ASSY. Was 6705921 - A

33

6640690

PIN

33

6641176

SEAL

34

6641179

CONNECTOR 2-pin

34

6640699

CONNECTOR 3-pin

35

6641180

LOCK Use W/ 2-pin connector

35

6640700

LOCK 3-pin

36

6724529

INSTRUCTIONS - Was 6724285 - A
