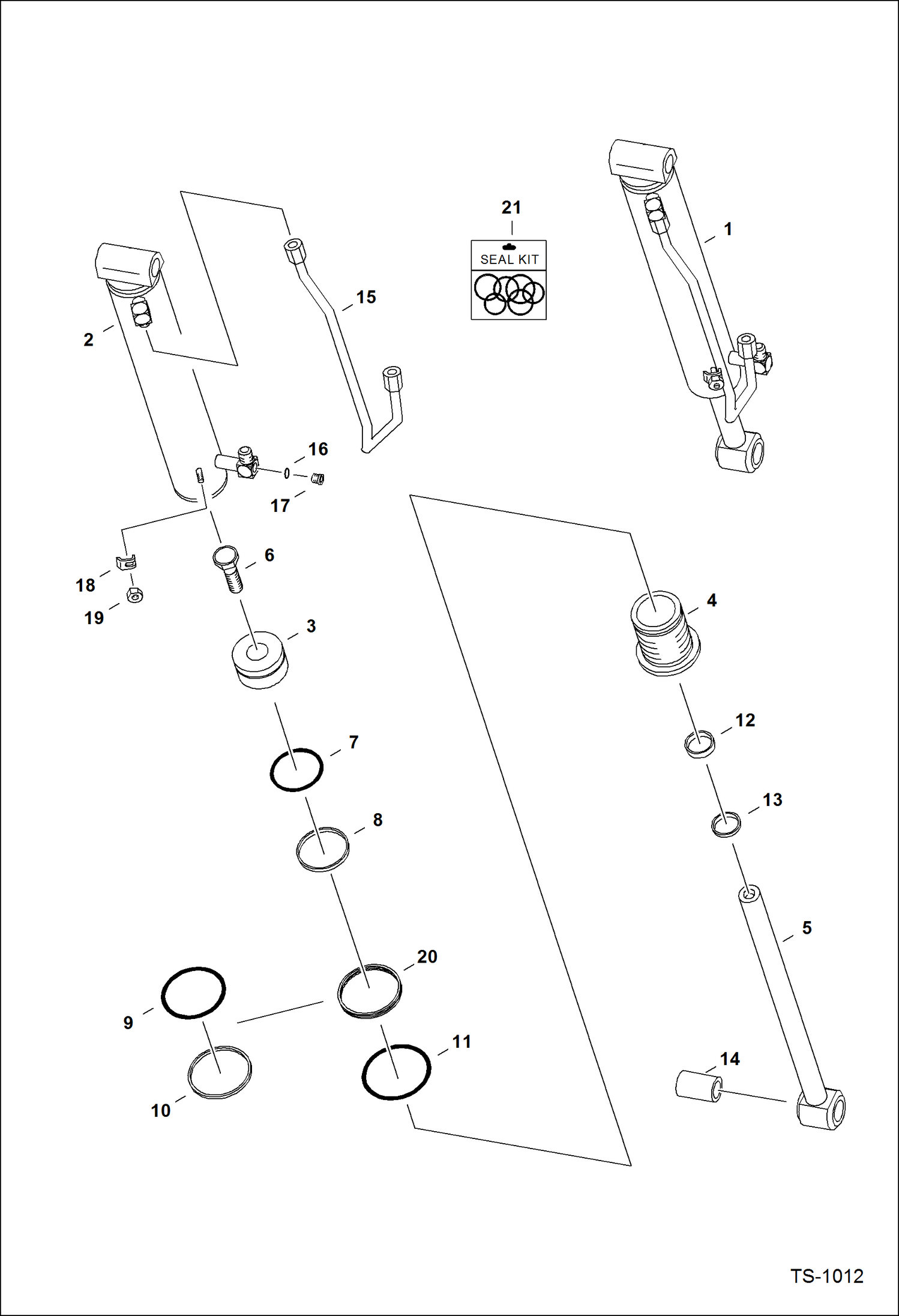

Запчасти Bobcat 700s TILT CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - tilt - Ref. 2-19 - Order 6804692 Cylinder - Before ordering repair parts, make sure that this is the correct style cylinder - Was 6530912 - A

1

CYLINDER See Illustration TILT CYLINDER/ TS1127A NLA - tilt - Ref. 2-19 - Order 6804692 Cylinder - Was 6539078 - B

2

CASE See Illustration TILT CYLINDER/ TS1127A NLA - Order 6804692 Cylinder - Was 6530921 - A

3

PISTON NLA - Order 6804692 - Was 6531361 - A

4

6529680

HEAD

5

ROD See Illustration TILT CYLINDER/ TS1127A NLA - Order 6804692 Cylinder - W/Ref. 14 - Was 6534489 - A

6

6539091

BOLT Was 6536349 - B

7

6513466

PISTON RG piston

8

25K30226

O RING 10 Was 54K30226 - B

9

58K234

O RING 10 Was 54K40300 - B

10

73K234

BACK-UP RING back-up - Was 80K234 - A

11

82K236

O-RING Was 58K000236B - A

12

6667326

SEAL Was 6538141 - A

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

6589665

BUSHING Was 6534387 - A

15

6530913

TUBE

16

79K6

O RING 10 flat boss face

16

95K6

O'RING tapered boss face

17

90K5

PLUG flat boss face - W/Ref. 16 - Was 47K000005B - A

17

90KV5

PLUG tapered boss face - W/Ref. 16

18

6562266

CLAMP

19

85D6

NUT, 5

20

7008354

SEAL, QUAD

21

7135550

SEAL KIT Ref. 7-13 - Was 6803326 - A
