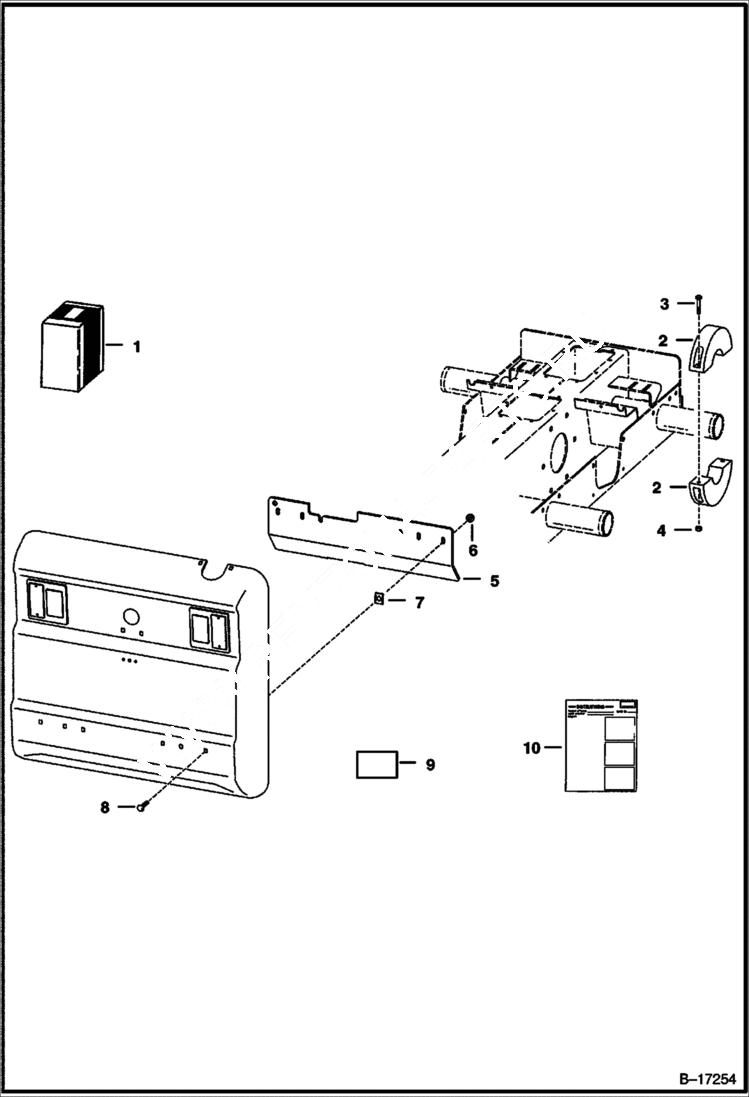

Запчасти Bobcat 700s EUROPEAN ACCESSORIES (Counterweight Kit ) (1400 lb. - For One Piece Rear Door) ACCESSORIES & OPTIONS

1

6714932

KIT, COUNTERWEIGHT counterweight

2

6714361

COUNTERWEIGHT, AXLE front - 71,6 kg (38.7 lb) - 114,3 mm (4.5'') wide

3

17C640

BOLT 5

4

61D6

NUT 5

5

6714053

WEIGHT

6

57D6

NUT 5

7

1612281

SPRINGNUT spring

8

37C628

BOLT

9

6703586

DECAL 1400 lb. - Not in Kit

9

6707481

DECAL 1600 lb. - Not in Kit

9

6705102

DECAL 1800 lb. - Not in Kit

10

6900410

INSTRUCTIONS
