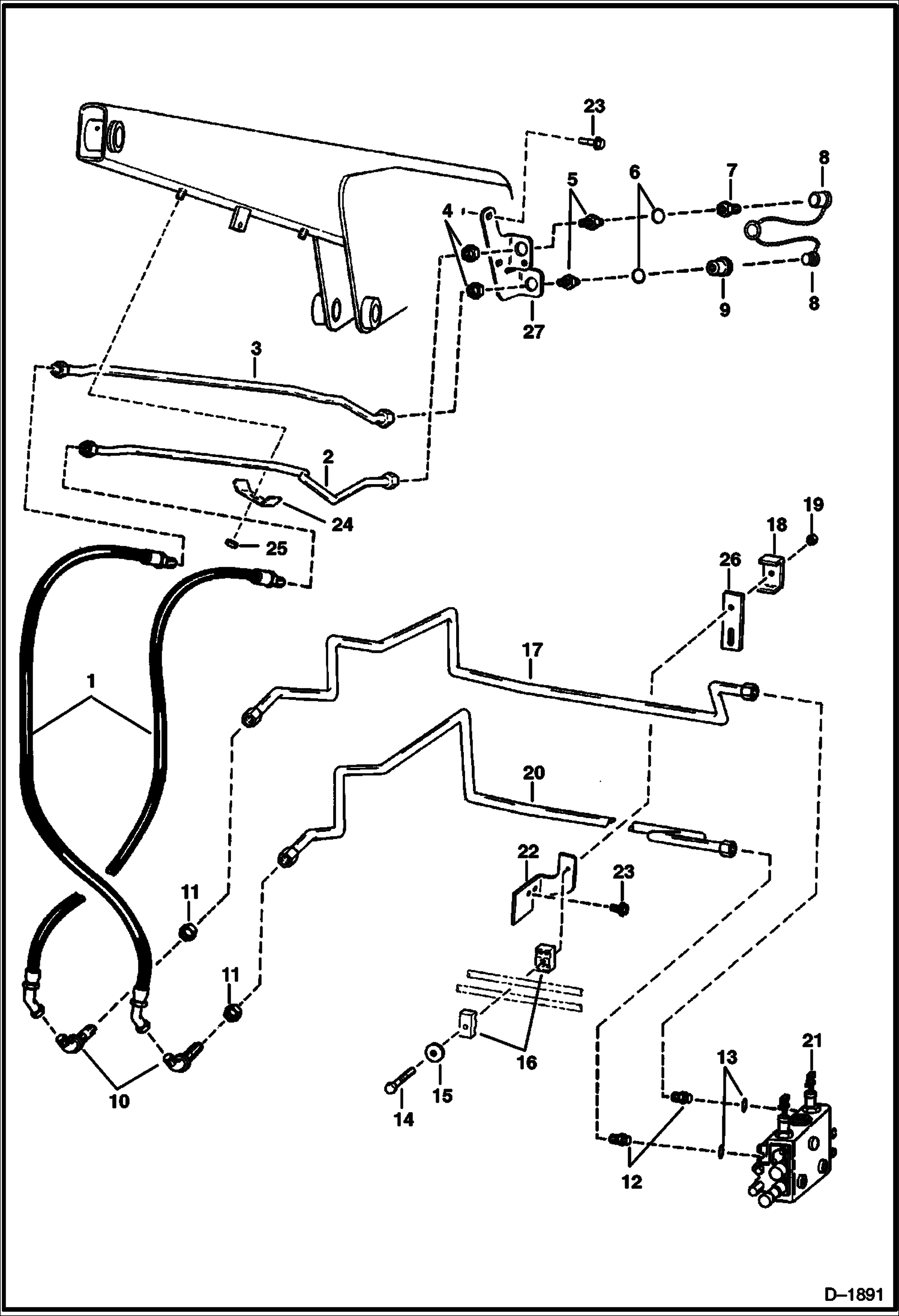

Запчасти Bobcat 700s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6729153

HOSE Was 6714577 - A

2

6701292

TUBE

2

6704409

TUBE

3

6701293

TUBE

3

6704410

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR W/Ref. 6

6

79K10

O RING 10

7

6598757

COUPLER, POPPET MALE straight

8

6513709

CAP PLUG Assy. (Rubber)

8

6515167

PLUG Steel

8

6515168

CAP Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

9

6665430

BACKUP RING

10

46K8

ELBOW

11

86F8

NUT 5

12

15K8

FITTING W/Ref. 13

13

79K12

O RING 10

14

17C552

BOLT Was 17C000548B - B

15

872229

WASHER

16

6701892

CLAMP Was 6577696 - A

17

TUBE NLA - Order 6706154 Tube - Was 6703009 - A

17

6706154

TUBE

18

6568476

CLAMP

19

85D5

NUT 5

20

TUBE NLA - Order 6706153 Tube - Was 6703008 - A

20

6706153

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E1886

22

6704619

MOUNT Was 6577700 - A

23

84G3112

BOLT 5

24

6502203

CLAMP

25

59D6

NUT Was 85D000006B - B

26

6702548

PAD

27

6705700

MOUNT LH auxillary mount
