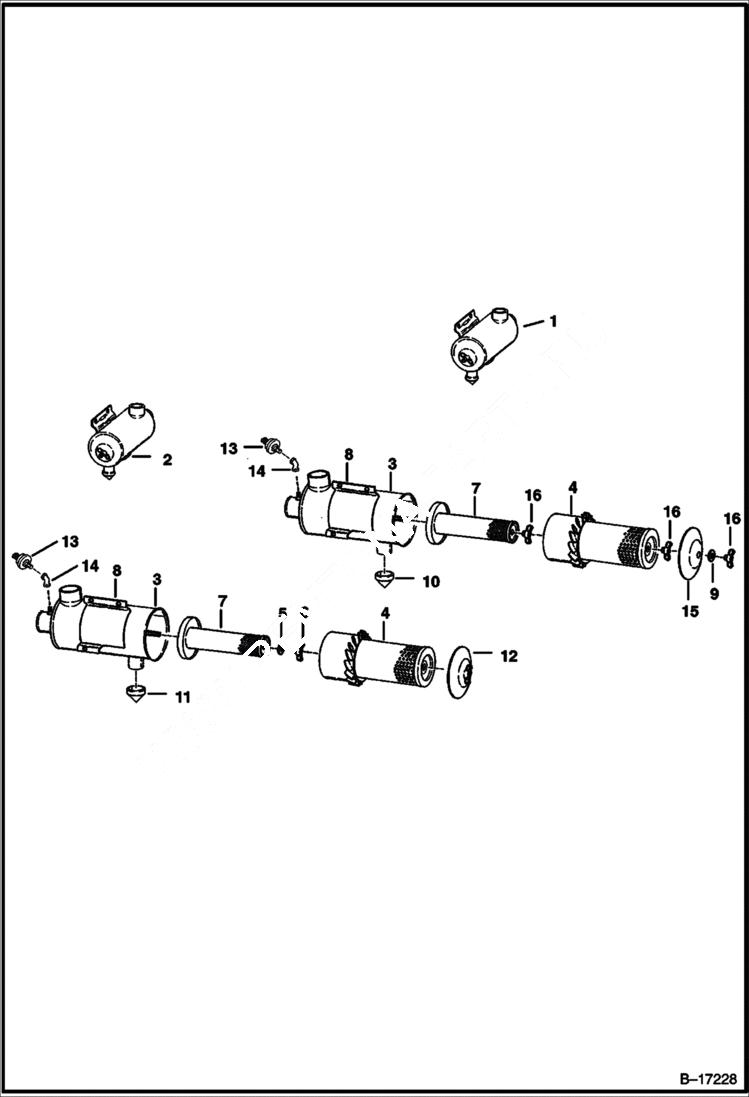

Запчасти Bobcat 700s AIR CLEANER REPLACEMENT ENGINE

1

6700711

AIR CLEANER W/ 1.5'' (38,1 mm) evacuator valve - Ref. 3, 4, 7-10, 15 & 16 - Was 6661400 - A

2

AIR CLEANER NLA - W/ 2'' (50,8 mm) evacuator valve - Ref. 3-8 & 11-14 - Order Ref. 1 - Was 6653506 - A

3

TANK NLA

4

6598492

ELEMENT

5

SHIM NLA - Was 888527 - A

6

3291290

NUT

7

6598362

ELEMENT

8

866028

CLAMP

9

6661244

WASHER

10

6655938

VALVE, EVACUATOR 38 mm (1.5'') ID

11

6655937

VALVE, EVCACUATOR 2'' (50,8 mm) ID

12

6630941

COVER W/wing nut

13

6665371

SWITCH condition indicator

14

6725502

ELBOW Was 23F000001B - A

15

6661242

COVER

16

6661243

WING NUT
