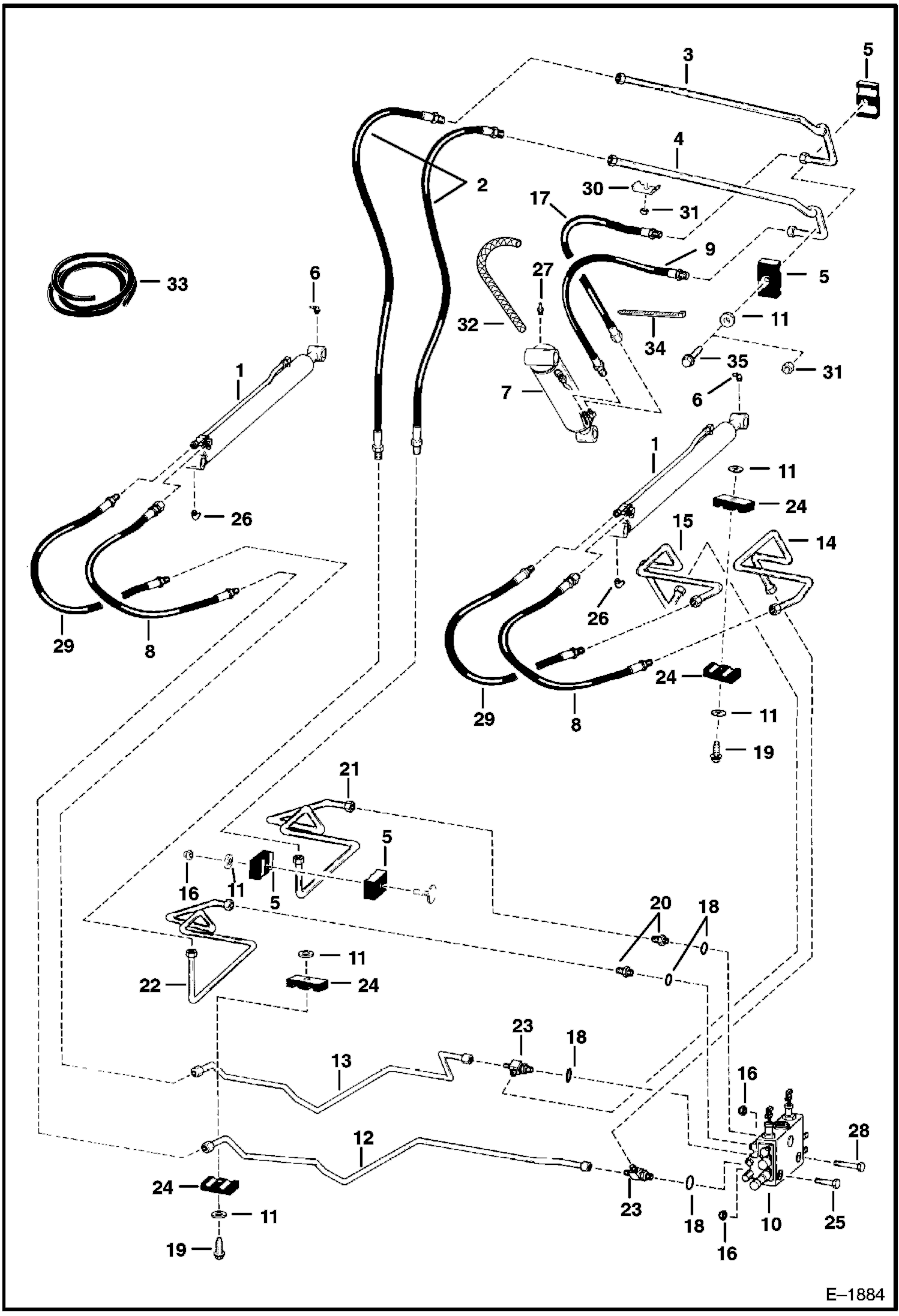

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (S/N 5086 20307 & Below) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B12337 lift

2

6577669

HOSE

3

TUBE NLA - Order 6703244 Tube & 6703245 Tube - Was 6577695 - A

3

6703244

TUBE

4

TUBE NLA - Order 6703244 Tube & 6703245 Tube - Was 6577694 - A

4

6703245

TUBE

5

6701893

CLAMP Was 6577697 - A

6

12H15

FITTING, GREASE 5

7

CYLINDER See Illustration TILT CYLINDER/ TS1012 tilt

8

6577671

HOSE, HYD ASSY

9

6704335

HOSE Was 6578774 - A

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E1886

11

872229

WASHER

12

6703011

TUBE Was 6701289 - A

13

6703010

TUBE Was 6701288 - A

14

6577684

TUBE

15

6577683

TUBE

16

85D5

NUT 5

17

6704336

HOSE Was 6578773 - A

18

79K10

O RING 10

19

84G3732

BOLT Was 84G003728B - B

20

15K7

FITTING W/Ref. 18

21

6577685

TUBE

22

6577686

TUBE

23

6578183

TEE W/Ref. 18

24

6701892

CLAMP Was 6701551 - A

25

17C532

BOLT 5

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

17C540

BOLT

29

6718954

HOSE Was 6578808 - A

30

6502203

CLAMP

31

59D6

NUT Was 85D000006B - B

32

COVER NLA - Order Ref. 33 - 18'' (457,2 mm) long

33

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

34

6610510

TIE Was 1715312B - A

35

84G3724

BOLT
