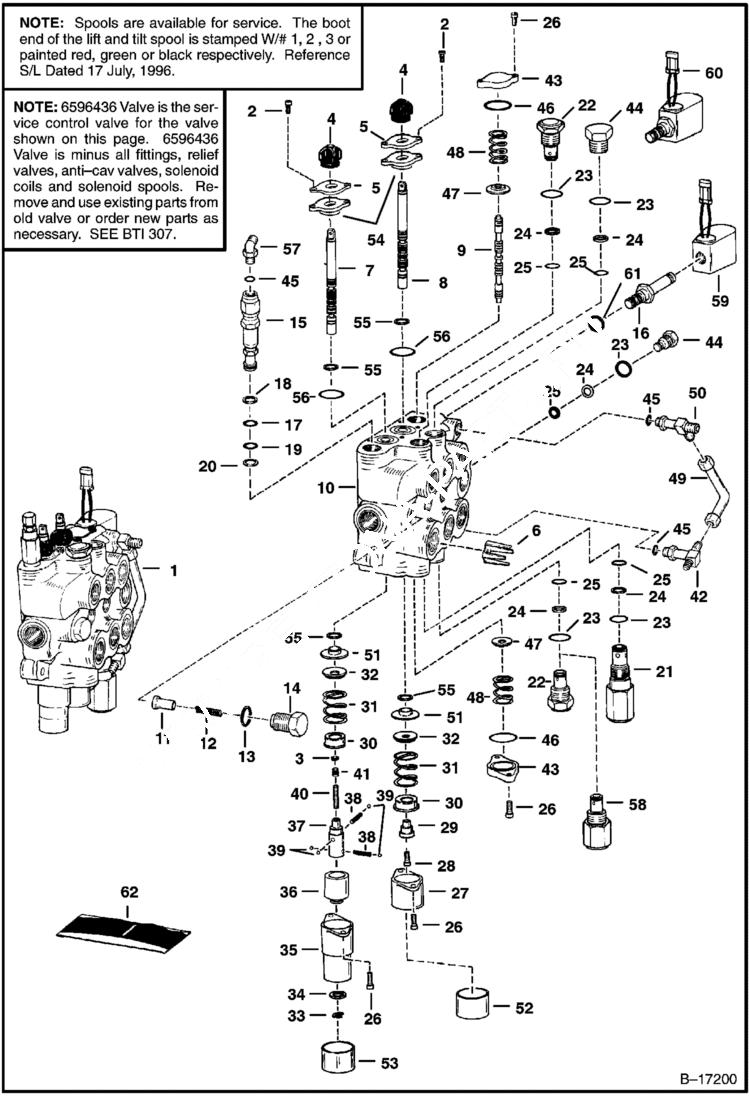

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS (Hydraulic Control Valve) (S/N 5127 24459 & Above, 5114 76462 & Above) HIGH FLOW HYDRAULICS

1

VALVE NLA - Ref. 2 - 57 - W/Short spools & fittings - Before ordering repair parts, make sure that this is the correct style Valve - Also Ref. Valve on Page 265 & 269 - Valve shown here uses flat boot

2

29G412

BOLT Was 6588163 - B

3

54K20002

O'RING 10

4

6587763

BOOT

5

6589564

RETAINER flat

6

6534630

RESTRICTOR .134/.141

7

6666588

SPOOL lift - #1 or red - SEE NOTE

7

6666589

SPOOL lift - #2 or green - SEE NOTE

7

6666590

SPOOL lift - #3 or black - SEE NOTE

8

6666591

SPOOL tilt - #1 or red - SEE NOTE

8

6666592

SPOOL tilt - #2 or green - SEE NOTE

8

6666593

SPOOL tilt - #3 or black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE - Was 6589663 - B

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6661225

VALVE main relief - W/Ref. 17 - 20 - 3250-3350 PSI

16

6665758

VALVE W/Ref. 61

17

58K017

O-RING 10

18

6665569

WASHER back-up

19

25K20016

O RING 10

20

6665570

RING glide

21

6599161

RELIEF VALVE port relief - 3400-3600 PSI - W/Ref. 23-25

22

6667549

VALVE anti-cavity check- W/Ref. 23-25 - Was 6661345 - B

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10

26

29G416

BOLT Was 6588982 - B

27

7101345

BONNET, DETENT HYD VALVE Was 6587633 - C

28

30G416

BOLT Was 6588166 - B

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

6589226

COVER, END 0.63'' flange

36

6531270

SLEEVE, DETENT lift

37

6587575

ADAPTER

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW

41

6596807

PLUG plastic - 0.46'' long - B

42

TEE NLA - W/Ref. 45 - Was 6587888 - A

42

6805696

TEE W/Ref. 45 - W/flared end O-ring

42

97K6

O RING flared end

43

6588981

END CAP

44

6592720

PLUG W/Ref. 23-25

45

79K6

O RING 10

46

58K124

O RING 10

47

6537096

WASHER

48

6588197

SPRING

49

6577690

TUBE

50

6587889

TEE W/Ref. 45

51

6595663

BUSHING

52

6662848

CAP

53

6660644

CAP

54

6589565

BUSHING seal

55

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

56

1K127

O-RING 10 Was 93K127 - A

57

18K5

ELBOW W/Ref. 45

58

6664373

VALVE optional - port relief & anti-cav. -W/Ref. 23 - 2500 PSI - use in tilt cylinder base end port

59

6717706

COIL, 10 VOLT W/nut - 10 volt - Was 6665759 - A

59

6676566

NUT

60

6653395

VALVE, SOLENOID solenoid - Ref. 16 & 57

60

6586459

SEAL KIT

61

79K7

O RING 10

62

6816250

KIT, SEAL Ref. 4, 51 & 55 - For One Spool - Was 6803605 - A

62

6632279

KIT, SEAL Ref. 17 - 20

62

6809425

SEAL KIT Ref. 13 & 23 - 25 - Was 6586461 - A

62

6816715

KIT, SEAL See BTI374 - Ref. 2-4, 6, 13, 17-20, 23-26, 41, 46, 55, 56 & 61 - Was 6596311 - A
