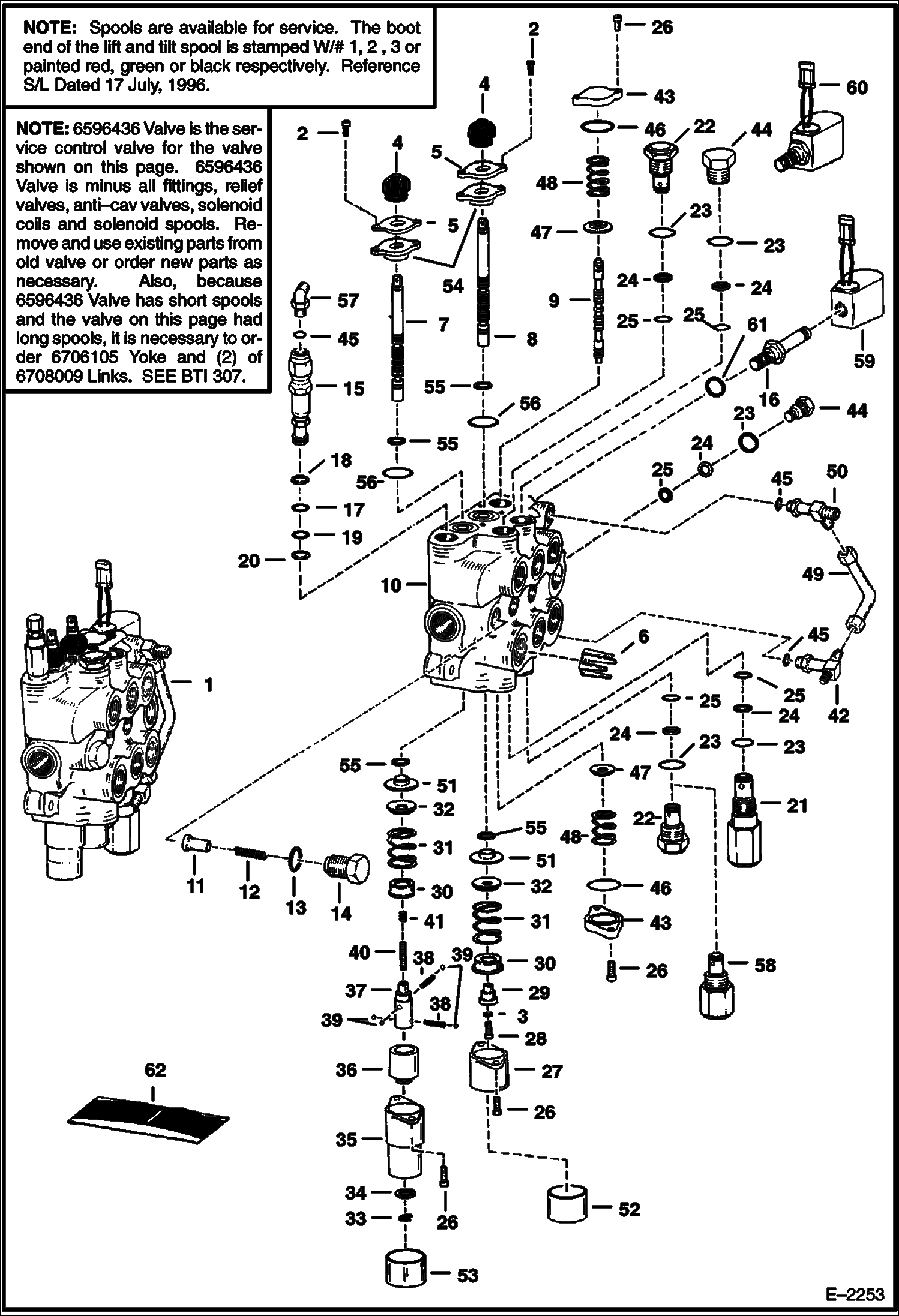

1
VALVE NLA - Ref. 2 - 57 - W/long spools & fittings - Before ordering repair parts, make sure that this is the correct style Valve - Also Ref. Valve on Page 265 & 273 - Valve shown here uses flat boot
2
6588163
SCREW
3
22E4
WASHER
4
6587763
BOOT
5
6589564
RETAINER flat
6
6534630
RESTRICTOR .134/.141
7
6666576
SPOOL lift - #1 or red - SEE NOTE - Was 6666588 - B
7
6666577
SPOOL lift - #2 or green - SEE NOTE
7
6666578
SPOOL lift - (3) black - SEE NOTE
8
6666579
SPOOL tilt - #1 or red - SEE NOTE - Was 6666591 - B,D
8
6666580
SPOOL tilt - #2 or green - SEE NOTE - Was 6666592 - B,D
8
6666581
SPOOL tilt - #3 or black - SEE NOTE - Was 6666593 - B,D
9
6588074
SPOOL auxiliary - SEE NOTE - Was 6589663 - B
10
BODY NSS
11
6592115
SEAT
12
6592117
SPRING, LOAD CHECK
13
79K8
O RING 10
14
6592116
NUT load check
15
6661225
VALVE main relief - W/Ref. 17 - 20 - 3250-3350 PSI
16
6665758
VALVE W/Ref. 61
17
58K017
O-RING 10
18
6665569
WASHER back-up
19
25K20016
O RING 10
20
6665570
RING glide
21
6599161
RELIEF VALVE port relief - 3400-3600 PSI - W/Ref. 17-20
22
6667549
VALVE anti-cavity check - W/Ref. 23-25 - Was 6661345 - B
23
79K10
O RING 10
24
80K14
BACK-UP WASHER Was 73K000014B - B
25
58K014
O-RING 10
26
6588982
SCREW
27
7101345
BONNET, DETENT HYD VALVE Was 6587633 - C
28
6588166
SCREW
29
6592109
ADAPTER
30
6592100
COLLAR
31
6587580
SPRING
32
7211397
WASHER, SPRING Was 6587523 - A
33
799119
RING
34
6592098
WASHER
35
6589226
COVER, END 0.63'' flange
36
6531270
SLEEVE, DETENT lift
37
6587575
ADAPTER
38
6592107
SPRING
39
6592105
BALL
40
6586918
SCREW
41
PLUG NLA - plastic - Order 6596807 Plug & 54K020002B O-ring - Was 6592752 - A
41
6596807
PLUG plastic - 0.46'' long
41
54K20002
O'RING 10
42
TEE NLA - W/O flared end O-ring - W/Ref. 45 - Was 6587888 - A
42
6805696
TEE W/Ref. 45 - W/flared end O-ring
42
97K6
O RING flared end
43
6588981
END CAP
44
6592720
PLUG W/Ref. 23-25
45
79K6
O RING 10
46
58K124
O RING 10
47
6537096
WASHER
48
6588197
SPRING
49
6577690
TUBE
50
TEE NLA - W/Ref. 45 - W/O flared end O-rings - Was 6587889 - A
50
6805243
TEE W/Ref. 45 - W/ flared end O-rings
50
97K6
O RING flared end
51
6595663
BUSHING
52
6662848
CAP
53
6660644
CAP
54
6589565
BUSHING seal
55
6683724
COUPLER,6G-8FJX90S lip - Was 6665846 - A
56
1K127
O-RING 10 Was 93K127 - A
57
18K5
ELBOW W/Ref. 45
58
6664373
VALVE optional - port relief & anti-cav. -W/Ref. 23 - 2500 PSI - use in tilt cylinder base end port
59
6717706
COIL, 10 VOLT W/nut - 10 volt - Was 6665759 - A
59
6676566
NUT
60
6653395
VALVE, SOLENOID solenoid - Ref. 16 & 57
60
6586459
SEAL KIT
61
79K7
O RING 10
62
6816250
KIT, SEAL Ref. 4, 51 & 55 - For One Spool - Was 6803605 - A
62
6632279
KIT, SEAL Ref. 17 - 20
62
6809425
SEAL KIT Ref. 13 & 23 - 25 - Was 6586461 - A
62
6816715
KIT, SEAL See BTI374 - Ref. 4, 13, 17-20, 23-25, 41, 45, 46, 55, 56 & 61 - Was 6596311 - A
