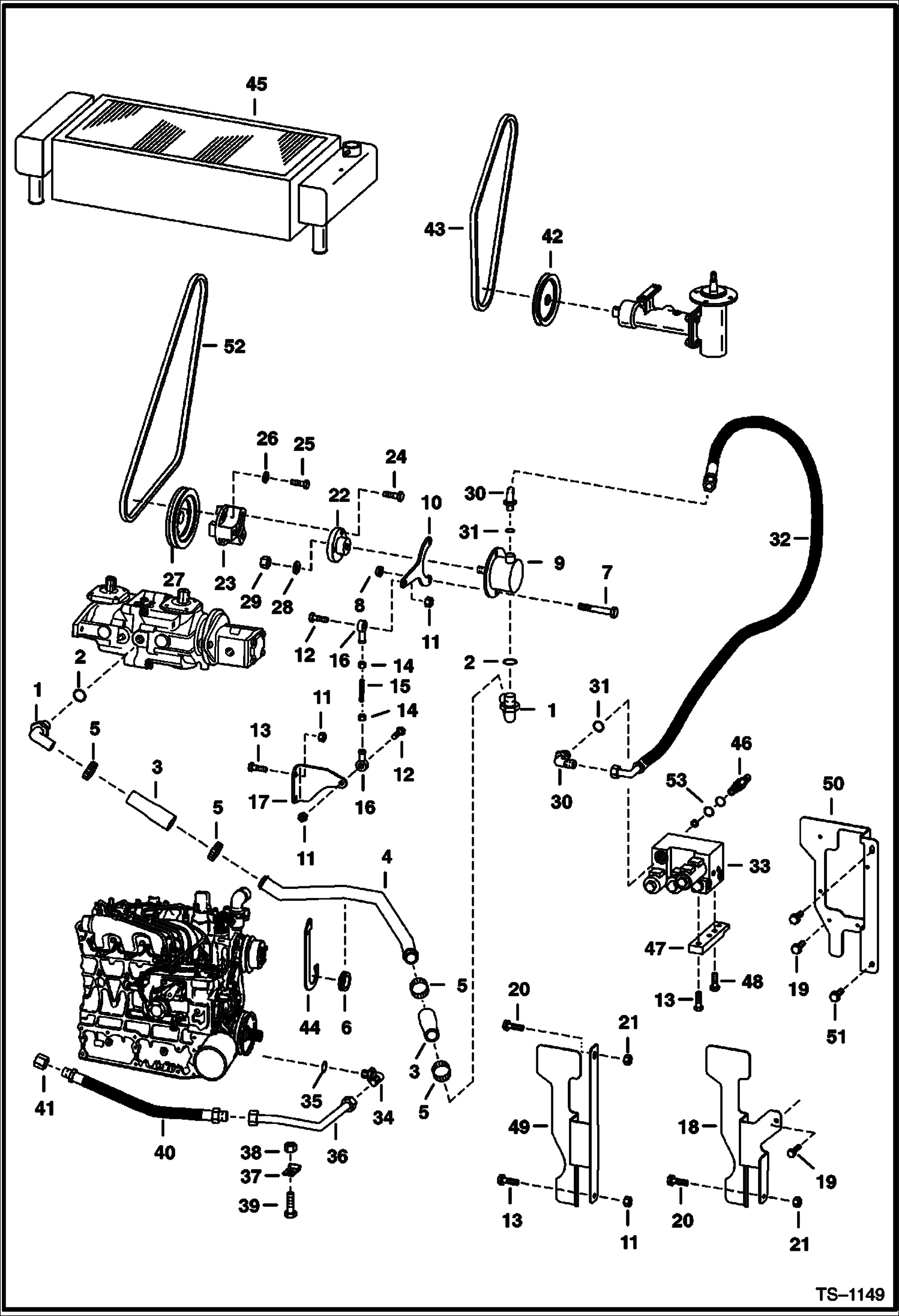

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS HIGH FLOW HYDRAULICS

1

1321499

FITTING W/Ref. 2 - Was 6567884 - A

2

79K16

O RING 10

3

6703885

HOSE

4

6705161

TUBE

5

42H16

CLAMP, HOSE 5

6

6705164

GROMMET

7

17C724

BOLT

8

83D7

NUT

9

6667382

PUMP See Illustration HIGH FLOW HYDRAULICS/ B13927 GEAR - WAS 6662693 - A

10

6703722

ARM torgue

11

85D6

NUT, 5

12

17C620

BOLT

13

17C616

BOLT 5

14

62D6

NUT 5

15

6703719

ROD

16

6512954

ROD END R.H. threads

17

6704016

MOUNT

18

SHIELD NLA - Order Ref. 11, 13, 20, 21, & 49 - Was 6704928 - A

19

84G3712

BOLT 5

20

35C516

BOLT 10

21

83D5

NUT 5

22

6705129

COUPLER

23

6705112

COUPLER

24

17C720

BOLT

25

17C524

BOLT

26

25E15

WASHER

27

6705780

PULLEY

28

25E21

WASHER 5

29

62D8

NUT

30

17K7

ELBOW W/Ref. 31

31

79K10

O RING 10

32

6705497

HOSE

33

6662695

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1144 CONTROL- W/Ref. 46

34

763818

ELBOW W/Ref. 35

35

79K12

O RING 10

36

6705436

TUBE

37

30H40

CLAMP

38

85D8

NUT, 5

39

17C816

BOLT

40

6705442

HOSE

41

36K7

FITTING

42

6703483

PULLEY, FAN DRIVE IDLER 5.25'' (133,4 mm) OD

43

6704607

BELT, FAN 40.25'' (1022,5 mm) long

44

6705168

MOUNT

45

RADIATOR See Illustration COOLING SYSTEM/ B17202

46

VALVE NLA - relief - pressure preset at factory - Was 6658838 - A

46

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

47

6705471

MOUNT

48

35C610

BOLT 5

49

6708307

SHIELD Use W/ two piece rear door

50

6714890

SHIELD Use W/ one piece rear door

50

6731060

SHIELD Use W/ one piece rear door - Was 6717812 - A

51

84G3716

SCREW 5

52

6704720

BELT, ALT See Illustration ENGINE & ATTACHING PARTS/ B17205

53

6659574

SEAL KIT
