Запчасти Bobcat 700s TILT LOCK VALVE (S/N 512727420 & Below, 508694508 & Below) HYDRAULIC SYSTEM

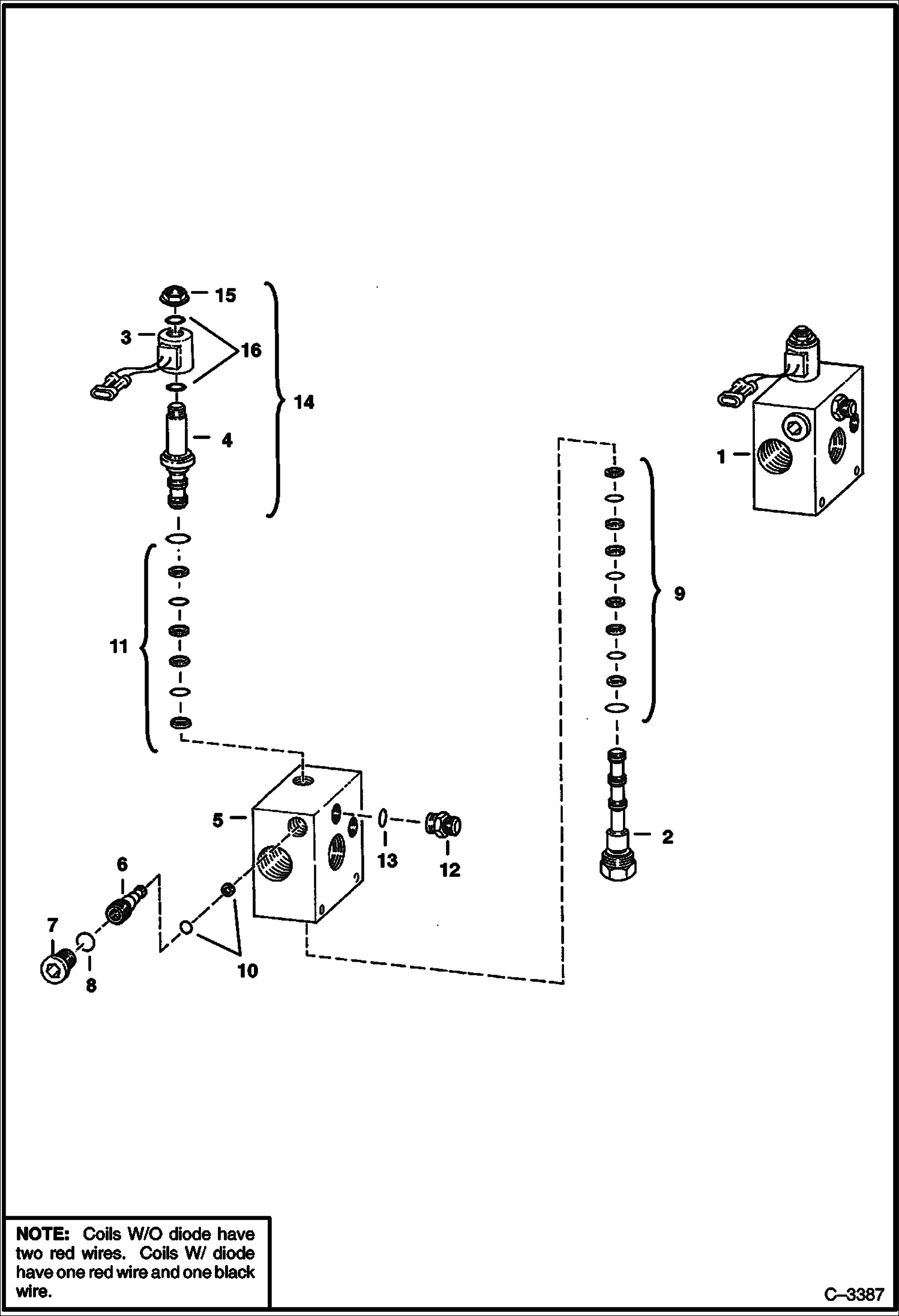

Схема запчастей Bobcat 700s - TILT LOCK VALVE (S/N 512727420 & Below, 508694508 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6664849

VALVE Ref. 2-16

2

6665610

VALVE

3

COIL NLA - W/O diode - Was 6667138 - A

3

6671025

COIL W/ diode - SEE NOTE

4

6667687

VALVE, STEM SOLENOID Was 6665004 - A

5

BLOCK NSS

6

6665609

CHECK VALVE

7

6667127

PLUG

8

95K4

O-RING Was 79K000004B - B

9

6665612

SEAL KIT

10

6665611

SEAL KIT

11

6665487

SEAL KIT

12

6665489

ADAPTER filter

13

6667132

O-RING

14

SOLENOID NLA - W/O diode - Was 6667157 - A

14

6672471

VALVE, SOLENOID W/diode - Was 6672456 - A

15

6668820

NUT

16

6669076

O-RING

Выбрано товаров: 18
