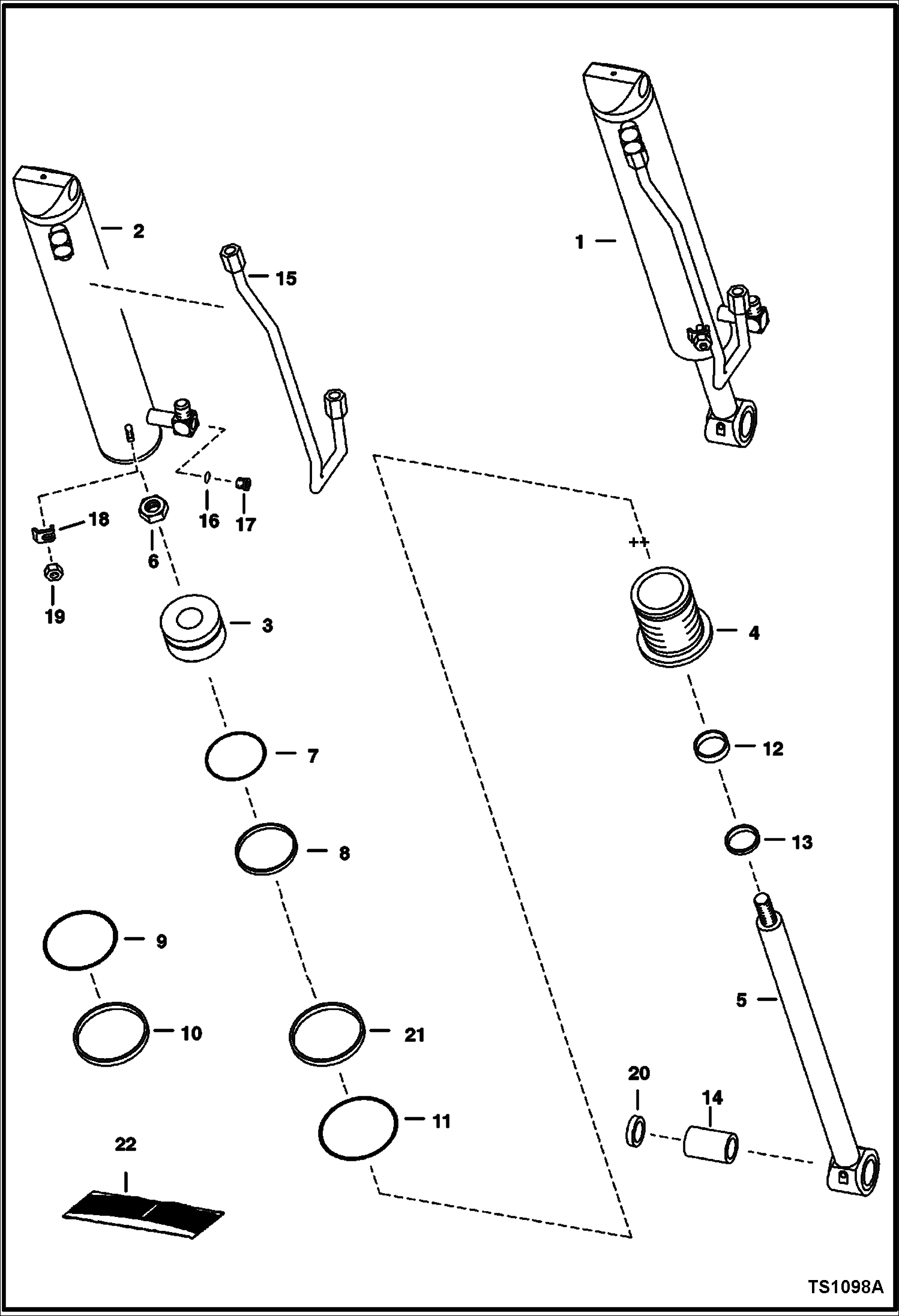

Запчасти Bobcat 700s TILT CYLINDER (S/N 515811001 - 29999, 516211001 - 19999) HYDRAULIC SYSTEM

1

6804630

CYLINDER tilt - Ref. 2-19

2

6804633

CASE 89 mm (3.5'') ID

3

6804632

PISTON 28,6 mm (1.125'') ID

4

6539934

HEAD

5

6804631

SHAFT, ROD CYL TILT 38 mm (1.5'') OD - W/Ref. 14 - W/grease fitting hole

6

6810539

NUT Was 6804592 - A

7

25K30300

O RING 10 Was 54K30300 - A

8

1530265

PISTON SEAL piston

9

O RING 10 NLA - Order Ref. 21 - Was 58K338 - B

10

RING NLA - back-up - Order Ref. 21 - Was 73K338 - B

11

82K238

O-RING Was 58K000238B - A

12

6667326

SEAL

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

6805150

BUSHING, PRESS FIT wear - W/grease fitting hole

15

6586586

TUBELINE, HYD

16

95K6

O'RING tapered boss face

16

75K6

O-RING flat boss face

16

75K7

O-RING flat boss face

17

PLUG NLA - W/Ref. 16 - tapered boss face - allen socket head - Was 90KV00005B - A

17

90K5

PLUG W/Ref. 16 (75K-6 O-Ring) - flat boss face - allen socket head

17

6812171

PLUG W/Ref. 16 (75K-6 O-Ring) - flat boss face - hex head - .5625'' threads

17

6816855

PLUG W/Ref. 16 (75K-7 O-Ring) - flat boss face - hex head - .625'' threads

18

6562266

CLAMP

19

95D6

NUT Was 91D000006B - A

20

6654117

SEAL, OIL 51 mm (2'') OD

20

225855

SEAL, OIL 10 38 mm (1.5'') OD

21

7008353

SEAL, QUAD

22

7196894

KIT, SEAL Ref. 6-8, 11-13 & 21 - Was 7135555 - A
