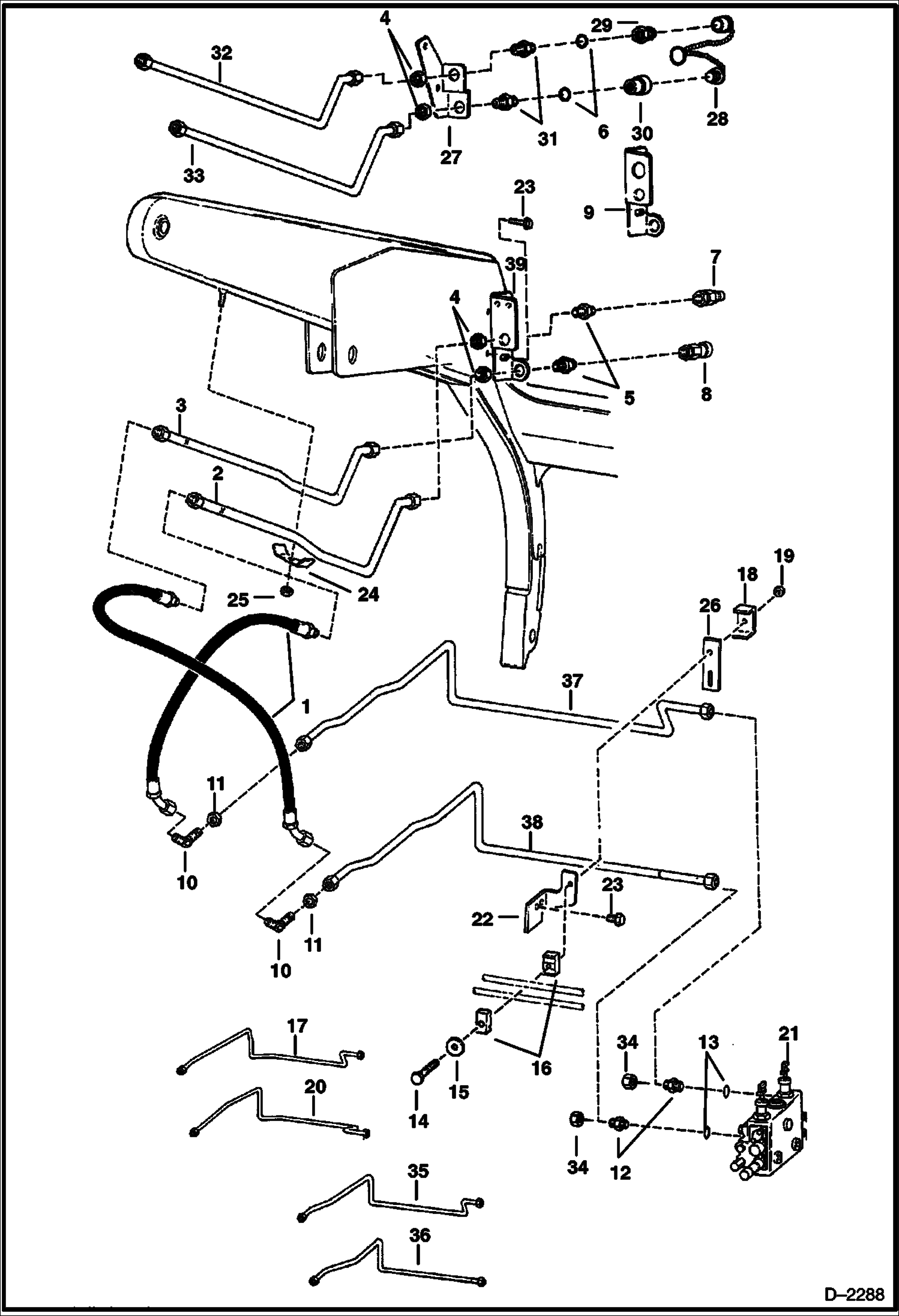

Запчасти Bobcat 700s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6729153

HOSE Was 6714577 - A

2

6711735

TUBE

3

6711736

TUBE

4

86F7

LOCK NUT

5

FITTING NLA - W/Ref. 13 - flat boss face - Was 6711625 - A

5

CONNECTOR NLA - W/Ref. 13 - flat boss face - Was 6715185 - A

5

97K10

O-RING 10 flared end

5

6812816

ADAPTER W/Ref. 13 - flat boss face

6

79K10

O RING 10

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

MOUNT NLA - for FF couplers - Order Ref. 39 - Was 6711672 - A

10

46K8

ELBOW flat boss face

10

ELBOW NLA - tapered boss face - Was 46KN00008B - A

10

97K12

O'RING flared end

11

86F8

NUT 5

12

15K8

FITTING W/Ref. 13 - flat boss face

12

15KB1212

FITTING, HYD CONNECTOR W/Ref. 13 - tapered boss face - Was 15KN00008B - A

12

97K12

O'RING flared end

13

79K12

O RING 10 flat boss face

13

99K12

O RING tapered boss face

14

17C552

BOLT

15

872229

WASHER

16

6701892

CLAMP

17

6706154

TUBE

18

6568476

CLAMP

19

85D5

NUT 5

20

6706153

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2229

22

6704619

MOUNT

23

84G3112

BOLT 5

24

6502203

CLAMP

25

59D6

NUT

26

6702548

PAD

27

6705700

MOUNT for poppet couplers

28

6513709

CAP PLUG Assy. (Rubber)

28

6515167

PLUG Steel

28

6515168

CAP Steel

29

6598757

COUPLER, POPPET MALE straight

30

6598758

COUPLER, POPPET FEMALE straight

30

48K16

O RING 10

30

6665430

BACKUP RING

31

45K7

CONNECTR W/Ref. 6

32

6704409

TUBE

33

6704410

TUBE

34

36K8

CAP

35

TUBE NLA - Order Ref. 37 & 38 - Was 6710575 - A

36

TUBE NLA - Order Ref. 37 & 38 - Was 6710579 - A

37

6713754

TUBE

38

6713755

TUBE

39

6713850

MOUNT
